On-Vehicle Inspection

BRAKE CONTROL: STOP LIGHT CONTROL RELAY: ON-VEHICLE INSPECTION

1. INSPECT STOP LIGHT CONTROL (BRK-LP) RELAY

(a) Remove the stop light control (BRK-LP) relay.

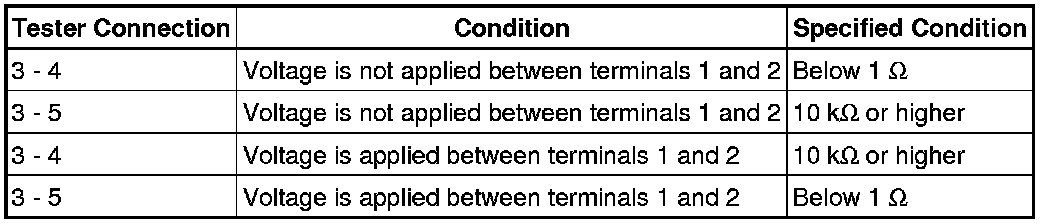

(b) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the value is not as specified, replace the stop light control (BRK-LP) relay.
