Symptom Related Diagnostic Procedures

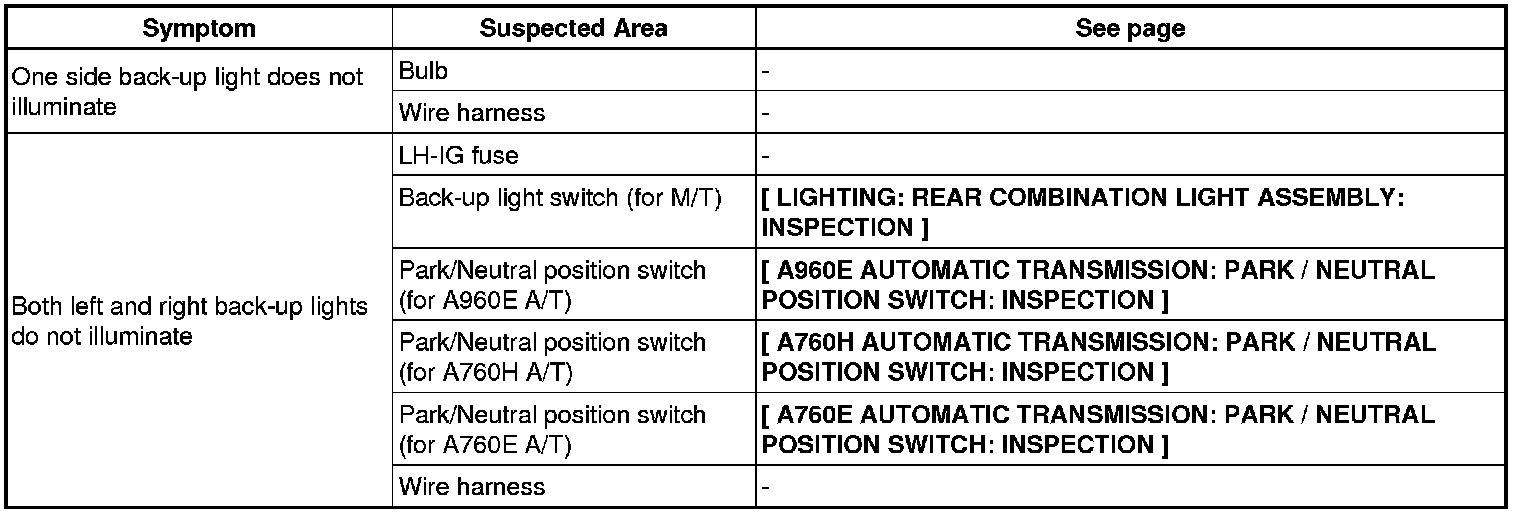

LIGHTING: LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE

Back-up light system:
