Problem Symptoms Table
METER: METER / GAUGE SYSTEM: PROBLEM SYMPTOMS TABLE

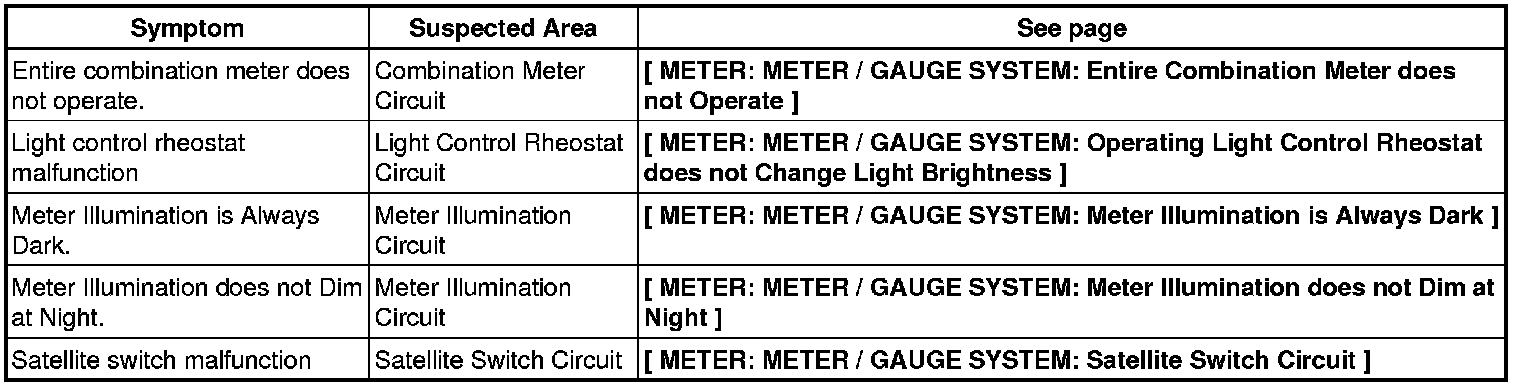

WHOLE SYSTEM:

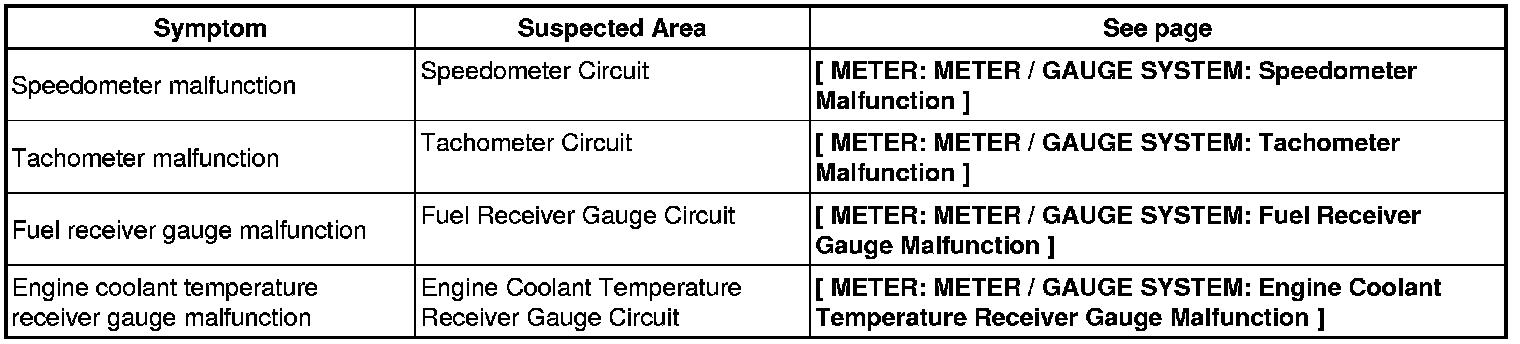

METER GAUGES:

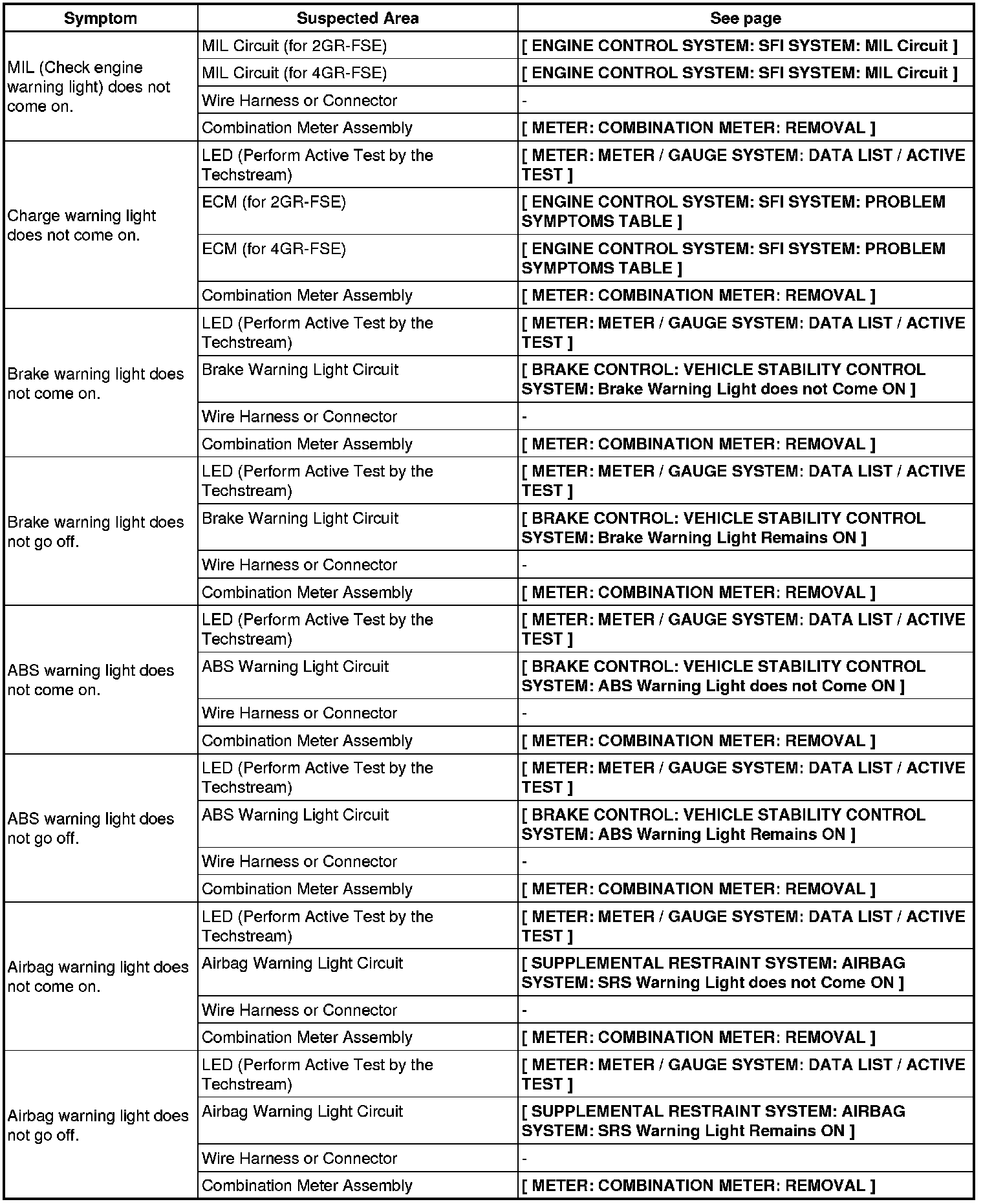

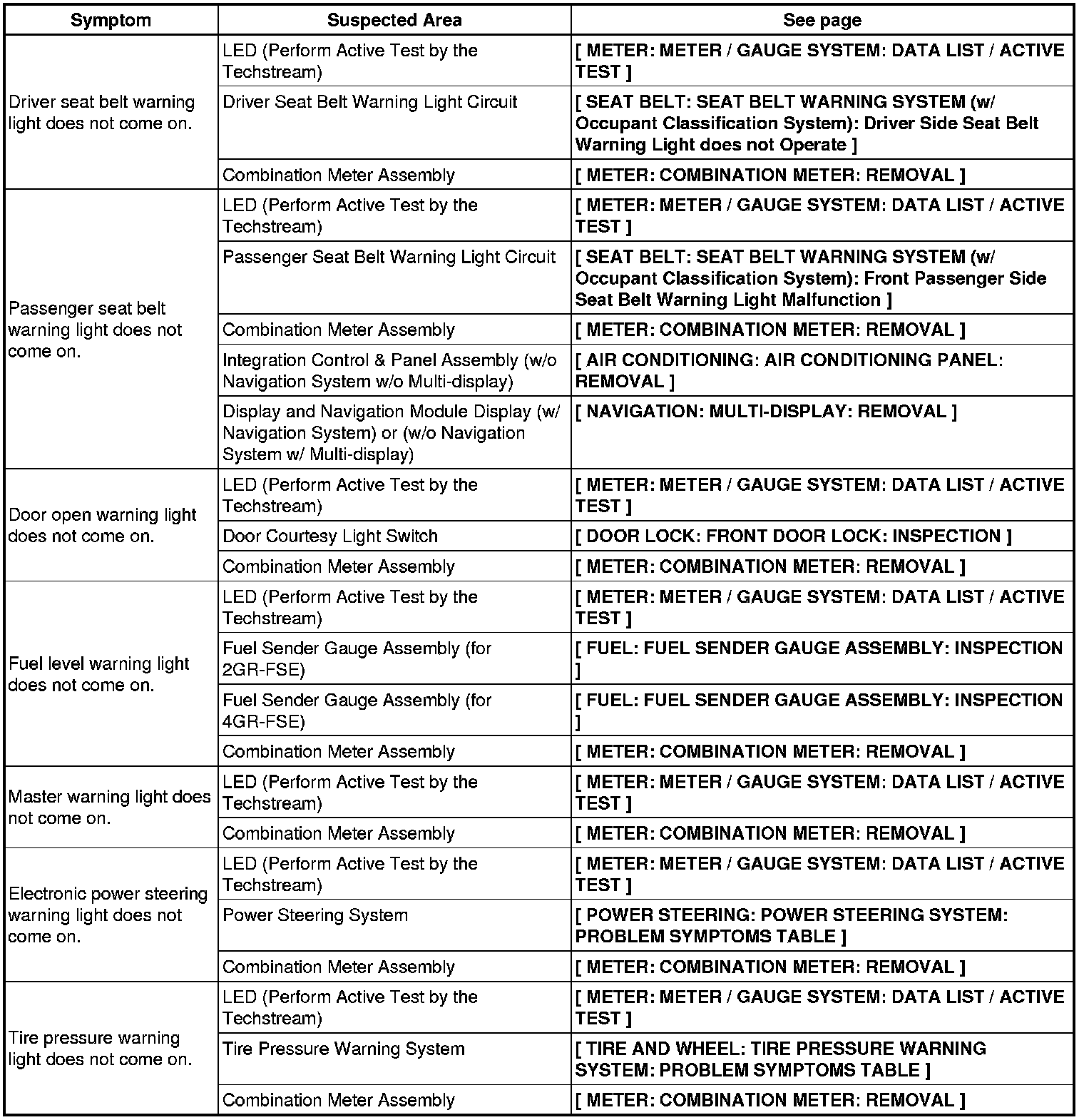

WARNING LIGHTS:

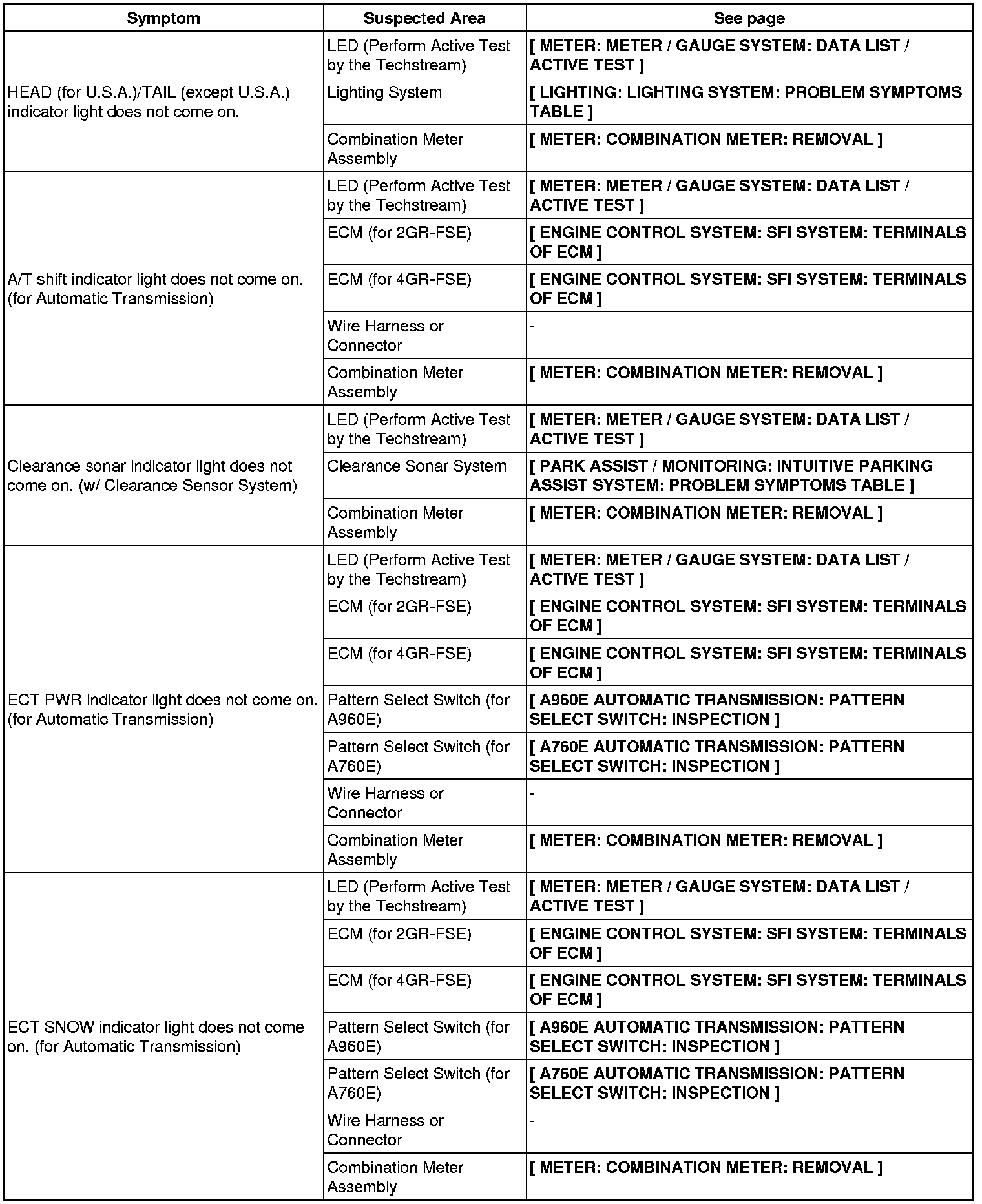

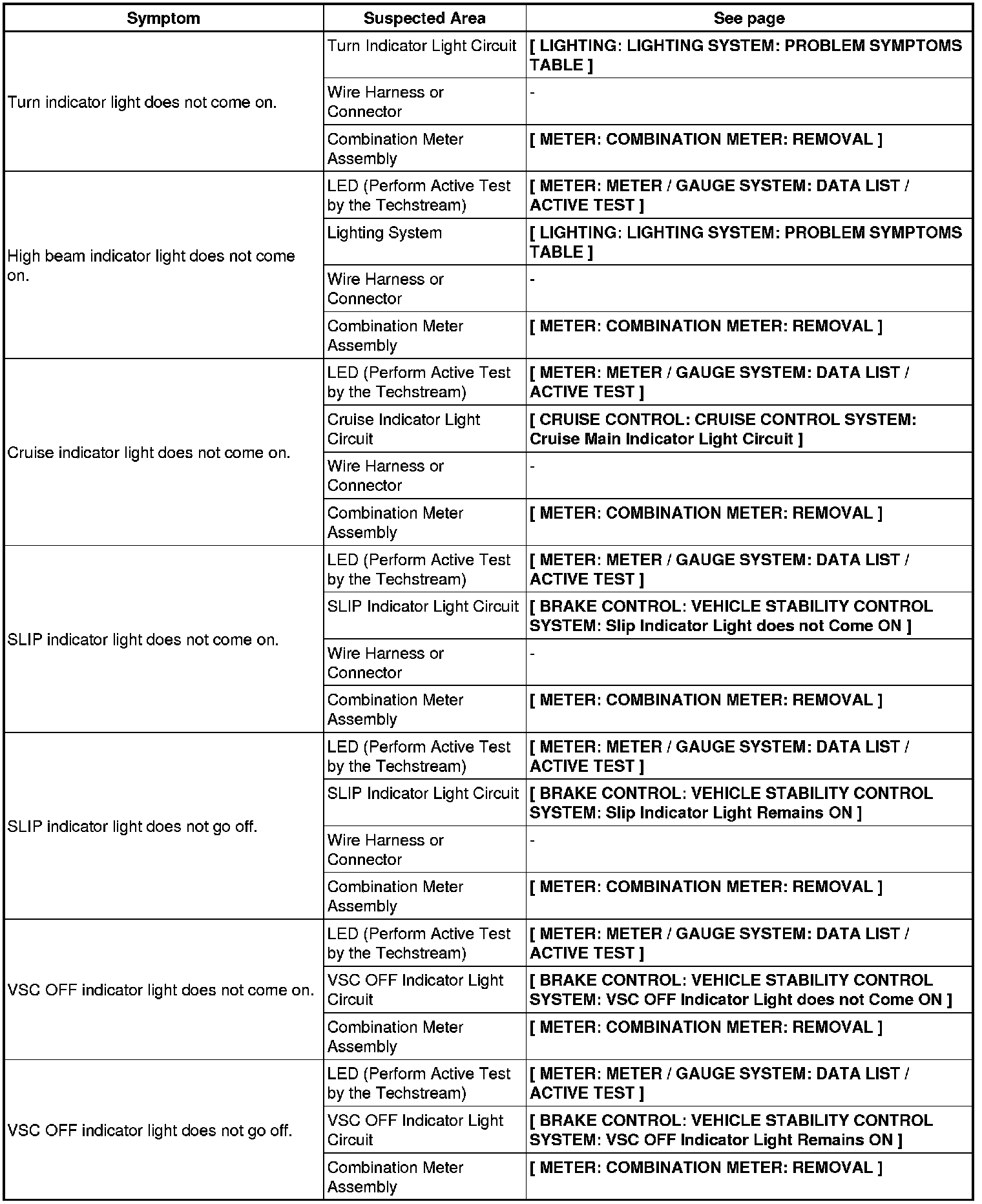

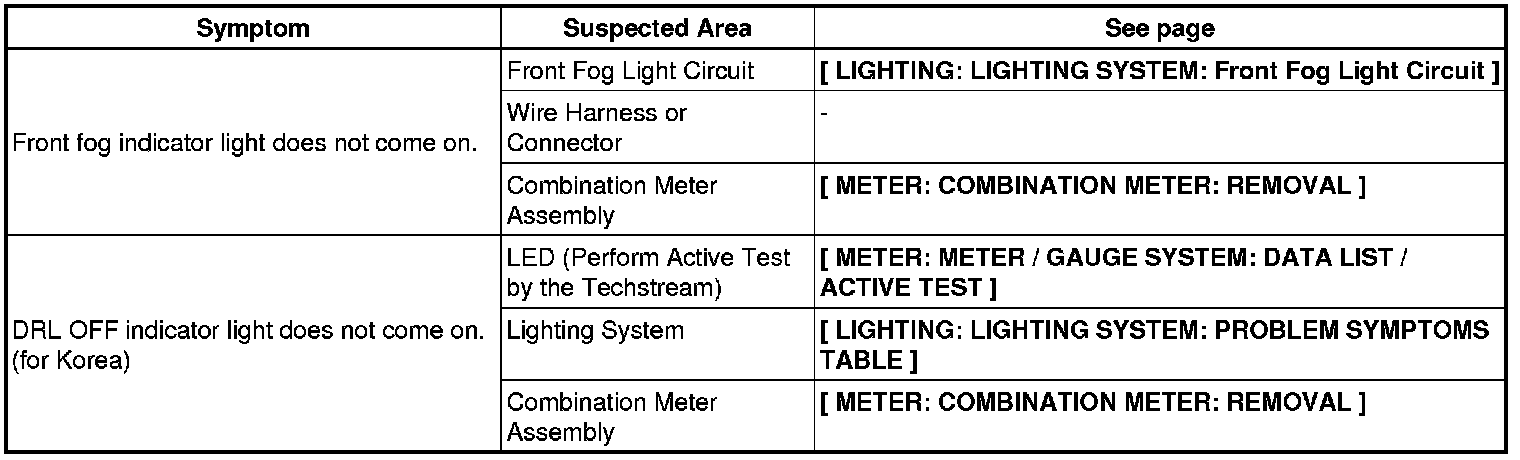

INDICATOR LIGHTS:

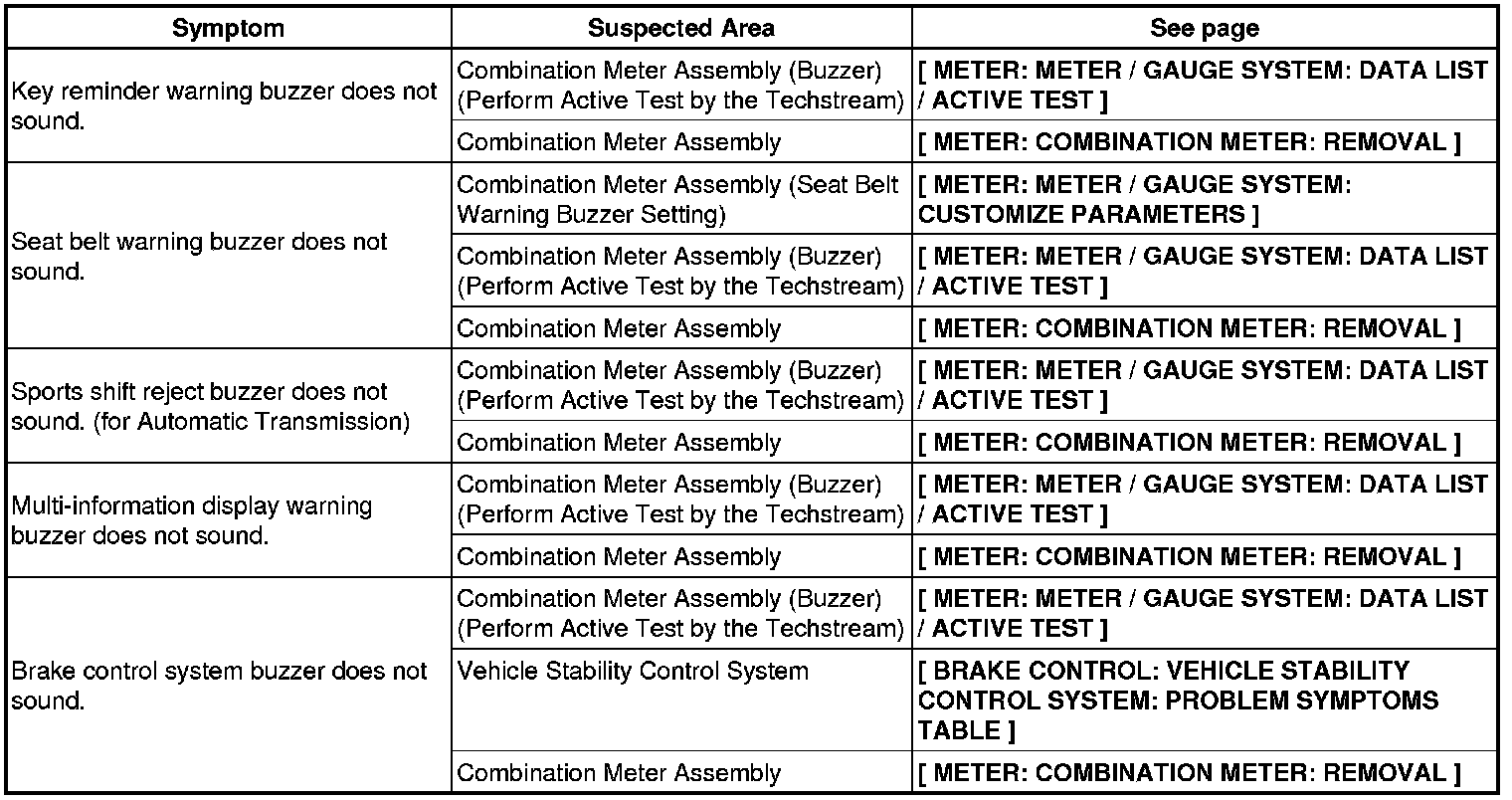

BUZZER:

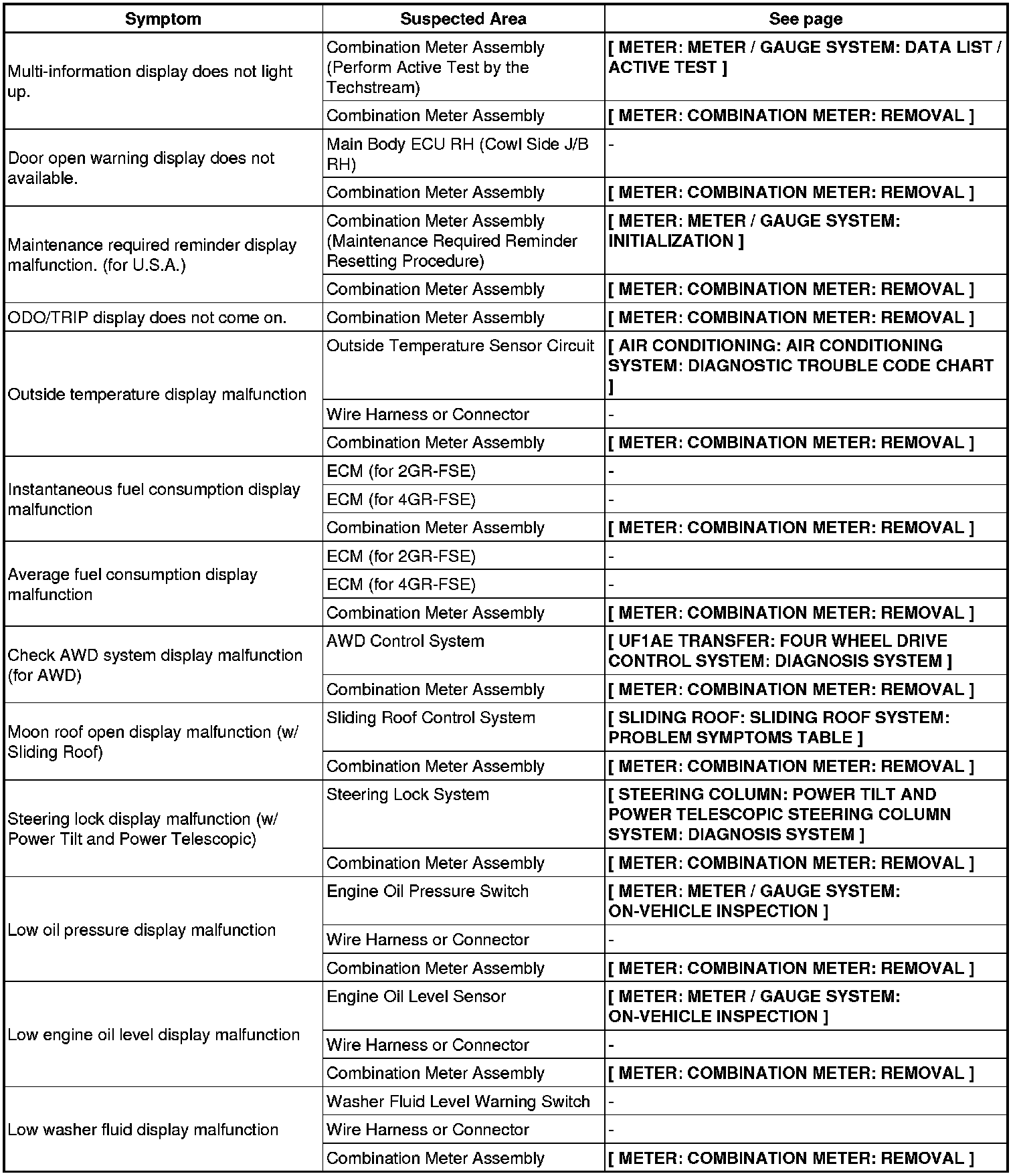

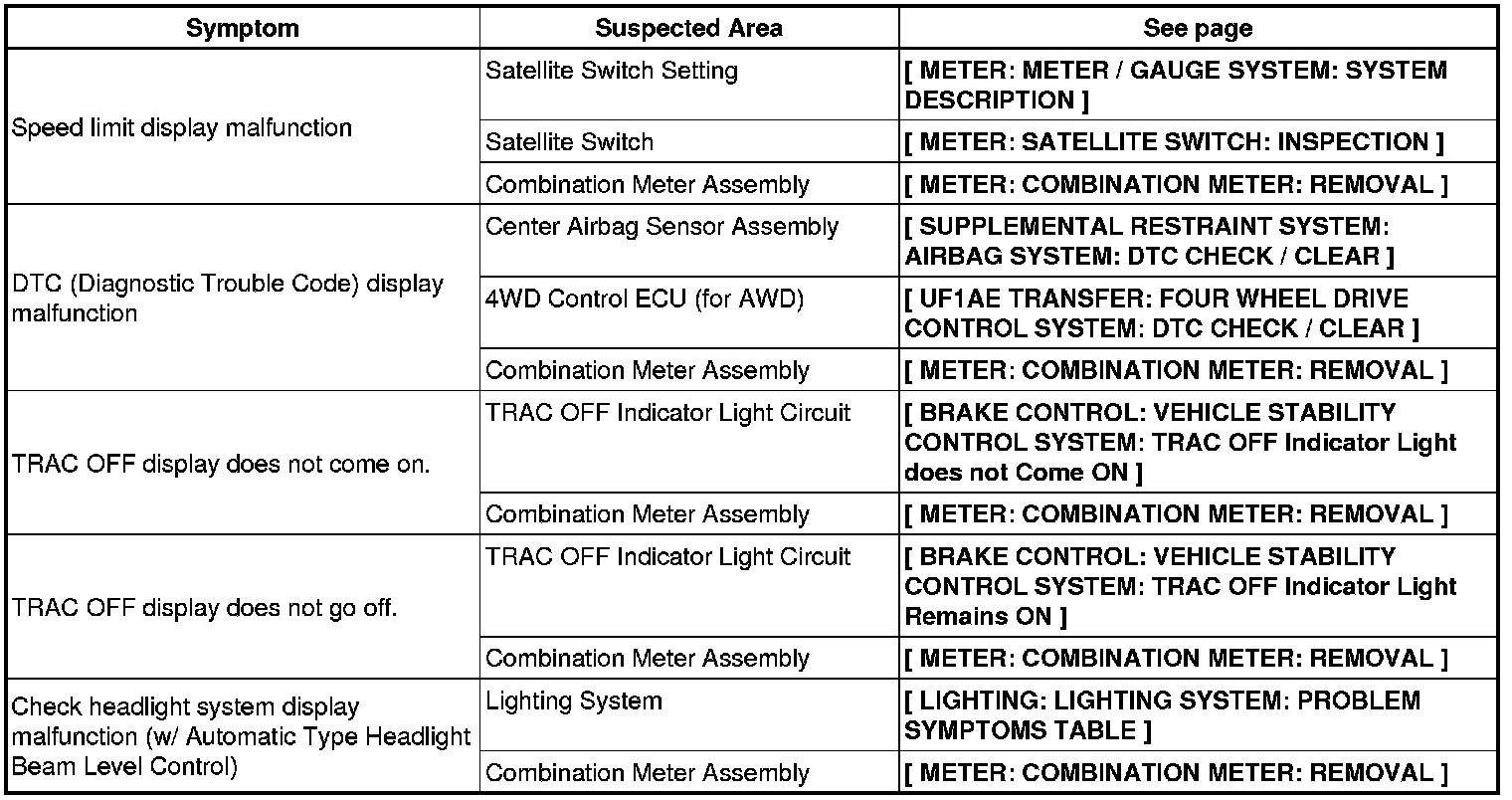

MULTI-INFORMATION DISPLAY:
