Symptom Related Diagnostic Procedures

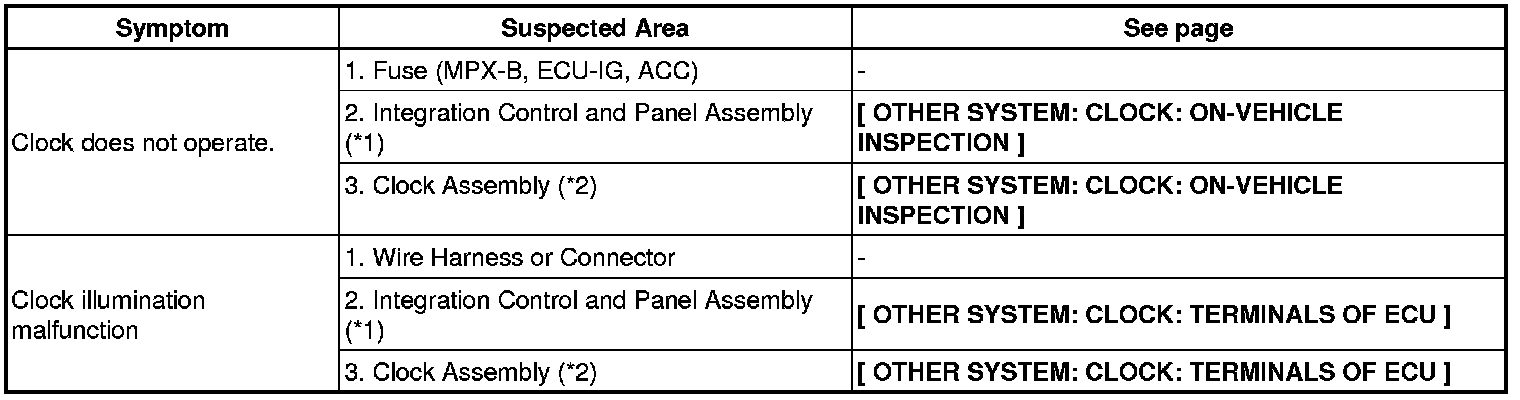

OTHER SYSTEM: CLOCK: PROBLEM SYMPTOMS TABLE

Clock Assembly





*1: w/o Navigation System w/o Multi-display

*2: w/ Navigation System or w/o Navigation System w/ Multi-display
