Pinout Values and Diagnostic Parameters

OTHER SYSTEM: CLOCK: TERMINALS OF ECU

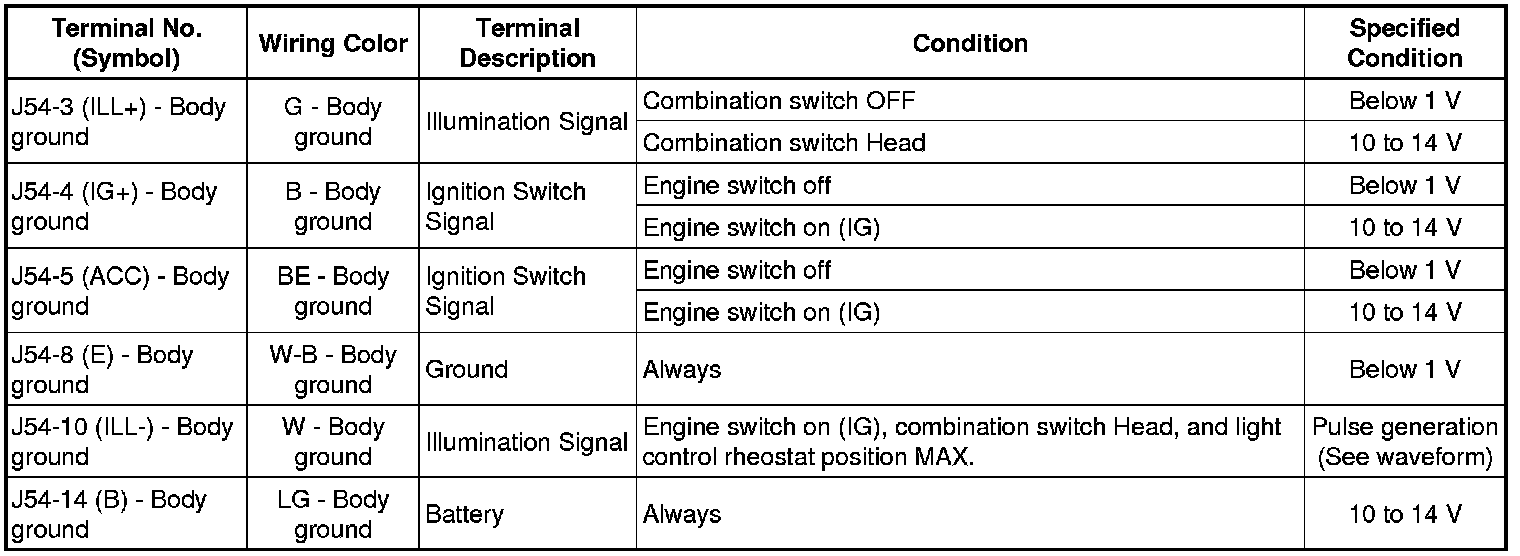

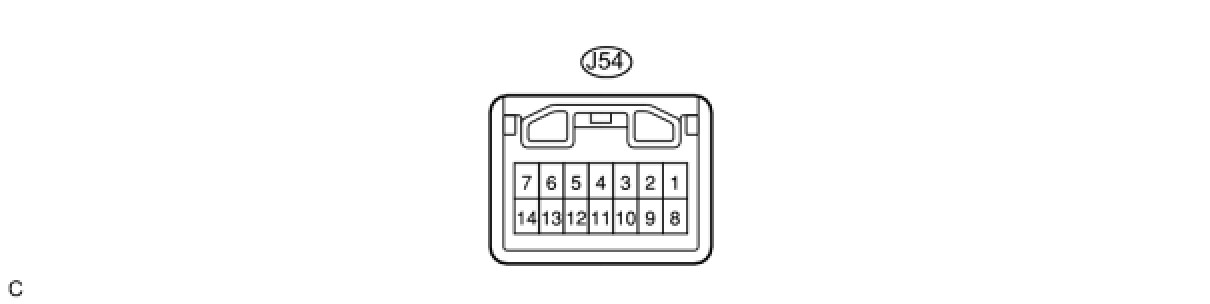

1. INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Navigation System w/o Multi-display)

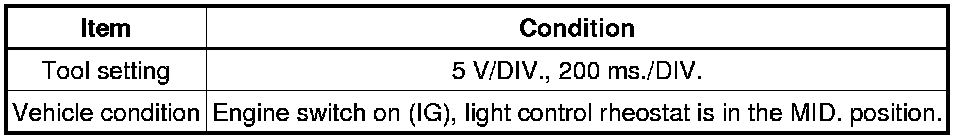

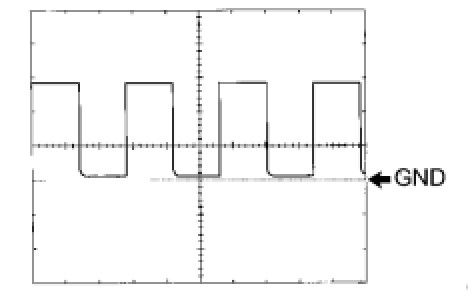

(a) Waveform (Reference) : Using an oscilloscope:





OK:

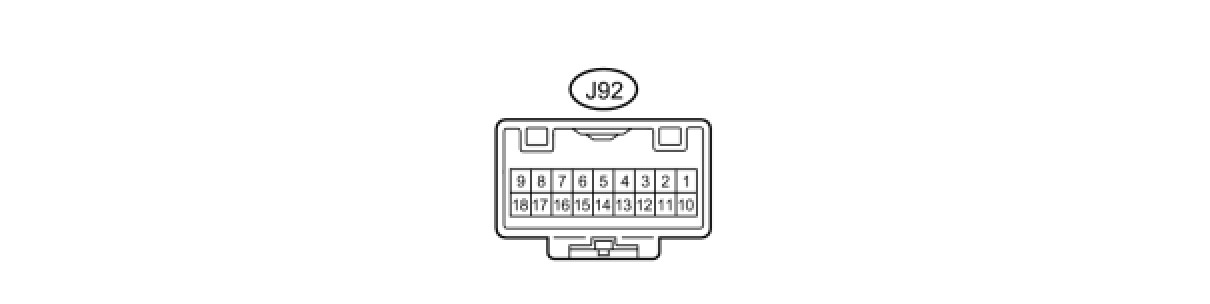

2. CLOCK ASSEMBLY (w/ Navigation System) or (w/o Navigation System w/ Multi-display)









(a) Waveform (Reference) : Using an oscilloscope:





OK:
