Component Tests and General Diagnostics

OTHER SYSTEM: CLOCK: ON-VEHICLE INSPECTION

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Navigation System w/o Multi-display)

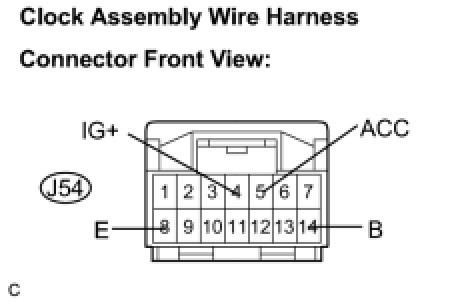

(a) Disconnect the J54 connector.





(b) Measure the voltage according to the value(s) in the table below.

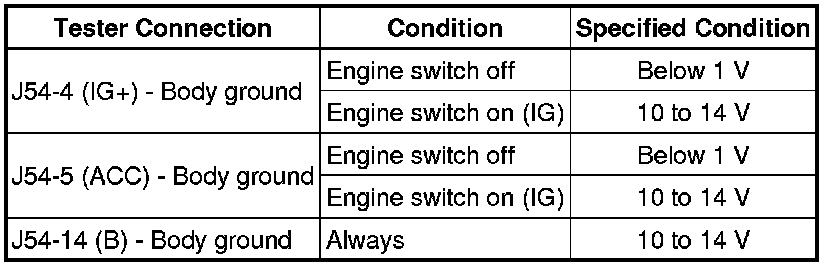

Standard voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





HINT
If the value is not as specified, repair or replace wire harness or connector.

2. INSPECT CLOCK ASSEMBLY (w/ Navigation System) or (w/o Navigation System w/ Multi-display)

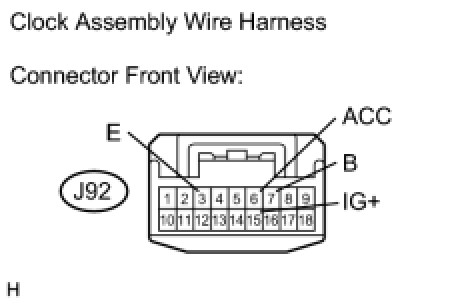

(a) Disconnect the J92 connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





HINT
If the value is not as specified, repair or replace the wire harness or connector.
