Installation

OTHER SYSTEM: CLOCK: INSTALLATION

1. INSTALL CLOCK ASSEMBLY (w/o Multi-display)

(a) Connect the connector.

(b) Install the cover with the 9 screws.

(d) Install the install the integration control panel with 6 screws.

2. INSTALL RADIO RECEIVER ASSEMBLY (w/o Multi-display) Installation

3. INSTALL NO. 2 RADIO BRACKET (w/o Multi-display) Installation

4. INSTALL NO. 1 RADIO BRACKET (w/o Multi-display) Installation

5. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Multi-display) Installation

6. INSTALL CLOCK ASSEMBLY (w/ Multi-display)

(a) for DVD:

(1) Check that the wire harness is in the position shown in the illustration.

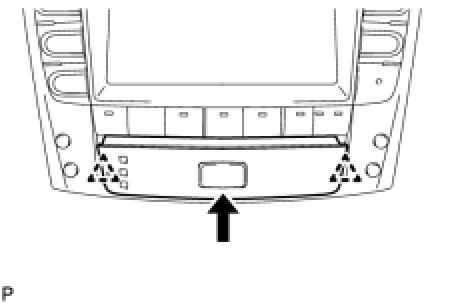

(2) Engage the 2 clips and install the clock assembly.

(b) for HDD:

(1) Check that the wire harness is in the position shown in the illustration.

(2) Engage the 2 clips and install the clock assembly as shown in the illustration.

(3) Check that the wire harness is in the position shown in the illustration.

7. INSTALL RADIO RECEIVER ASSEMBLY (w/ Multi-display) Installation

8. INSTALL NO. 2 RADIO BRACKET (w/ Multi-display) Installation

9. INSTALL NO. 1 RADIO BRACKET (w/ Multi-display) Installation

10. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Multi-display) Installation

11. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation

12. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

13. INSTALL CONSOLE BOX Installation

14. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray) Installation

15. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray) Installation

16. INSTALL FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray) Installation

17. INSTALL INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray) Installation

18. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

19. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

20. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation

21. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

22. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

23. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) Installation

24. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) Installation

25. ADJUST CLOCK
