Removal

OTHER SYSTEM: CIGARETTE LIGHTER: REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) Removal

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) Removal

3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Removal

4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Removal

5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Removal

6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

8. REMOVE FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY Removal

9. REMOVE CIGARETTE LIGHTER ASSEMBLY

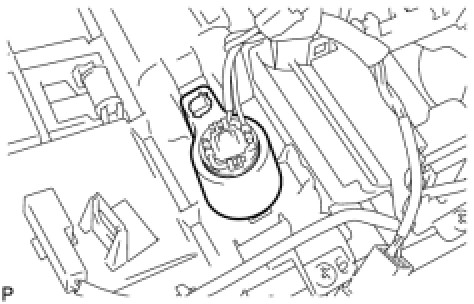

(a) Remove the cigarette lighter knob and element assembly.

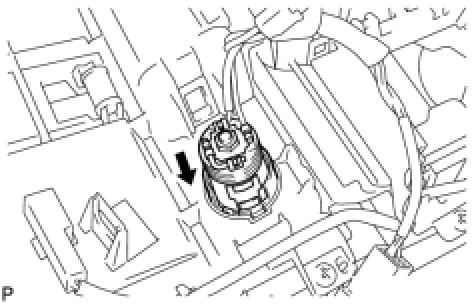

(b) Disengage the clip.

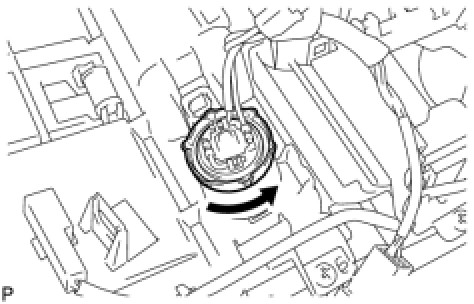

(c) Turn the cigarette lighter nut in the direction indicated by the arrow to remove it.





(d) Remove the cigarette lighter retainer.

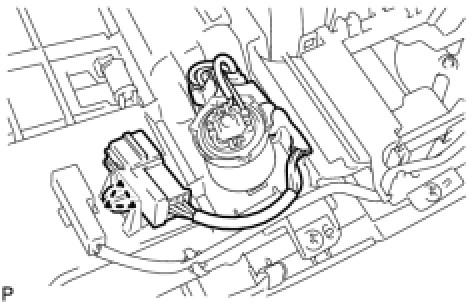

(e) Remove the cigarette lighter socket.
