Installation

OTHER SYSTEM: CIGARETTE LIGHTER: INSTALLATION

1. INSTALL CIGARETTE LIGHTER ASSEMBLY

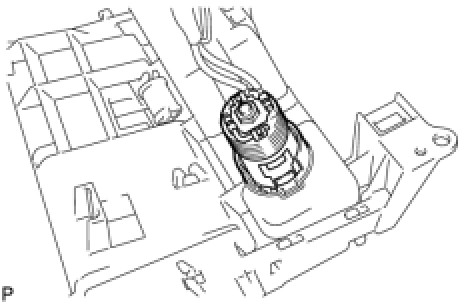

(a) Install the cigarette lighter socket.

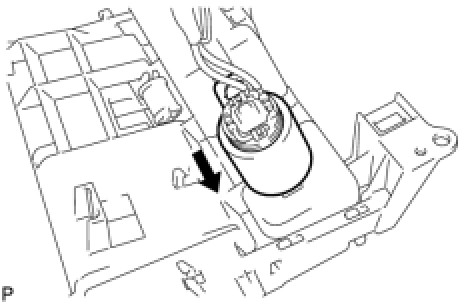

(b) Install the cigarette lighter retainer.

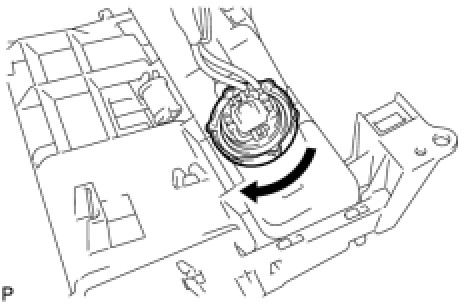

(c) Turn the cigarette lighter nut in the direction indicated by the arrow to install it.

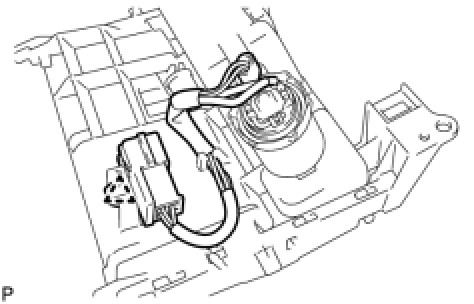

(d) Engage the clip.





2. INSTALL FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY Installation

3. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

4. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

5. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation

6. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

7. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) Installation

9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) Installation
