Lexus
>>
2012
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

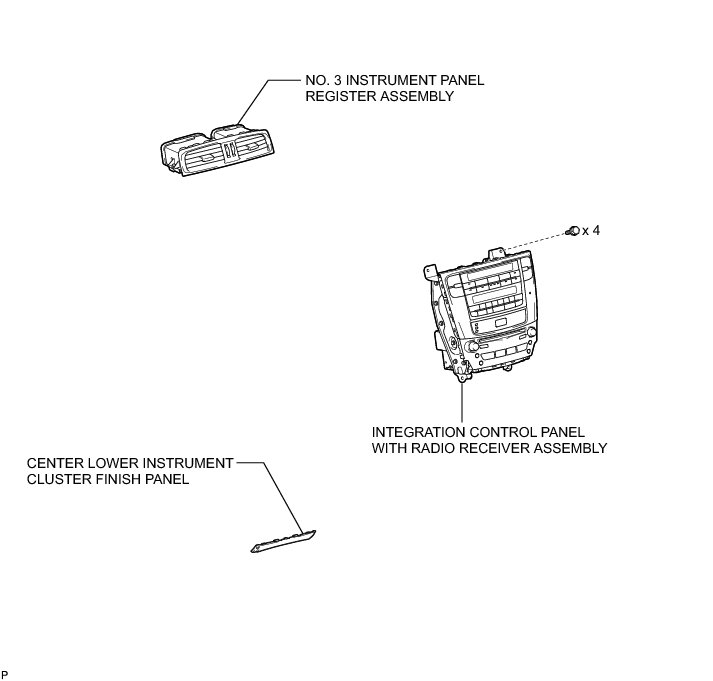

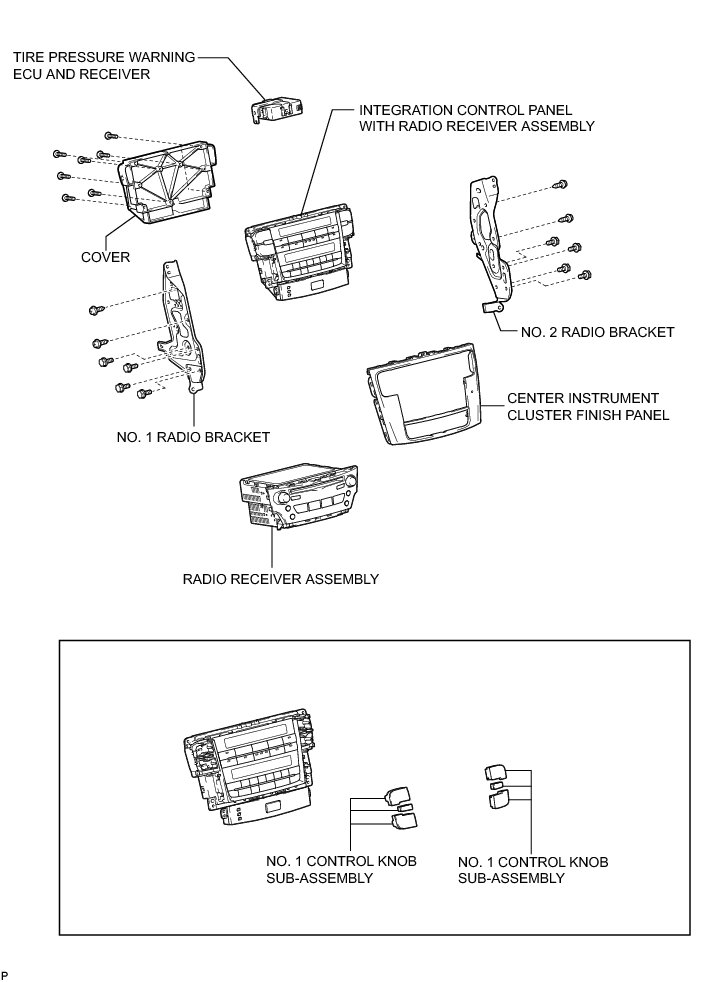

AIR CONDITIONING: AIR CONDITIONING PANEL: COMPONENTS
