Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

1. REMOVE INLET CONTROL SERVO MOTOR

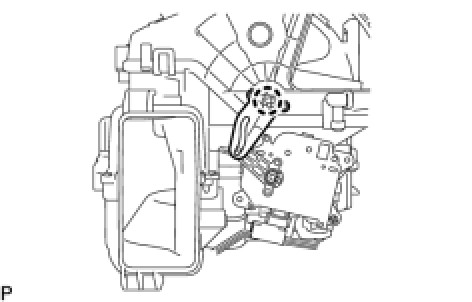

(a) Detach the claw and remove the lever.

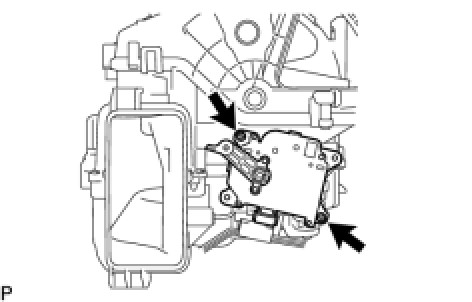

(b) Remove the 2 screws and inlet control servo motor.





2. REMOVE CLEAN AIR FILTER

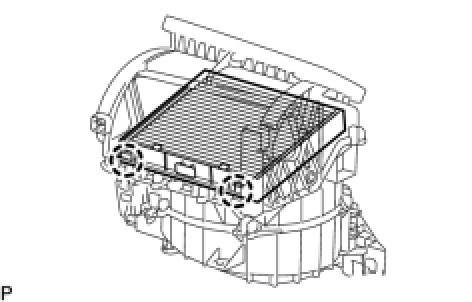

(a) Detach the 2 claws and remove the air filter.





HINT
Be sure to turn the engine switch on (IG) and set the A/C to RECIRCULATION mode before removing the air filter.

3. REMOVE COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY

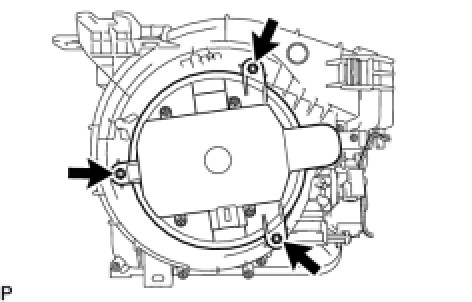

(a) Remove the 3 screws and fan motor.
