Installation

AIR CONDITIONING: HEATER GLOW PLUG: INSTALLATION

1. INSTALL WATER BY-PASS GLOW PLUG

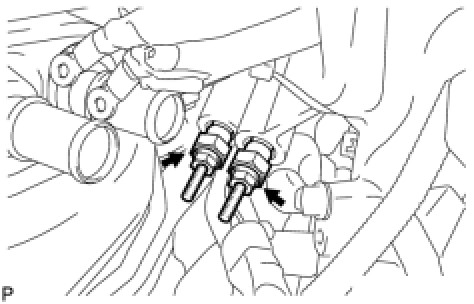

(a) Install the water by-pass glow plug.





Torque : 15 Nm (157 kgf-cm, 11 ft-lbf)

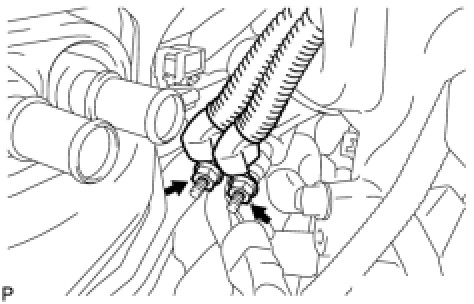

(b) Install the heater blower wire with the 2 nuts and 2 grommets.





Torque : 2.7 Nm (28 kgf-cm, 24 in-lbf)

2. INSTALL HEATER WATER INLET HOSE Installation

3. INSTALL HEATER WATER OUTLET HOSE Installation

4. ADD ENGINE COOLANT Testing and Inspection

5. CHECK FOR ENGINE COOLANT LEAKAGE Testing and Inspection
