Installation

4GR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT OIL CONTROL VALVE: INSTALLATION

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Intake Side)

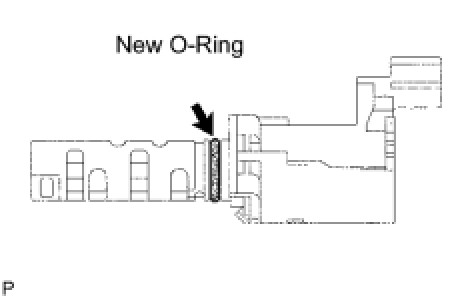

(a) Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

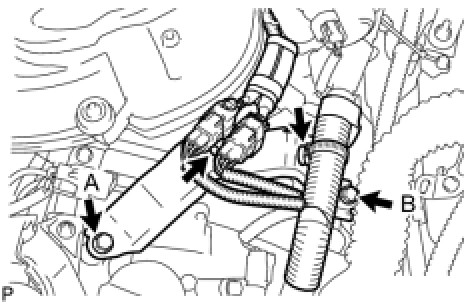

(b) Install the camshaft timing oil control valve with the bolt.

Bolt A - Torque : 10 Nm (104 kgf-cm, 7 ft-lbf)

Bolt B - Torque : 21 Nm (214 kgf-cm, 16 ft-lbf)

(e) Connect the 2 wire harness clamps to the bracket.

2. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Exhaust Side)

(a) Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

(b) Install the camshaft timing oil control valve with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

NOTICE:
Be careful that the O-ring is not cracked or jumped when installing the oil control valve.

(c) Connect the camshaft timing oil control valve connector.

3. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Intake Side)

(a) Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

(b) Install the camshaft timing oil control valve with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

4. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Exhaust Side)

(a) Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

(b) Install the camshaft timing oil control valve with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

NOTICE:
Be careful that the O-ring is not cracked or jumped when installing the oil control valve.

(c) Connect the camshaft timing oil control valve connector.

5. INSTALL INTAKE AIR SURGE TANK Installation

6. INSTALL THROTTLE BODY Installation

7. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation

8. CONNECT NO. 2 VENTILATION HOSE Installation

9. ADD ENGINE COOLANT Testing and Inspection

10. INSPECT FOR COOLANT LEAK Testing and Inspection

11. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation

12. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Installation

13. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Installation

14. INSTALL FRONT WIPER ARM HEAD CAP Installation

15. INSTALL ROOF DRIP SIDE FINISH MOULDING LH

16. INSTALL ROOF DRIP SIDE FINISH MOULDING RH

17. INSTALL FRONT FENDER PROTECTOR UPPER LH Installation

18. INSTALL FRONT FENDER PROTECTOR UPPER RH Installation

19. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

20. INSTALL ENGINE ROOM SIDE COVER LH Installation

21. INSTALL ENGINE ROOM SIDE COVER RH Installation

22. INSTALL COOL AIR INTAKE DUCT SEAL Installation
