Installation

4GR-FSE COOLING: THERMOSTAT: INSTALLATION

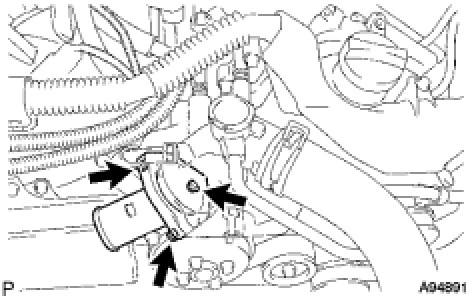

1. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

(a) Install a new gasket and the water inlet with thermostat with the 3 nuts.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

2. CONNECT RADIATOR OUTLET HOSE

(a) Connect the radiator outlet hose to the radiator assembly and secure it with the clip.





HINT
* Make sure that the claws on the clip are positioned as shown in the illustration.
* Dimension "a" in the illustration (between the hose end and the clip end) should be less than 1.0 to 5.0 mm.
* Connect the hose until it makes contact with the stopper. (Dimension "b" should be less than 2.5 mm)

3. ADD ENGINE COOLANT Testing and Inspection

4. START ENGINE

5. CHECK FOR ENGINE COOLANT LEAKAGE Testing and Inspection

6. INSTALL NO. 1 INLET AIR CLEANER Installation

7. INSTALL COOL AIR INTAKE DUCT SEAL Installation

8. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
