Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse Block >> 42 - 43 - Cowl Side J/B RH Inner Circuit

42 - 43 - Cowl Side J/B RH Inner Circuit

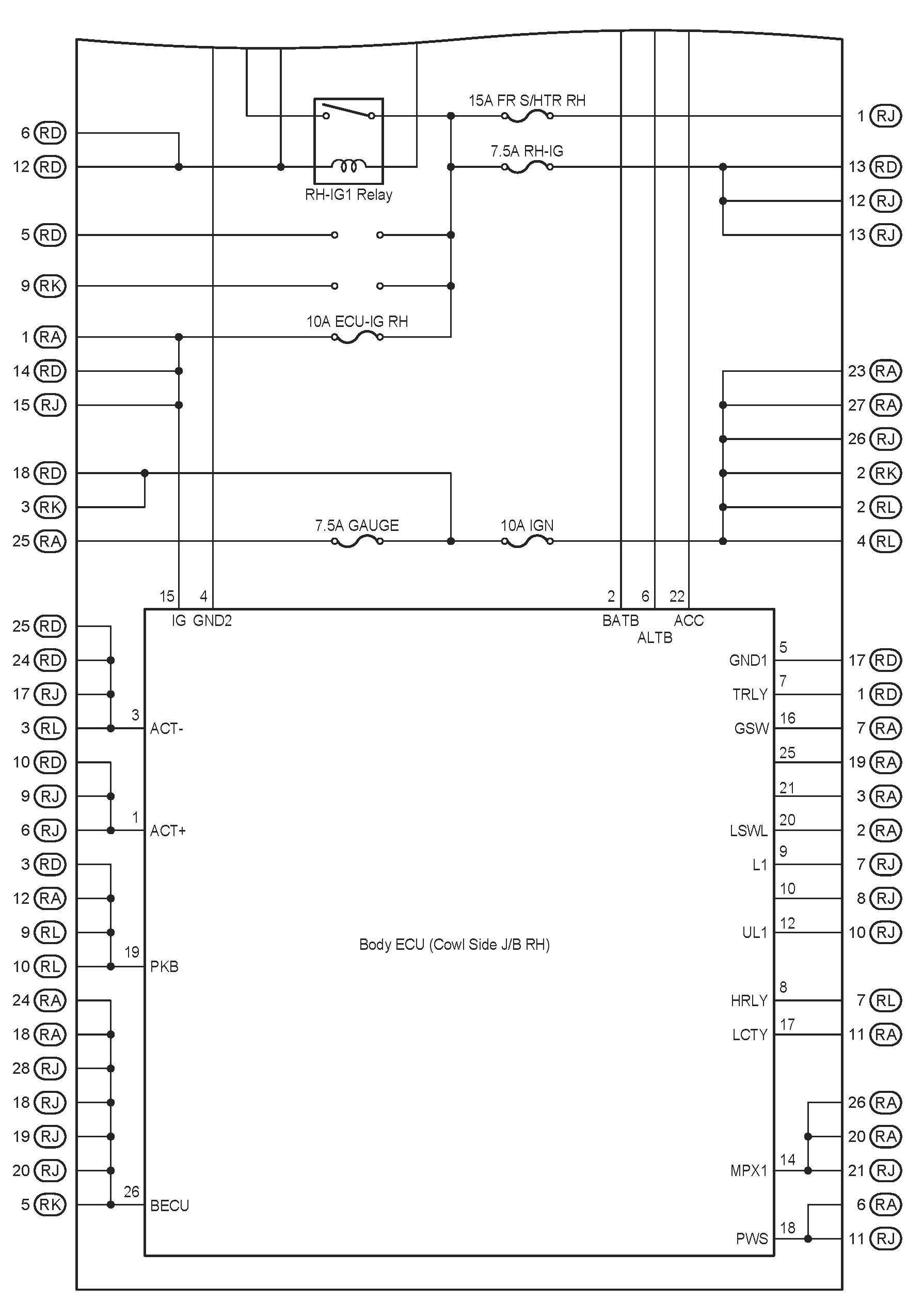

42 - Cowl Side J/B RH Inner Circuit:

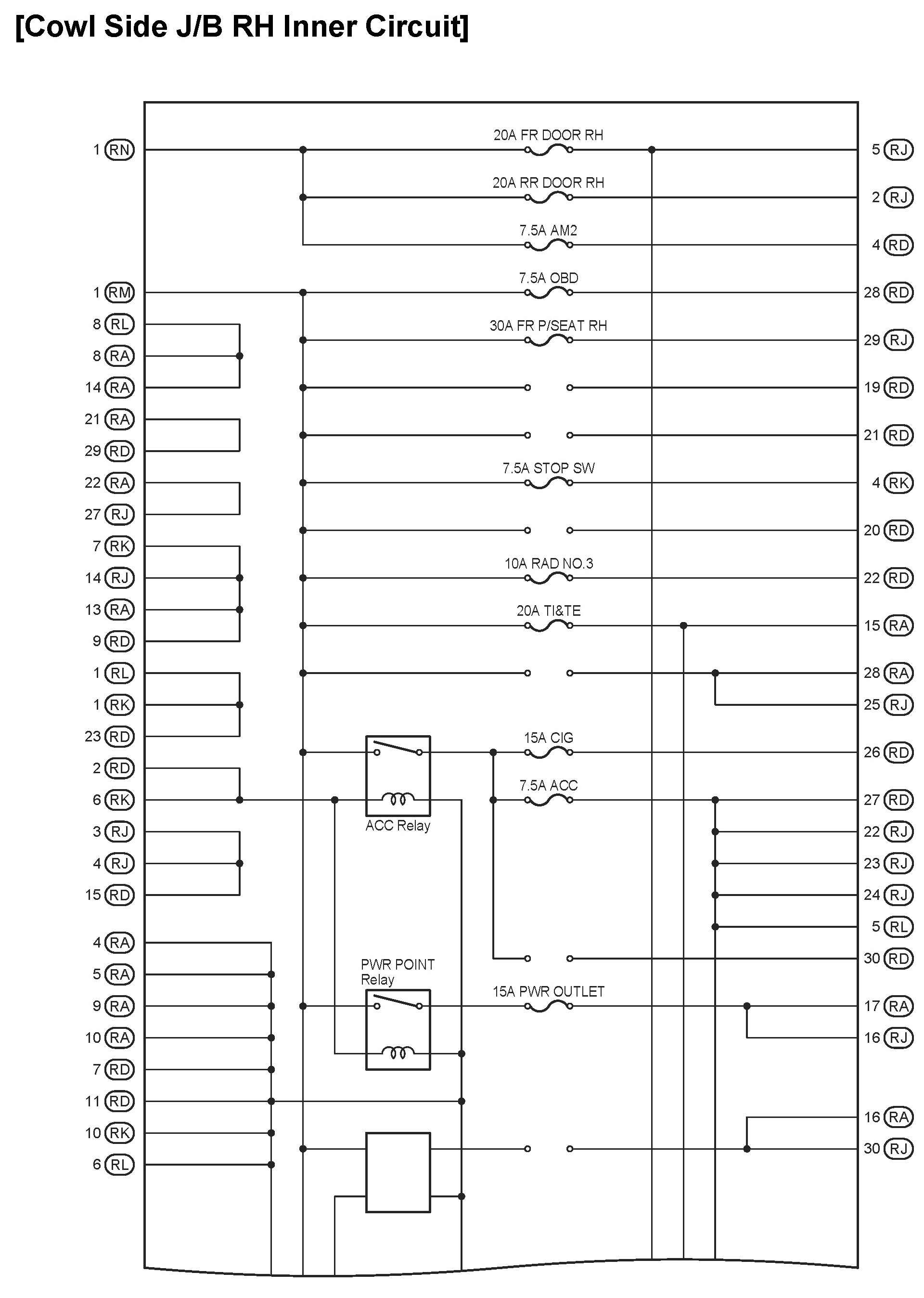

43 - Cowl Side J/B RH Inner Circuit:
