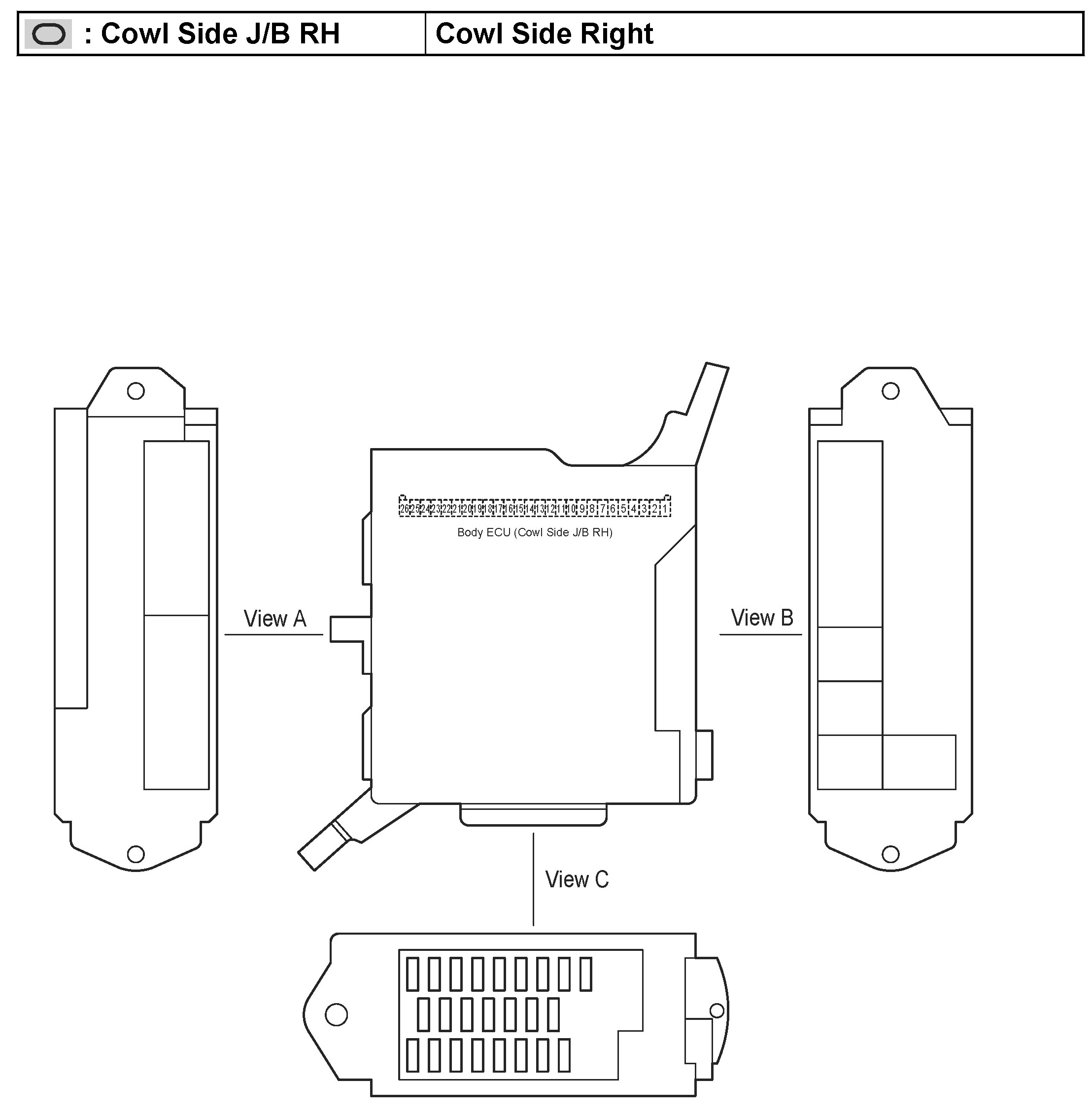

38 - 40 - Cowl Side J/B RH - Cowl Side Right

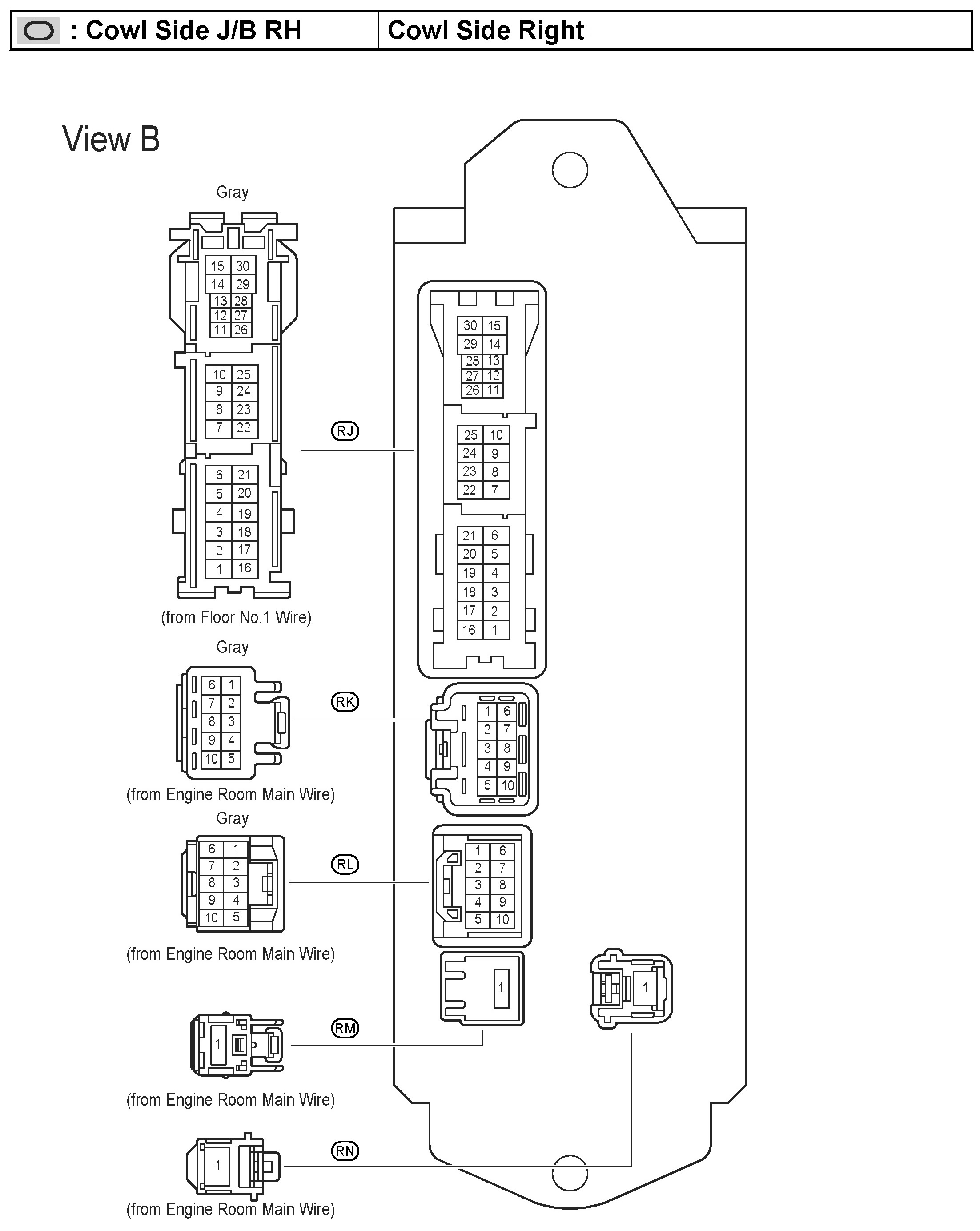

38 - Cowl Side J/B RH - Cowl Side Right:




39 - Cowl Side J/B RH - Cowl Side Right:




40 - Cowl Side J/B RH - Cowl Side Right:
