Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Diagrams >> Components >> 64 - Position of Parts In Seat

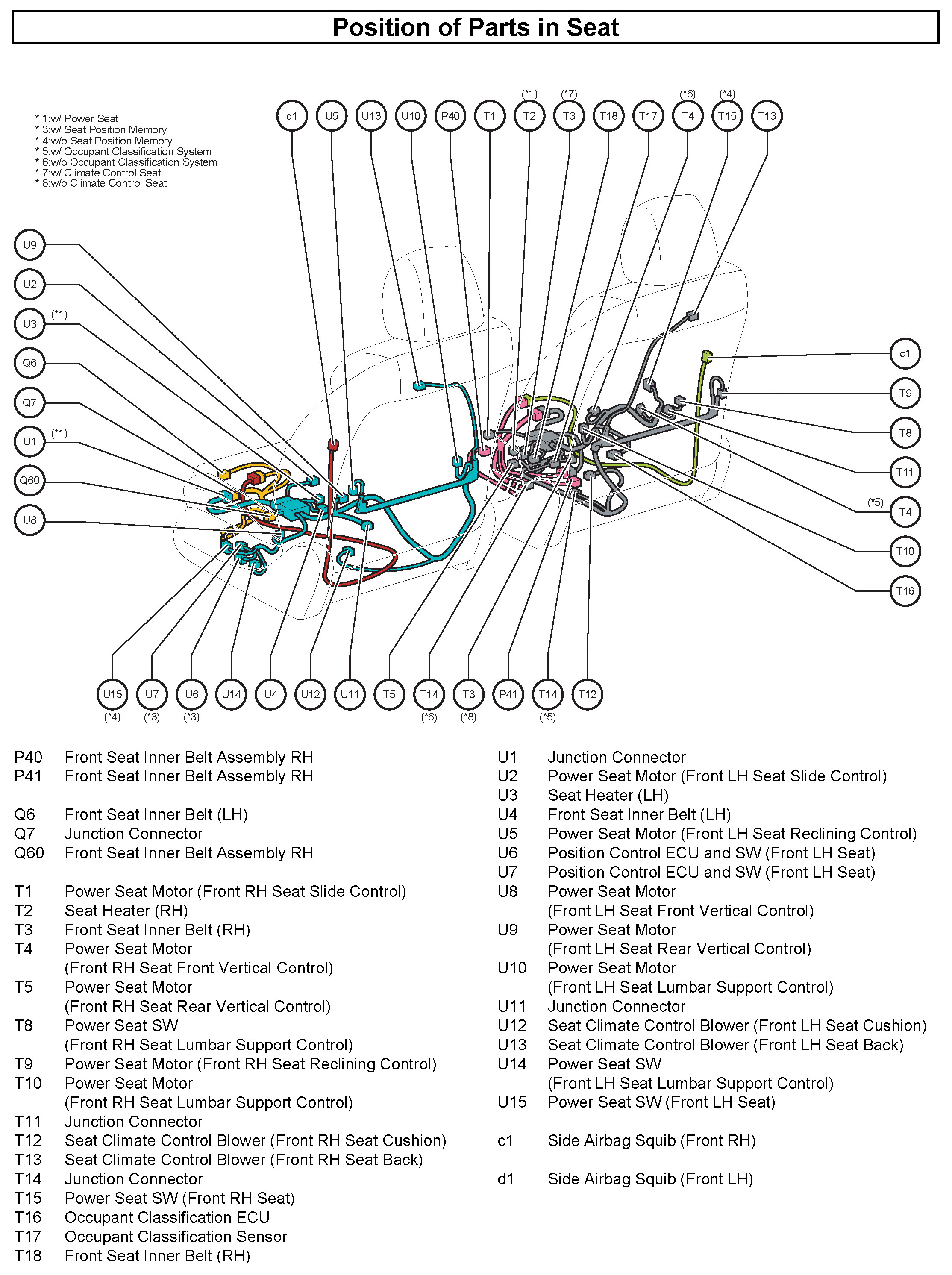

64 - Position of Parts In Seat

64 - Position of Parts in Seat:
