Removal

PARKING BRAKE: PARKING BRAKE PEDAL: REMOVAL

1. PRECAUTION

CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

3. REMOVE FRONT SEAT ASSEMBLY (for Standard Type Power Seat)

Removal

4. REMOVE FRONT SEAT ASSEMBLY (for Sports Type Power Seat)

Removal

5. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat)

Removal

6. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

7. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY Removal

8. REMOVE FRONT DOOR SCUFF PLATE LH Removal

9. REMOVE REAR DOOR SCUFF PLATE LH Removal

10. REMOVE CENTER LOWER PILLAR GARNISH LH Removal

11. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

12. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

13. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH Removal

14. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH Removal

15. REMOVE CONSOLE PANEL SUB-ASSEMBLY Removal

16. REMOVE INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray) Removal

17. REMOVE FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray) Removal

18. REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray) Removal

19. REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray) Removal

20. REMOVE CONSOLE BOX Removal

21. REMOVE NO. 2 CONSOLE BOX DUCT Removal

22. REMOVE SIDE INSTRUMENT PANEL LH Removal

23. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

24. REMOVE LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY Removal

25. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

26. REMOVE ACCELERATOR PEDAL (for 2WD)

Removal

27. REMOVE FRONT FLOOR SILENCER PAD (for 2WD)

Remove the front floor silencer pad.

28. REMOVE NO. 2 REAR AIR DUCT

29. REMOVE FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)

Removal

30. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 4GR-FSE)

Removal

31. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 2GR-FSE 2WD)

Removal

32. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 2GR-FSE 4WD)

Removal

33. REMOVE NO. 3 DASH PANEL INSULATOR PAD

Remove the No. 3 dash panel insulator pad.

34. REMOVE CENTER AIRBAG SENSOR ASSEMBLY Removal

35. REMOVE FRONT UPPER FLOOR REAR SUB PANEL

(a) Turn back the floor carpet in order to remove the front floor rear upper sub panel.

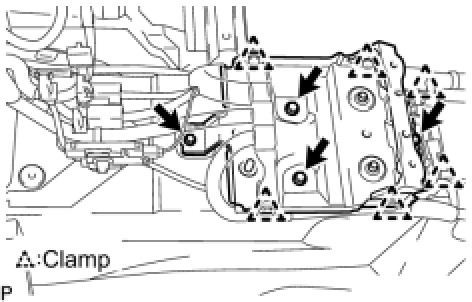

(b) Disengage the 6 clamps.

(c) Remove the 4 bolts and front floor rear upper sub panel.

36. REMOVE PARKING BRAKE PEDAL ASSEMBLY (for 2WD)

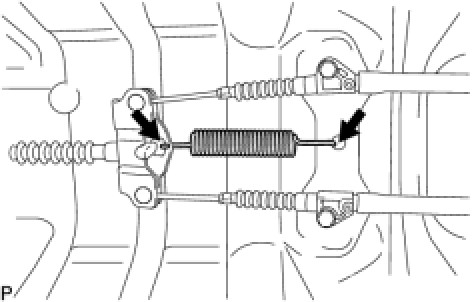

(a) Remove the parking brake return with damper spring.

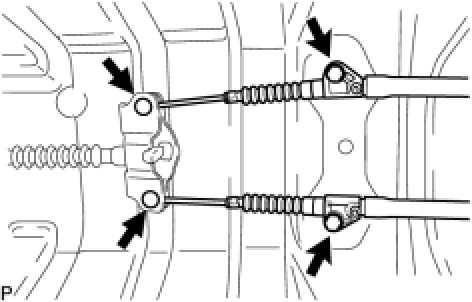

(b) Remove the 2 bolts and separate the 2 No. 2 parking brake cable assemblies from the parking brake equalizer.

(d) Remove the parking brake equalizer from the No. 1 parking brake cable assembly.

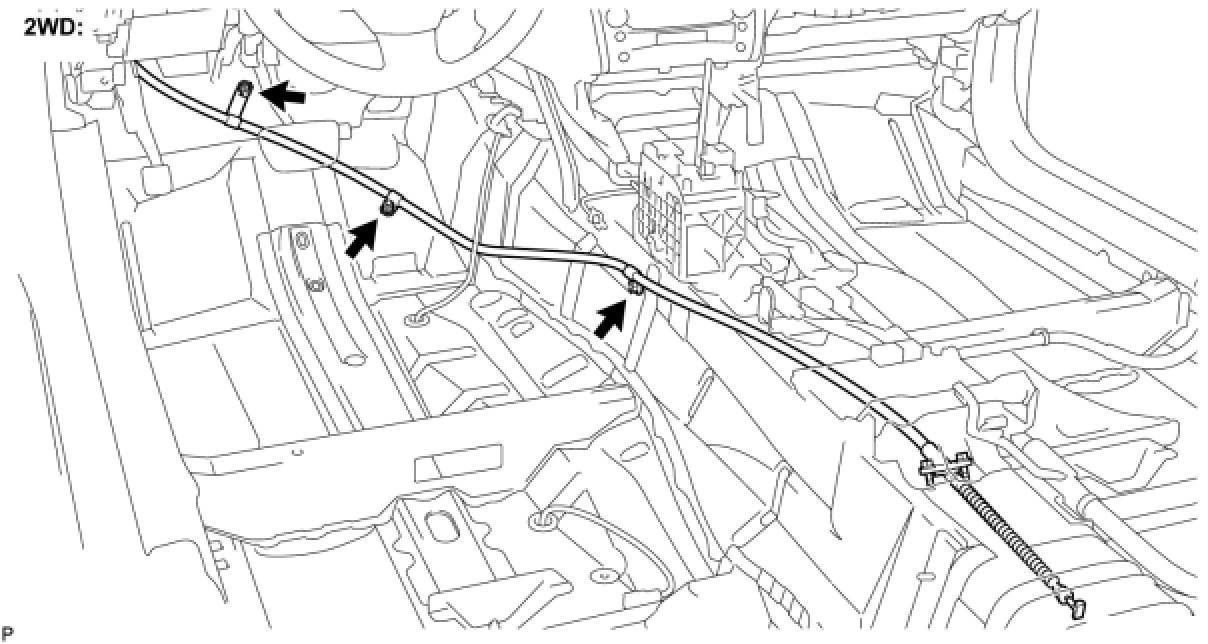

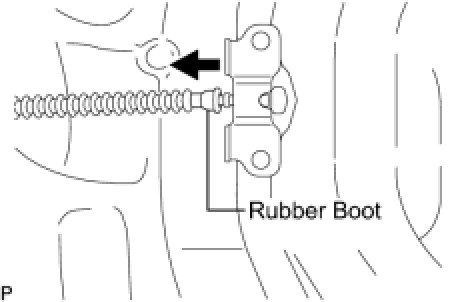

(e) Remove the 2 bolts and 3 nuts, and separate the No. 1 parking brake cable assembly from the body.

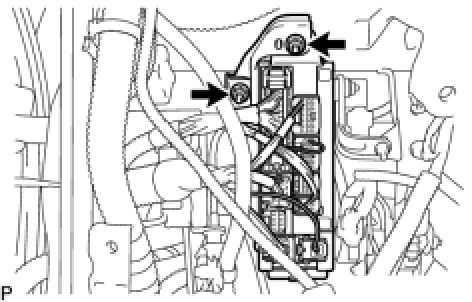

(f) Remove the 2 nuts and separate the instrument panel junction block assembly.

(g) Disconnect the parking brake switch connector.

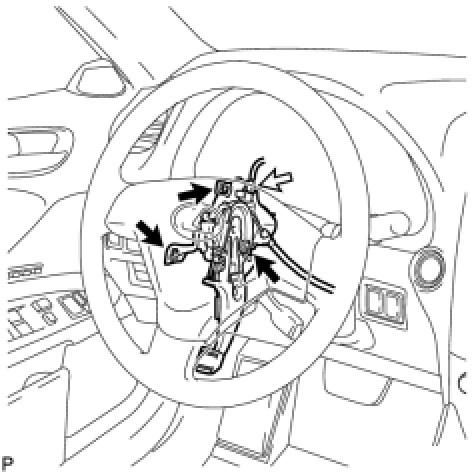

(h) Remove the 3 nuts and parking brake pedal from the body.

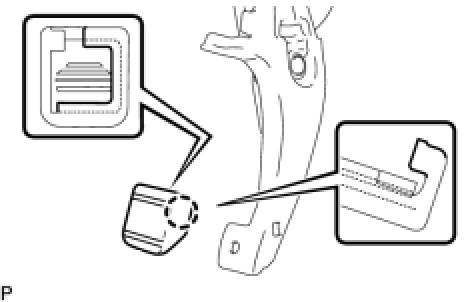

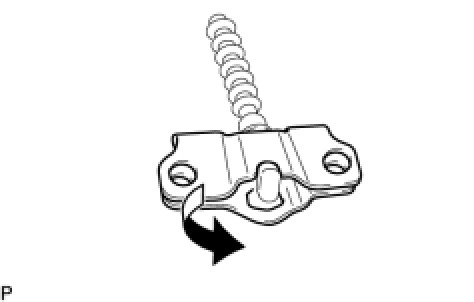

(i) Pull up the parking brake pedal claw.

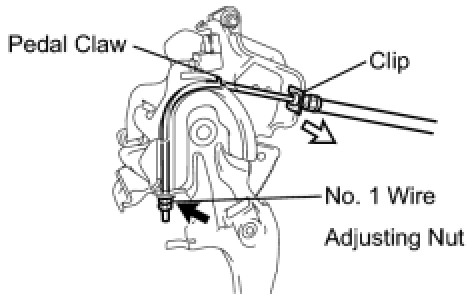

(j) Remove the lock nut and No. 1 wire adjusting nut of the No. 1 parking brake cable assembly from the parking brake pedal.

(k) Remove the clip and No. 1 parking brake cable assembly from the parking brake pedal.

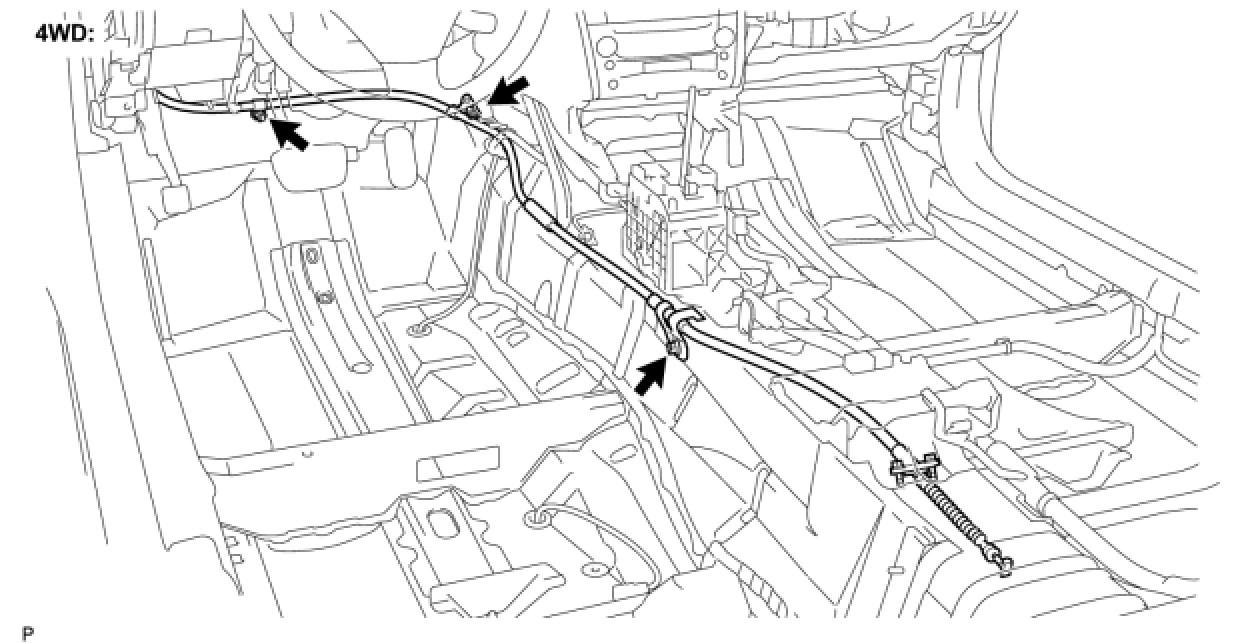

37. REMOVE PARKING BRAKE PEDAL ASSEMBLY (for 4WD)

(a) Remove the parking brake return with damper spring.
