Removal

BRAKE: REAR BRAKE FLEXIBLE HOSE: REMOVAL

HINT
* Use the same procedure for the RH side and LH side.
* The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL

2. DRAIN BRAKE FLUID

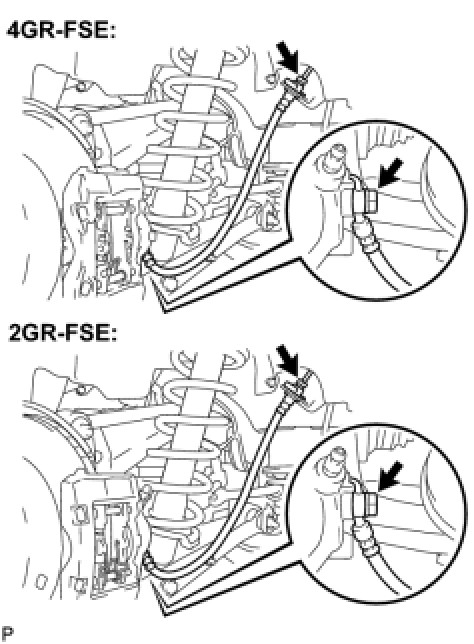

3. REMOVE REAR BRAKE FLEXIBLE HOSE

(a) Remove the brake tube with a union nut wrench (10 mm) while holding the rear brake flexible hose with a wrench.





NOTICE:
* Do not bend or damage the brake line.
* Do not allow any foreign matter such as dirt and dust to enter the rear brake flexible hose from the connecting points.

(b) Remove the clip.

(c) Remove the union bolt, the rear brake flexible hose and gasket.
