Installation

BRAKE: FRONT BRAKE FLEXIBLE HOSE: INSTALLATION

1. INSTALL FRONT BRAKE FLEXIBLE HOSE

(a) Connect the front brake flexible hose with the union bolt and a new gasket.





for 4GR-FSE - Torque : 30 Nm (310 kgf-cm, 22 ft-lbf)

for 2GR-FSE - Torque : 39 Nm (400 kgf-cm, 29 ft-lbf)

NOTICE:
Install the flexible hose lock securely in the lock hole in the front disc brake cylinder assembly.

(b) Connect the brake tube to the front brake flexible hose with a union nut wrench (10 mm) while holding the flexible hose with a wrench.

Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

NOTICE:
* Do not bend or damage the brake tube.
* Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

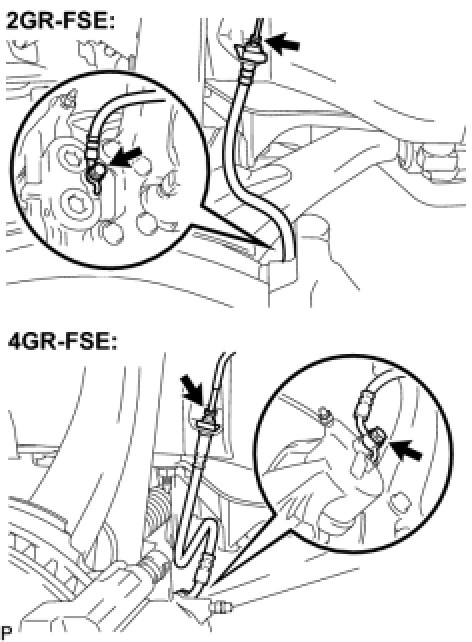

(c) Install the front brake flexible hose with a new clip.

NOTICE:
* When installing the front brake flexible hose, face the identification mark to the outside of the vehicle and minimize twisting of the hose.
* Install the clip as far as it will go.

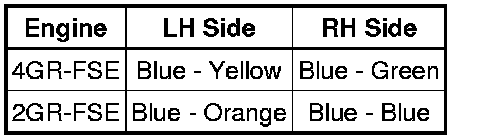

* Pay attention to the color of the identification mark because the front brake flexible hose is different between right and left (4WD vehicle).

Identification Mark Collar for 4WD





2. FILL RESERVOIR WITH BRAKE FLUID Service and Repair

3. BLEED BRAKE LINE Service and Repair

4. BLEED BRAKE ACTUATOR ASSEMBLY Service and Repair

5. INSPECT FLUID LEVEL IN RESERVOIR Service and Repair

6. INSPECT FOR BRAKE FLUID LEAK

7. INSTALL FRONT WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
