Removal

BRAKE: FRONT BRAKE (for 4GR-FSE): REMOVAL

HINT
* Use the same procedure for the RH side and LH side.
* The following procedure is for the LH side.

1. REMOVE FRONT WHEEL

2. DRAIN BRAKE FLUID

NOTICE:
If brake fluid leaks onto any painted surface, wash off or remove the brake fluid completely.

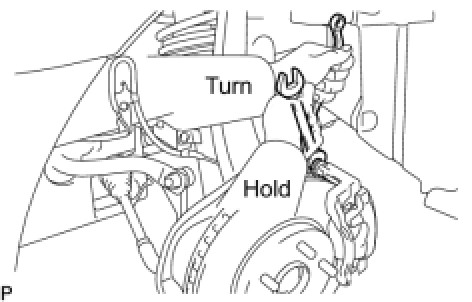

3. DISCONNECT FRONT FLEXIBLE HOSE

(a) Remove the union bolt and gasket from the disc brake cylinder assembly, then disconnect the front flexible hose.





4. REMOVE DISC BRAKE CYLINDER ASSEMBLY

(a) Remove the 2 bolts and disc brake cylinder assembly.
