Lexus
>>
2012
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Service and Repair
>>
Removal and Replacement
>>
Front Brake
>>
Components
Components

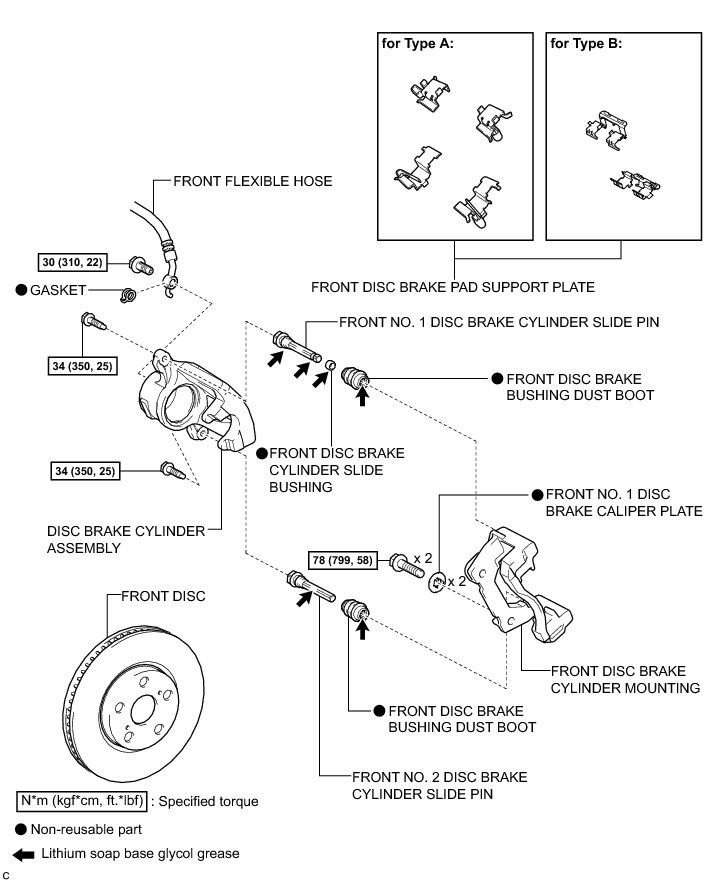

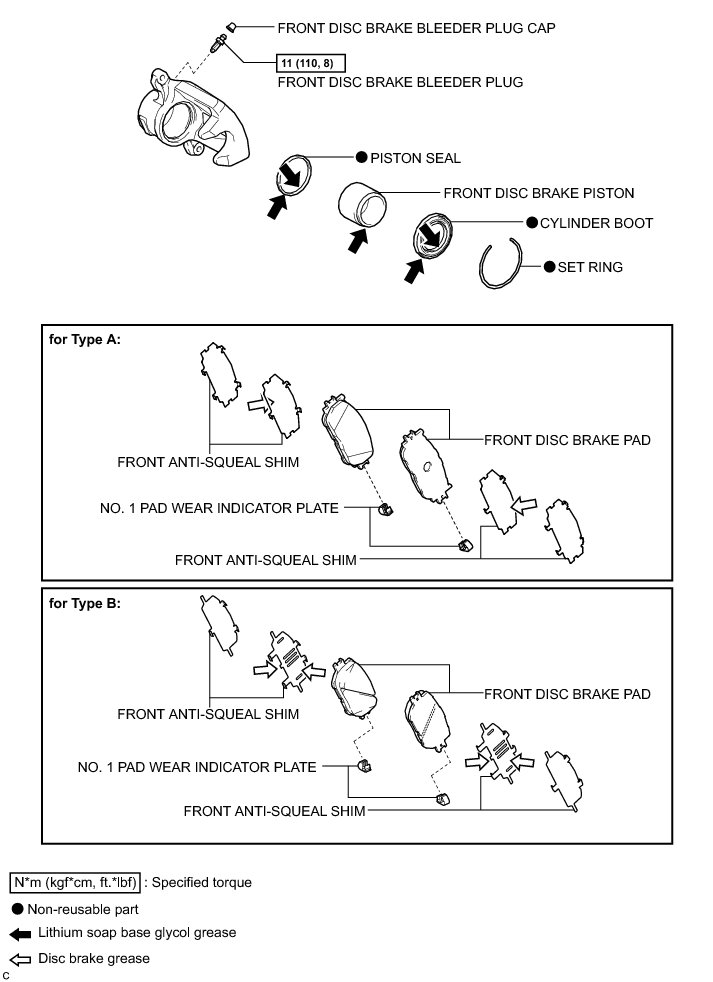

BRAKE: FRONT BRAKE (for 4GR-FSE): COMPONENTS
