Pinout Values and Diagnostic Parameters

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

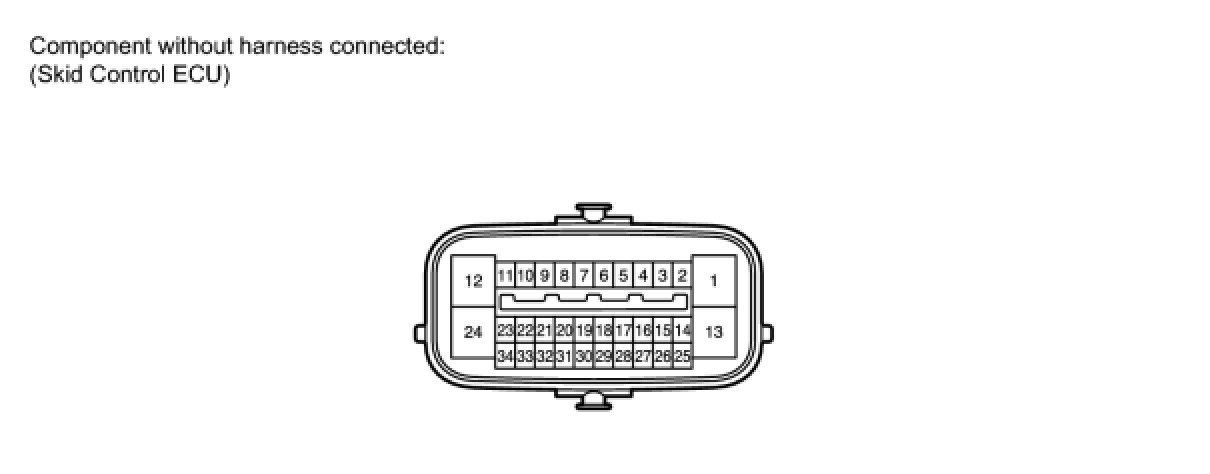

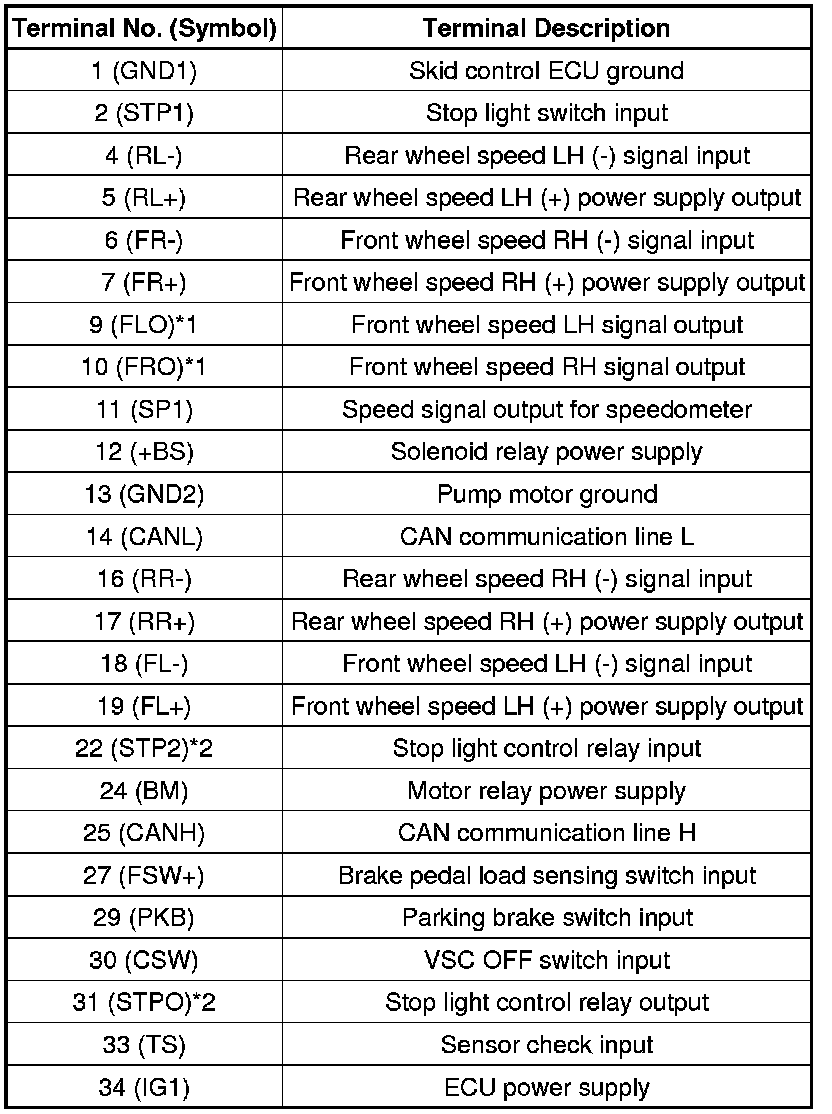

1. TERMINALS OF ECU









*1: w/ Automatic Headlight Beam Level Control

*2: for Automatic Transmission

2. TERMINAL INSPECTION

(a) Disconnect the connectors and measure the voltage or resistance on the wire harness side.





HINT
Voltage cannot be measured with the connectors connected to the skid control ECU as the connectors are watertight.

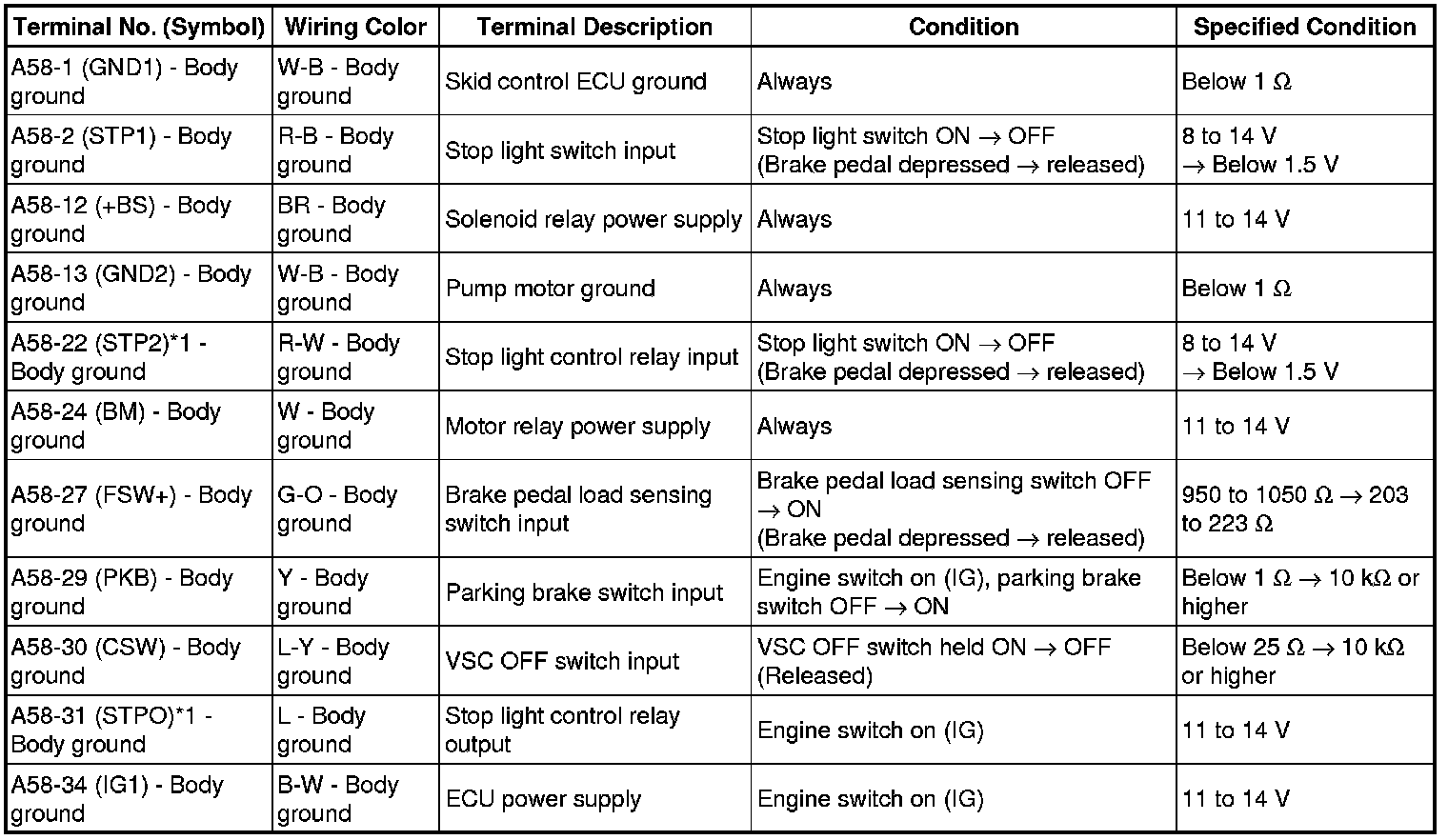

Standard





*1: for Automatic Transmission
