Foamed Material Application Areas

FOAMED MATERIAL APPLICATION AREAS

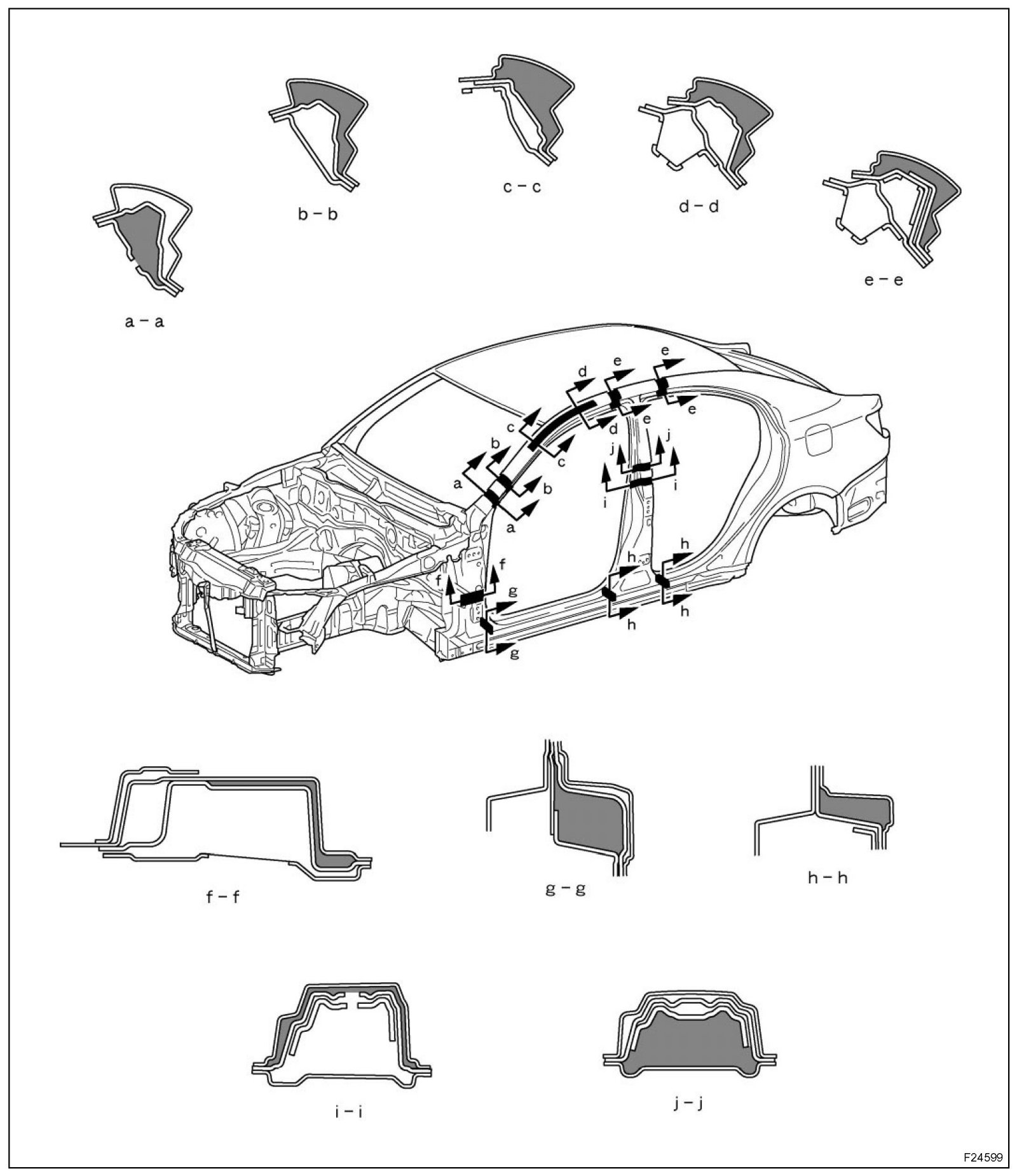

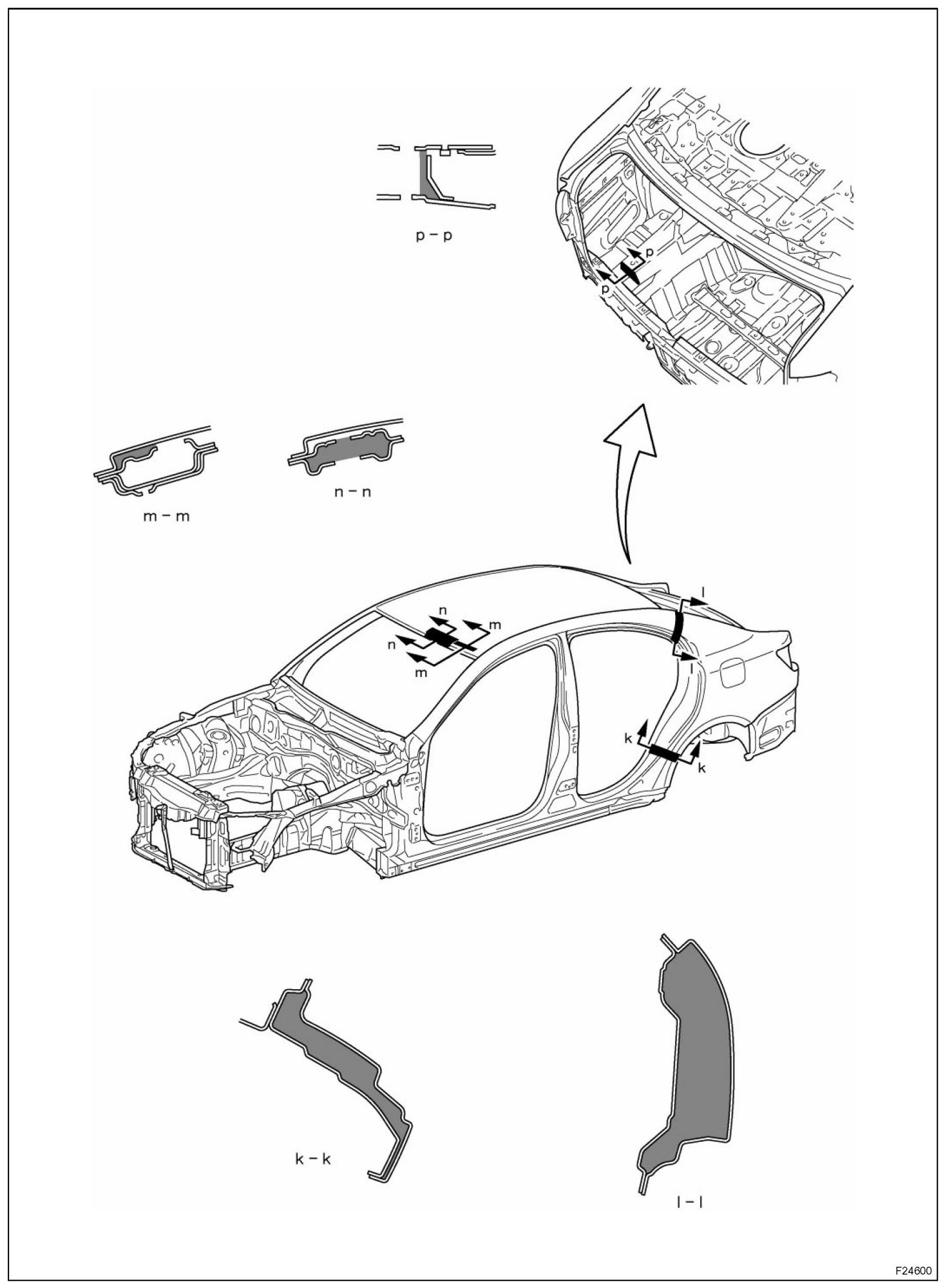

The sections shown in the figure are filled with foamed material to provide noise insulation. Refill with foamed materials after repairing these sections and their surrounding sections.

HINT:







1. Use the service holes located on the reverse side of the body panel to refill with foamed materials.
2. Follow the manufacturer's directions when handing the foamed material.
