Luggage Compartment Door Opener Inner Switch

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH: INSPECTION

1. INSPECT LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

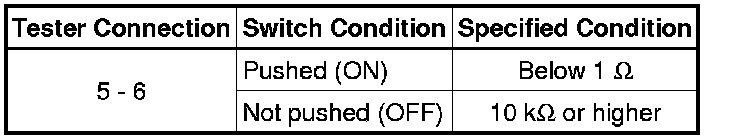

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the switch.
