ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER MAIN SWITCH: INSTALLATION

1. INSTALL LUGGAGE COMPARTMENT DOOR OPENER MAIN SWITCH

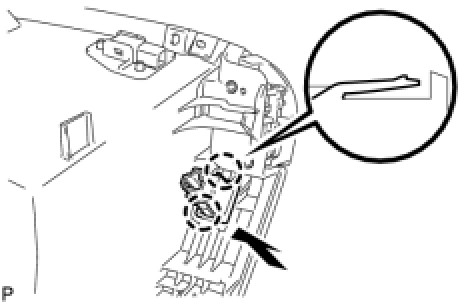

(a) Engage the 2 claws and install the luggage compartment door opener main switch.





2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL SIDE INSTRUMENT PANEL RH Installation

6. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation

7. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)

8. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

10. INSPECT SRS WARNING LIGHT
