Installation

MIRROR: OUTER MIRROR SWITCH: INSTALLATION

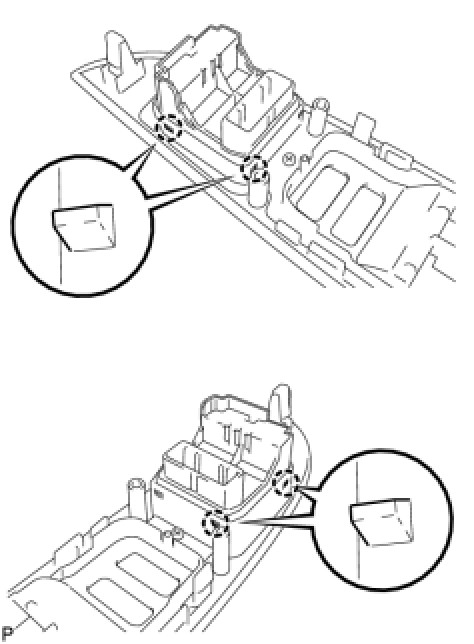

1. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Standard)

(a) Engage the 4 claws to install the outer mirror switch assembly.





2. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel)

(a) Engage the 4 claws to install the outer mirror switch assembly.

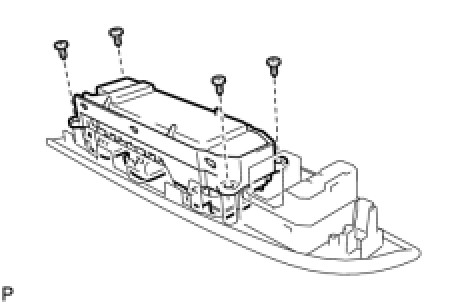

3. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(a) Install the power window regulator master switch assembly with the 4 screws.





4. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL Reassembly
