How To Proceed With Troubleshooting

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Seat Position Memory System): HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedures to troubleshoot the front power seat control system.

* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. INSPECT COMMUNICATION FUNCTION OF MULTIPLEX COMMUNICATION SYSTEM (BEAN)*

(a) Use the Techstream to check if the multiplex communication system (MPX) is functioning normally.

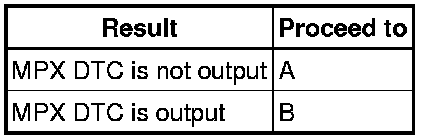

Result:





B -- Go to MULTIPLEX COMMUNICATION SYSTEM
A -- Continue to next step.

4. PROBLEM SYMPTOMS TABLE

Result:





B -- Go to step 6
A -- Continue to next step.

5. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) DATA LIST / ACTIVE TEST Scan Tool Testing and Procedures

(b) Terminals of ECU Front Power Seat Control System (w/ Seat Position Memory System)

(c) Operation Check Operation Check

NEXT -- Continue to next step.

6. REPAIR OR REPLACE

NEXT -- Continue to next step.

7. CONFIRMATION TEST

NEXT -- END
