Front Seat Cushion Heater (for Manual Seat)





SEAT: FRONT SEAT CUSHION HEATER (for Manual Seat): INSPECTION

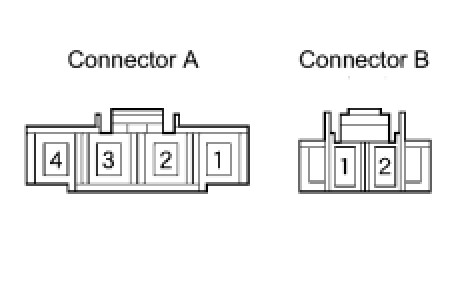

1. INSPECT FRONT SEAT CUSHION HEATER

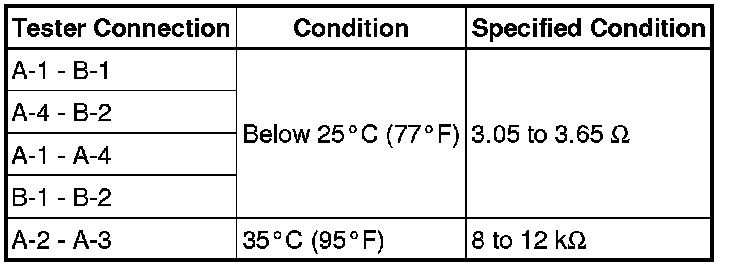

(a) Measure the resistance according to the value(s) in the table below.





Resistance:
