Installation

SEAT: FRONT SEATBACK HEATER (for Manual Seat): INSTALLATION

1. INSTALL FRONT SEAT BACK HEATER ASSEMBLY

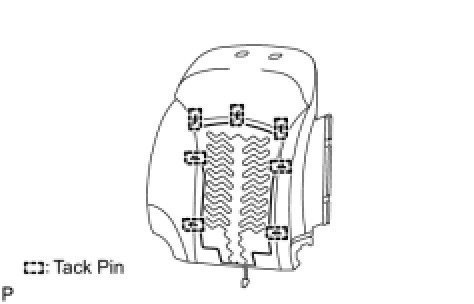

(a) Using a tacker, install the front seatback heater to the end of the seat cover with the 7 tack pins.





2. INSTALL FRONT SEPARATE TYPE SEAT BACK COVER Reassembly

3. INSTALL FRONT SEATBACK COVER WITH PAD

4. INSTALL FRONT SEAT HEADREST SUPPORT

5. INSTALL FRONT SEAT HEADREST SUPPORT

6. INSTALL FRONT INNER SEAT CUSHION SHIELD LH

7. INSTALL FRONT LOWER SEAT CUSHION SHIELD RH

8. INSTALL FRONT SEAT CUSHION SHIELD LH

9. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

10. INSTALL NO.2 VERTICAL ADJUSTING HANDLE

11. INSTALL VERTICAL SEAT ADJUSTER KNOB CAP

12. INSTALL VERTICAL SEAT ADJUSTER KNOB LH

13. INSTALL FRONT INNER SEAT BELT ASSEMBLY Installation

14. INSTALL FRONT SEAT ASSEMBLY Installation

15. INSTALL REAR INNER SEAT TRACK COVER

16. INSTALL REAR OUTER SEAT TRACK COVER

17. INSTALL FRONT INNER SEAT TRACK BRACKET COVER

18. INSTALL FRONT SEAT HEADREST ASSEMBLY
