Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Service and Repair >> Front Seatback Heater (for Manual Seat) >> Components

Components

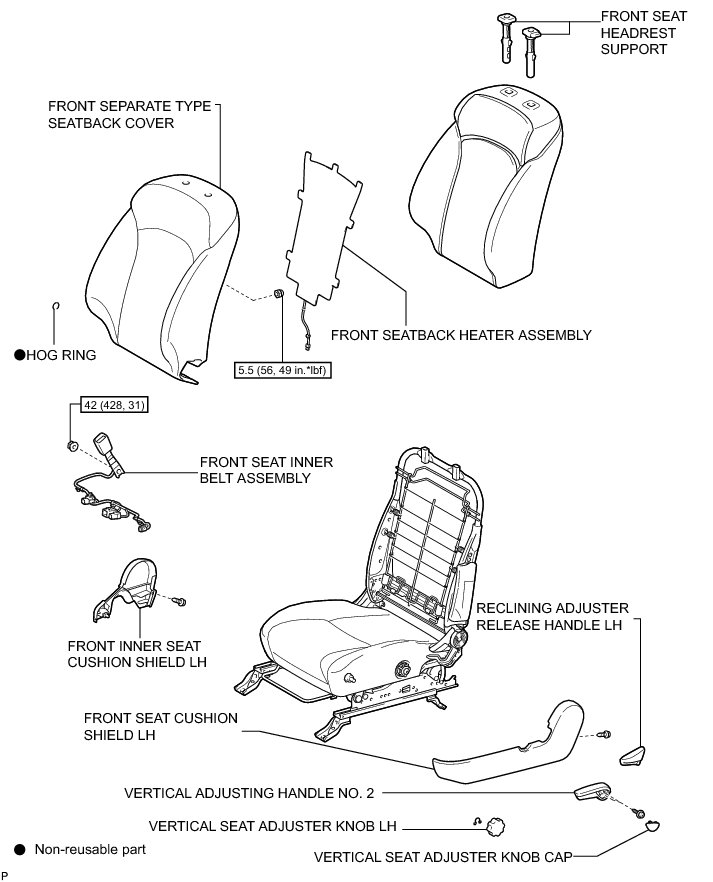

SEAT: FRONT SEATBACK HEATER (for Manual Seat): COMPONENTS
