Home
>>
Lexus
>>
2012
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Locations
>>
Front Power Seat Control System (w/ Seat Position Memory System)
Front Power Seat Control System (w/ Seat Position Memory System)

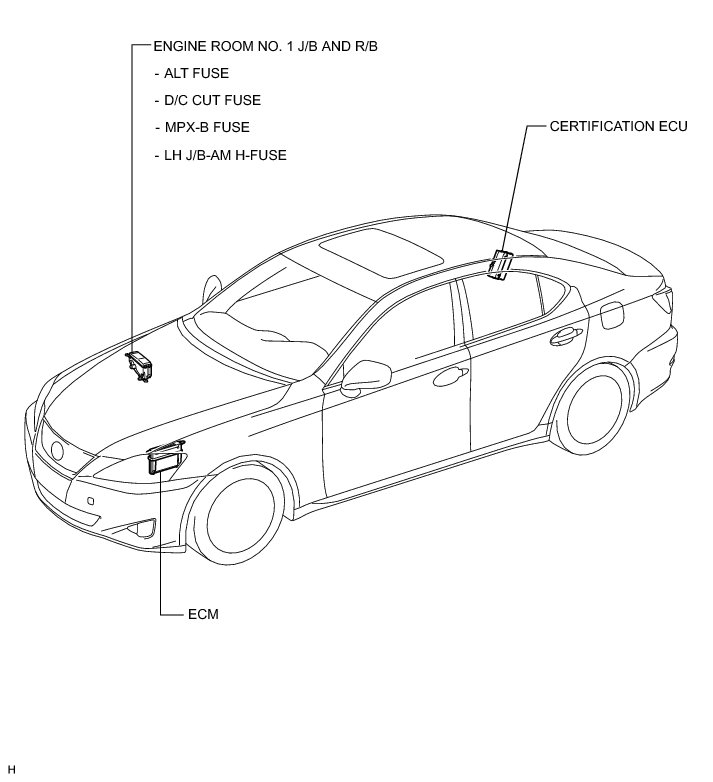

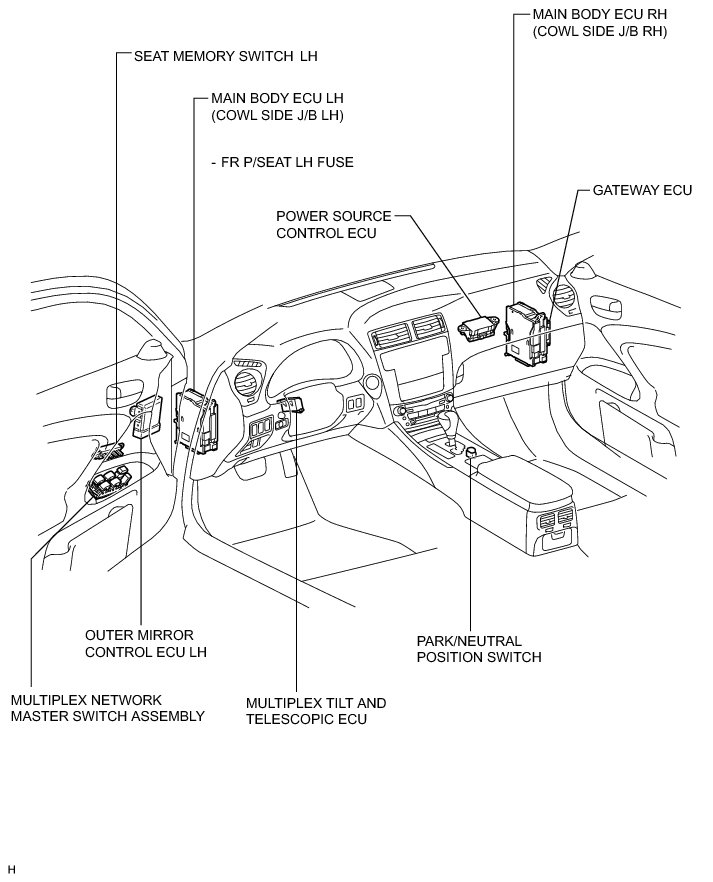

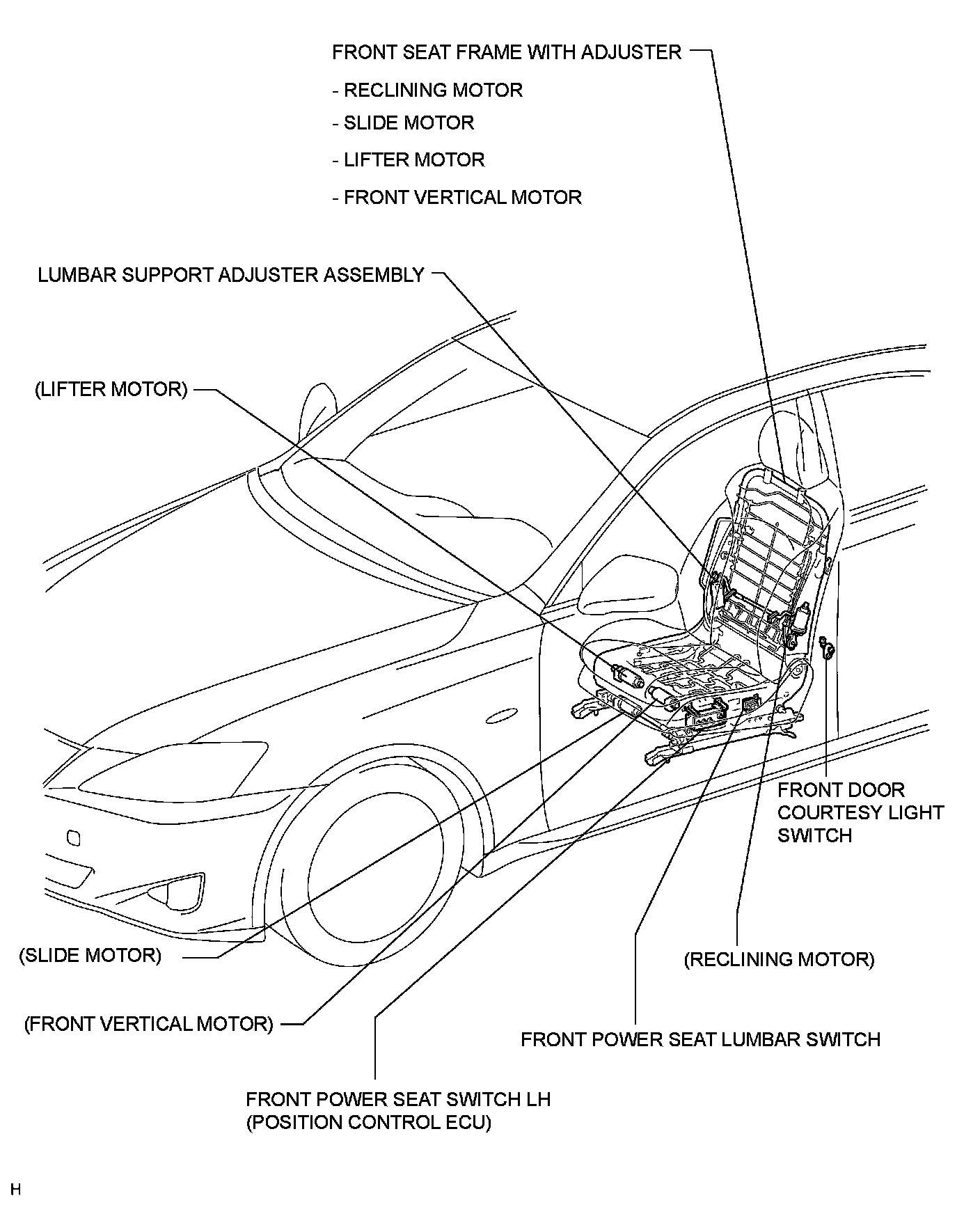

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Seat Position Memory System): PARTS LOCATION
