System Diagram

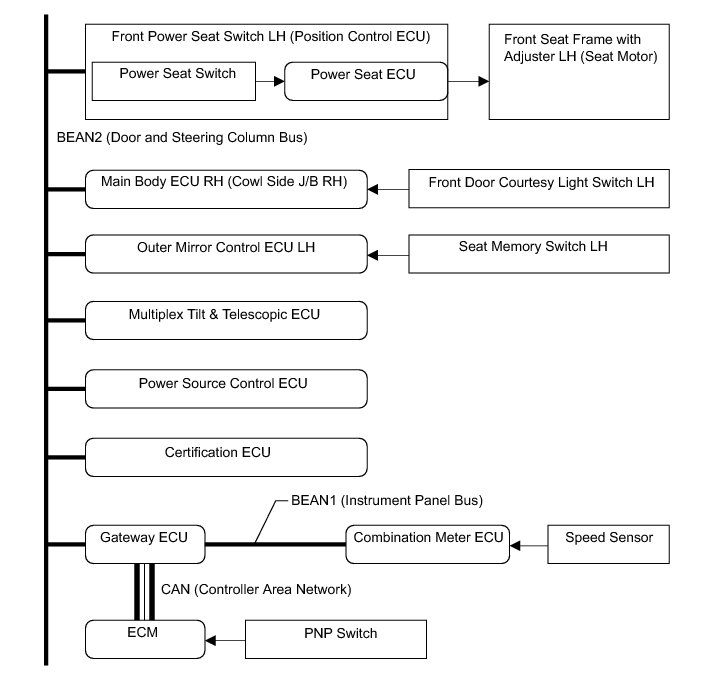

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Seat Position Memory System): SYSTEM DIAGRAM

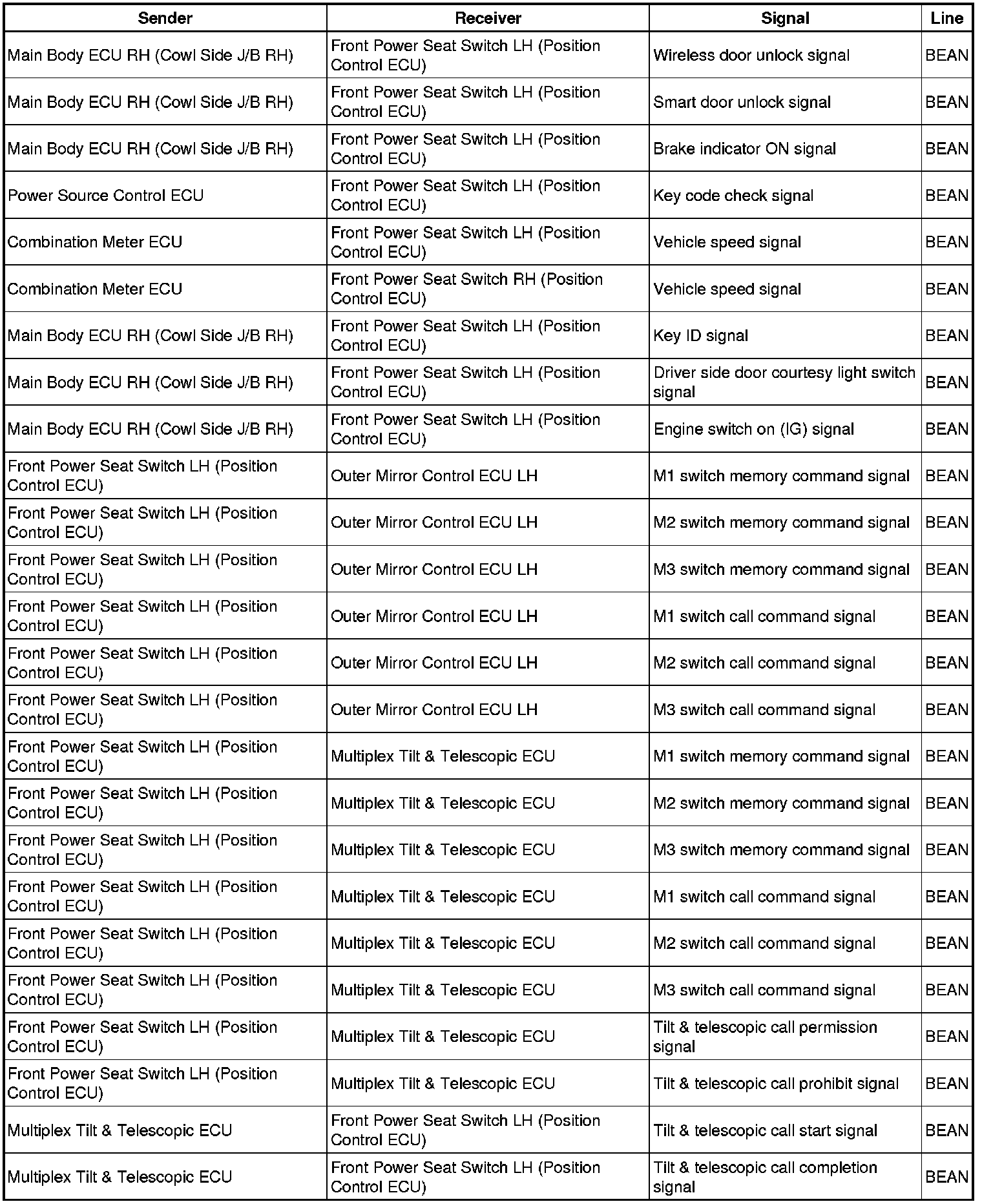

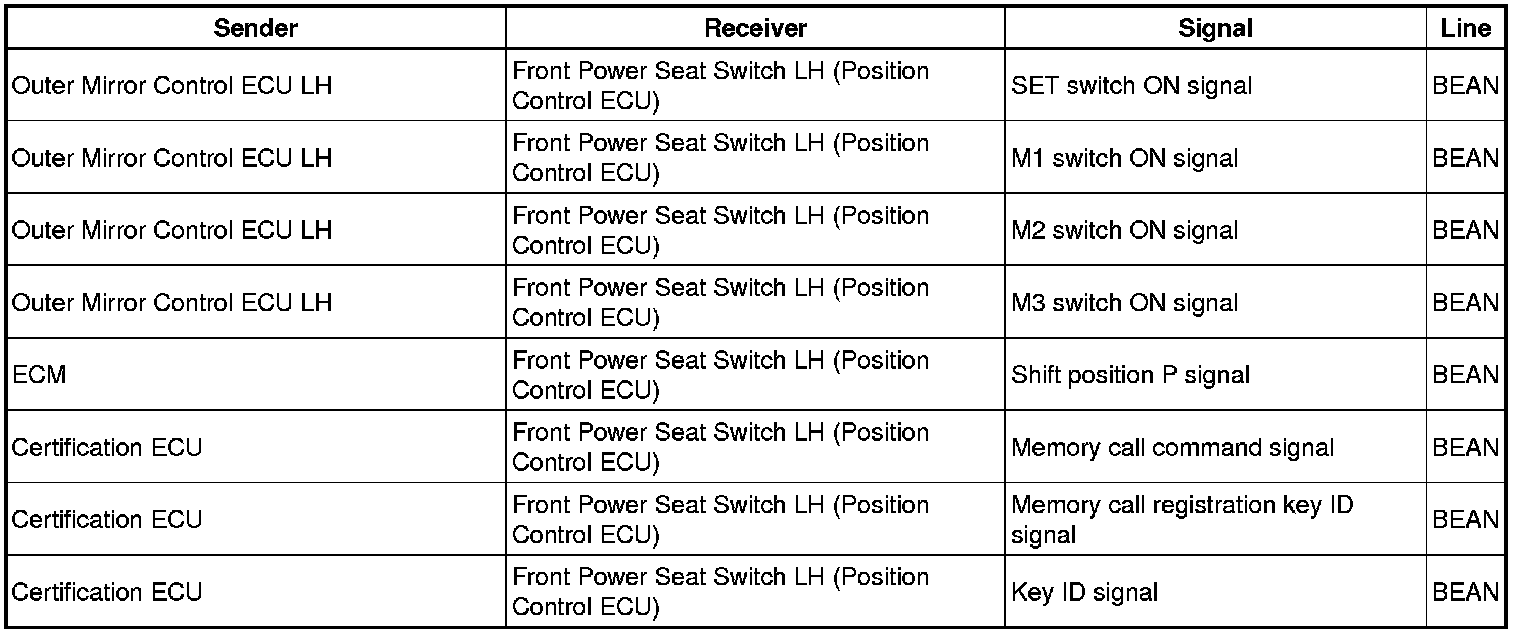

Communication table
