Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Description and Operation >> Climate Control Seat System >> System Diagram

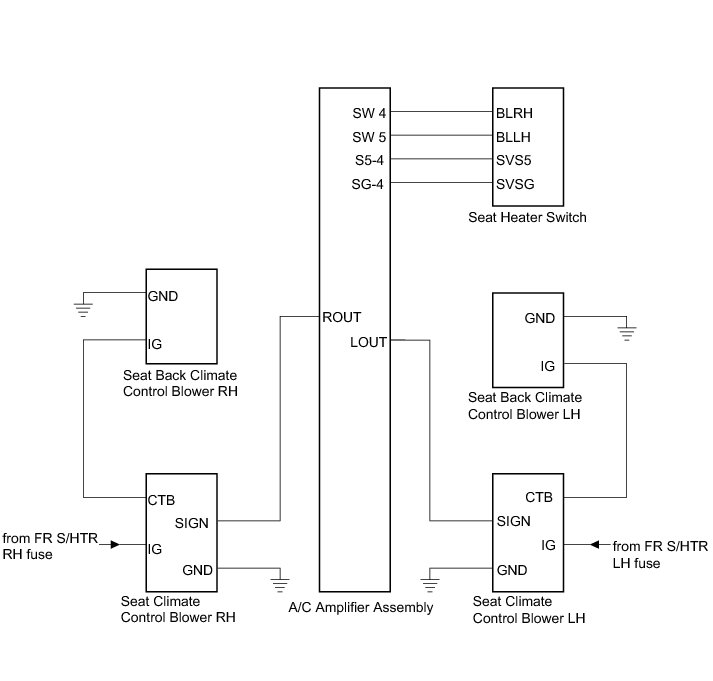

System Diagram





SEAT: CLIMATE CONTROL SEAT SYSTEM: SYSTEM DIAGRAM
