Customize Parameters





SLIDING ROOF: SLIDING ROOF SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZING FUNCTION WITH TECHSTREAM (REFERENCE)

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

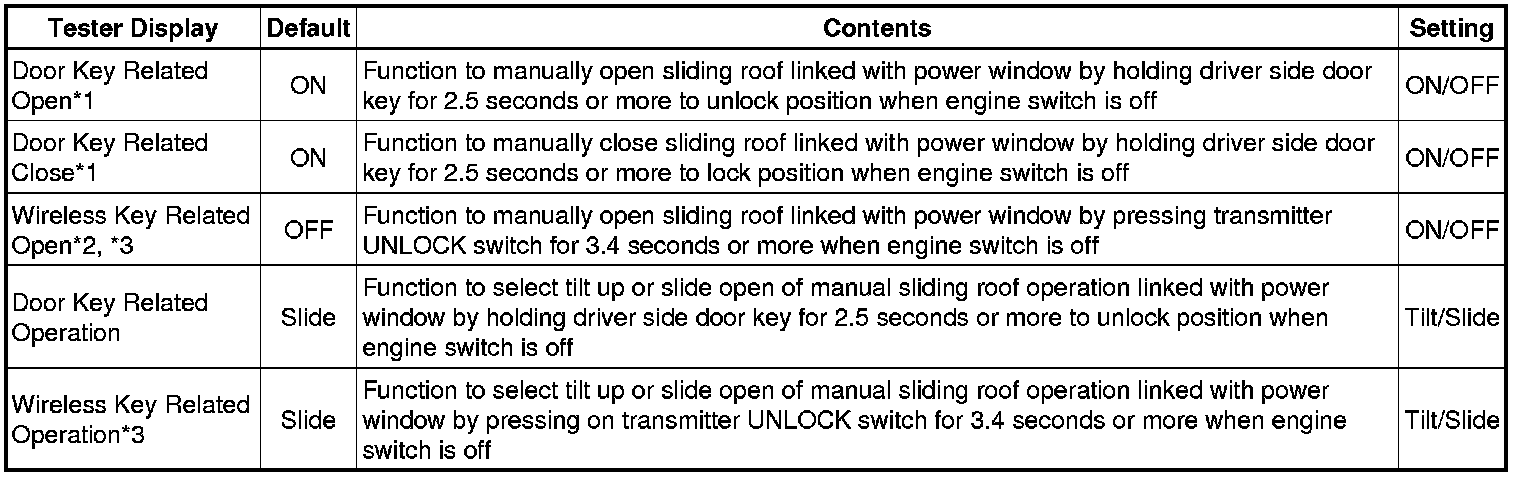

Slide Roof





* *1: This function is linked with the power window key-linked function. If the power window key-linked function is set to OFF, the sliding roof key-linked function will not operate even when it is set to ON.

* *2: This function is linked with the power window wireless transmitter-linked function. If the power window wireless transmitter-linked function is set to OFF, the sliding roof wireless transmitter-linked function will not operate even when it is set to ON.

* *3: except for models with Navigation System (for DVD)
