IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Description and Operation
>>
System Diagram

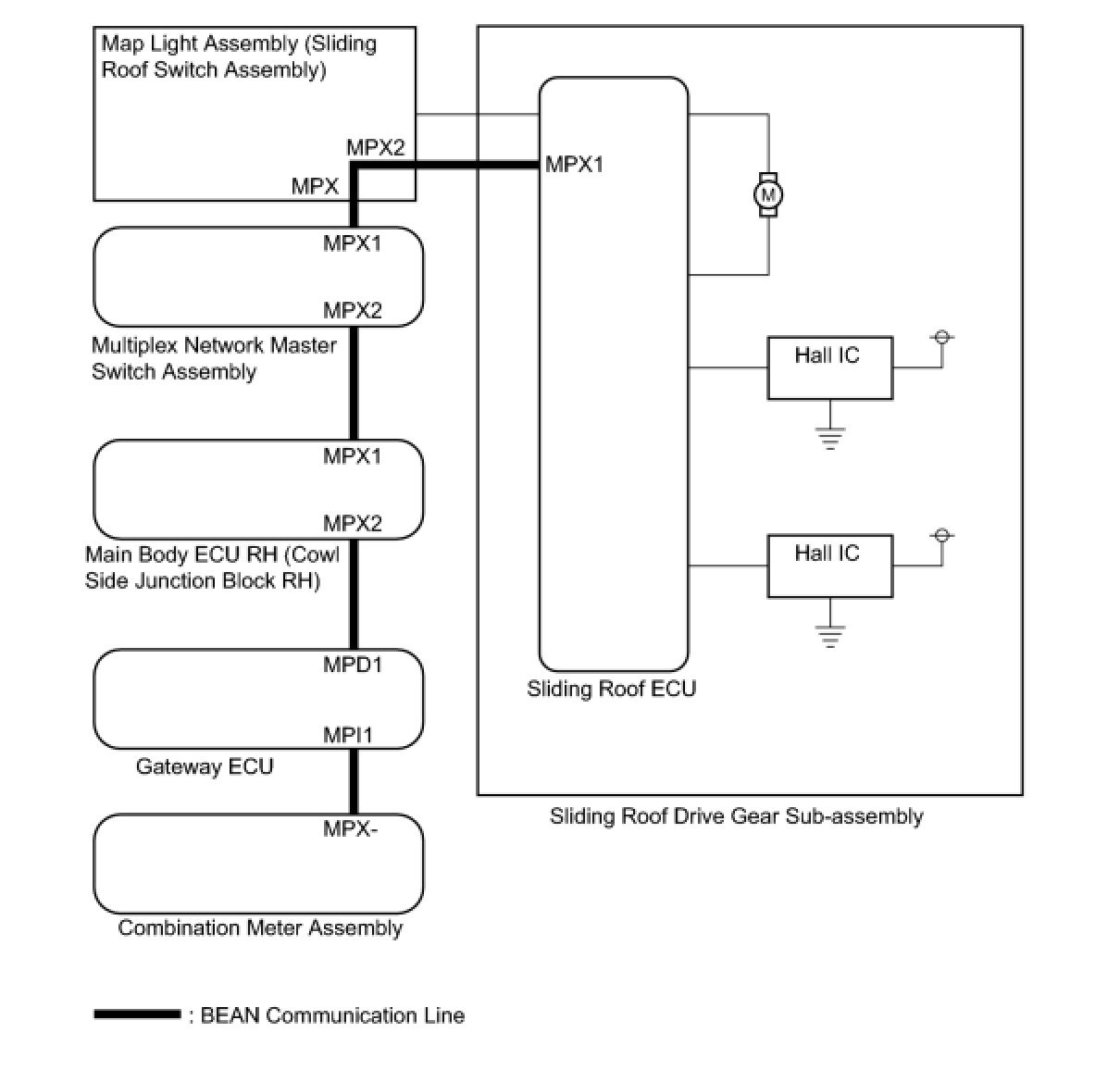

System Diagram
SLIDING ROOF: SLIDING ROOF SYSTEM: SYSTEM DIAGRAM

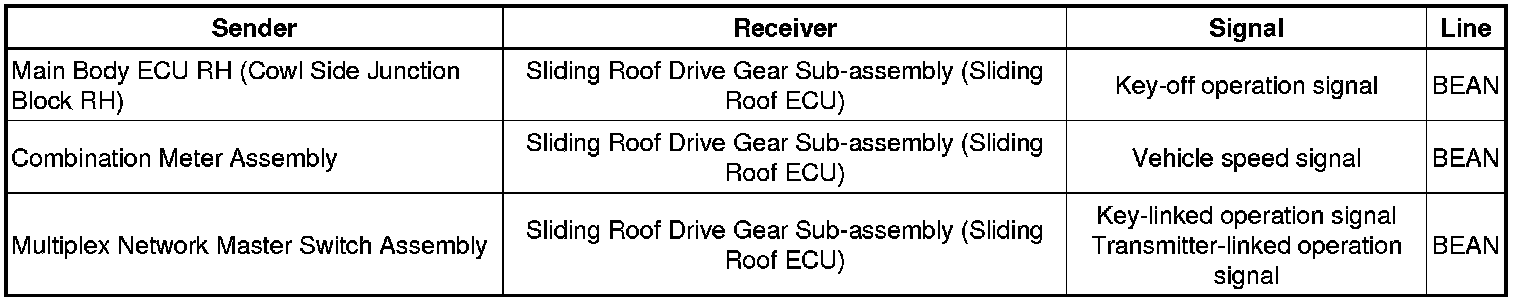

Communication Table
