System Description

SLIDING ROOF: SLIDING ROOF SYSTEM: SYSTEM DESCRIPTION

1. GENERAL

This system has the following functions: manual slide open and close; auto slide open and close; manual tilt up and down; jam protection; key off operation; key-linked open and close; and transmitter-linked open.

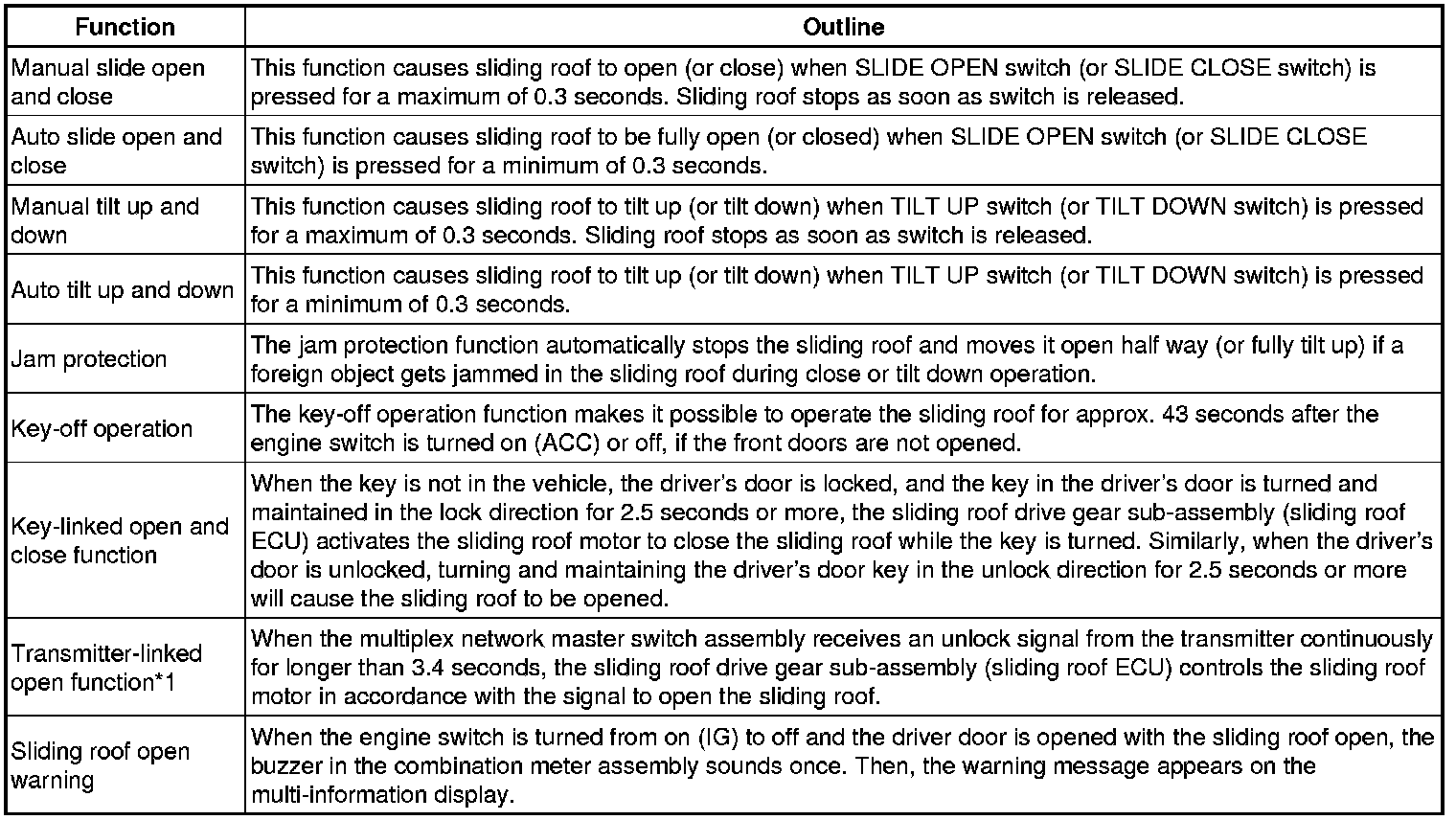

2. FUNCTION OF MAIN COMPONENT





3. SYSTEM OPERATION

The sliding roof has the following features.





* *1: except for models with Navigation System (for DVD)
