Removal

DOOR LOCK: REAR DOOR LOCK: REMOVAL

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG Disassembly

2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY Disassembly

3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly

4. REMOVE REAR DOOR TRIM COVER Disassembly

5. REMOVE REAR DOOR SERVICE HOLE COVER Disassembly

6. REMOVE REAR DOOR GLASS RUN Disassembly

7. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY Disassembly

8. REMOVE REAR DOOR GLASS SUB-ASSEMBLY Disassembly

9. REMOVE REAR DOOR LOCK ASSEMBLY

(a) Using a "torx" socket wrench (T30), remove the 3 screws and the rear door lock assembly.





(b) Move the rear door lock assembly downward and pull the release plate out of the rear door outside handle frame.

(c) Remove the door lock wiring harness seal from the rear door lock assembly.

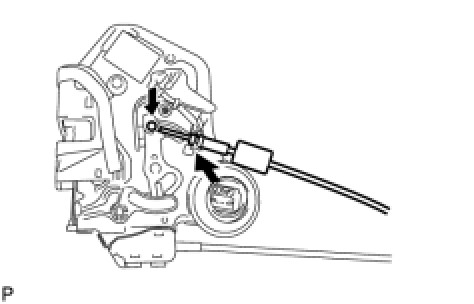

(d) Using a screwdriver, disengage the claw.





(e) Remove the rear door lock remote control cable assembly.

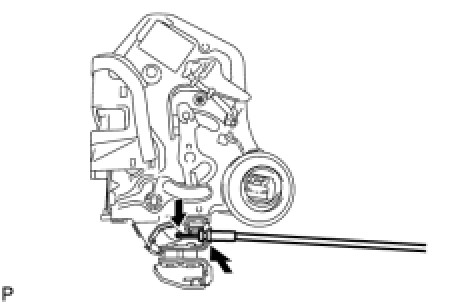

(f) Using a screwdriver, disengage the 3 claws.





(g) Remove the rear door inside locking cable assembly.
