Removal

DOOR LOCK: LUGGAGE COMPARTMENT DOOR LOCK: REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE Disassembly

3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE Disassembly

4. REMOVE LUGGAGE COMPARTMENT DOOR COVER

5. REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT

6. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY Disassembly

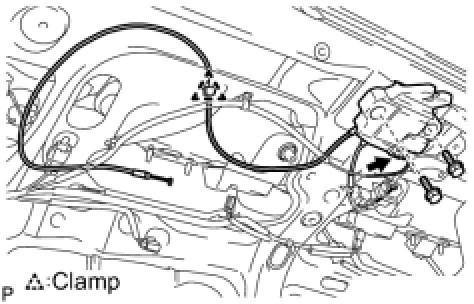

7. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

(a) Disconnect the connector.





(b) Disengage the clamp.

(c) Remove the 2 bolts and luggage compartment door lock assembly.
