Removal

INTERIOR: FRONT FLOOR FOOTREST: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE Removal

2. REMOVE FRONT DOOR OPENING TRIM COVER Removal

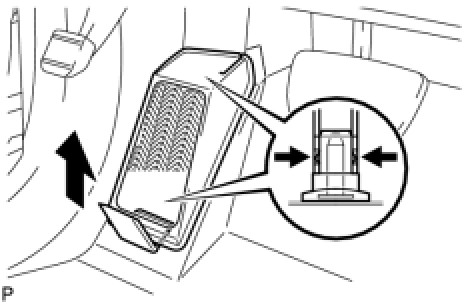

3. REMOVE FRONT FLOOR FOOTREST

(a) Using a moulding remover, disengage the 2 clips and remove the front floor footrest.





(b) Turn back the floor carpet in order to remove the 2 clips.
