Pinout Values and Diagnostic Parameters

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER SYSTEM: TERMINALS OF ECU

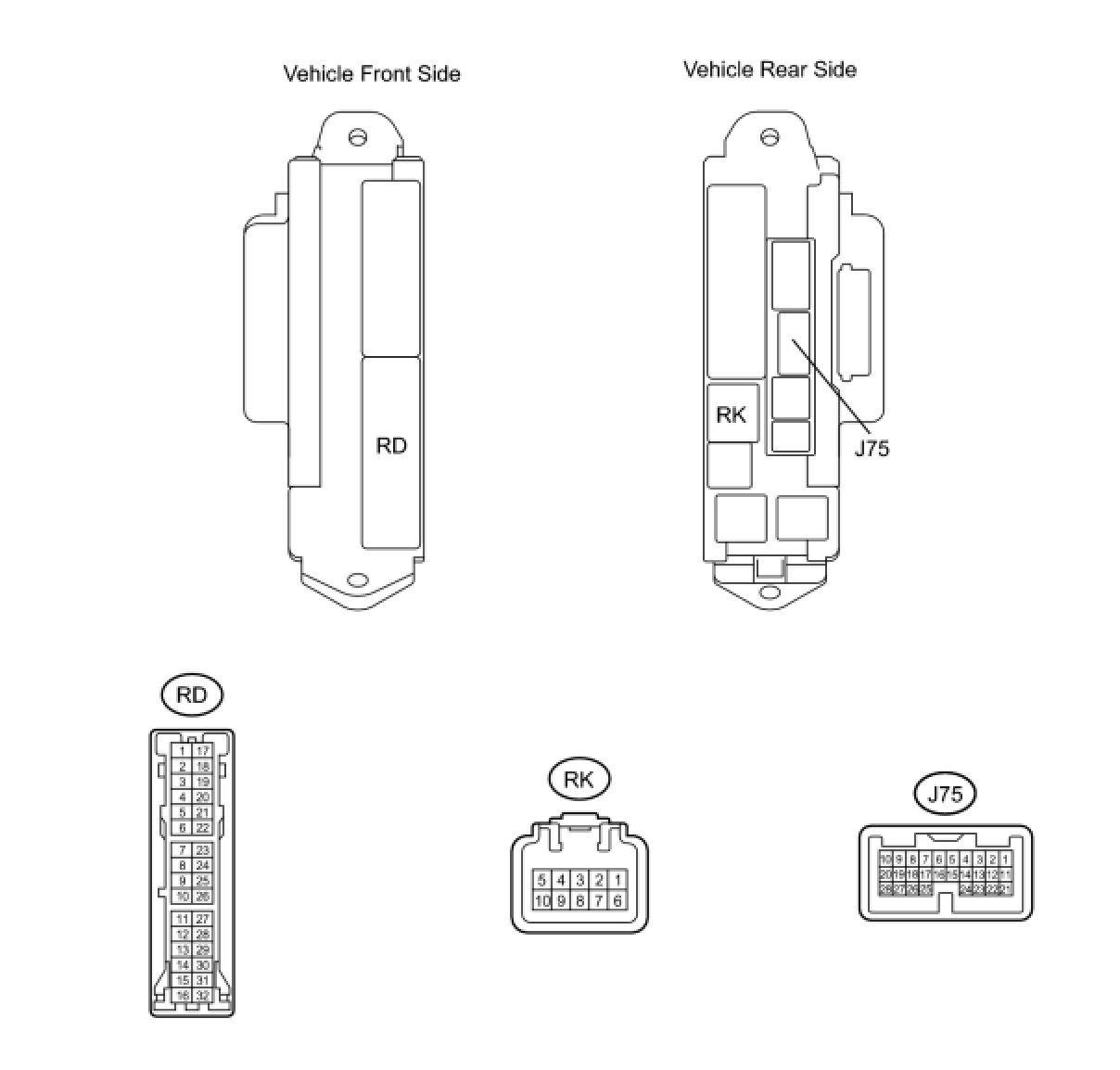

1. CHECK MAIN BODY ECU RH

(a) Disconnect the RD and RK junction block connectors.

(b) Disconnect the J75 ECU connector.

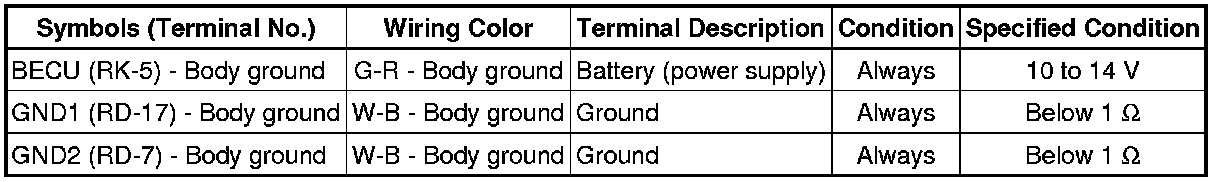

(c) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.

(d) Reconnect the RD and RK junction block connectors.

(e) Reconnect the J75 ECU connector.

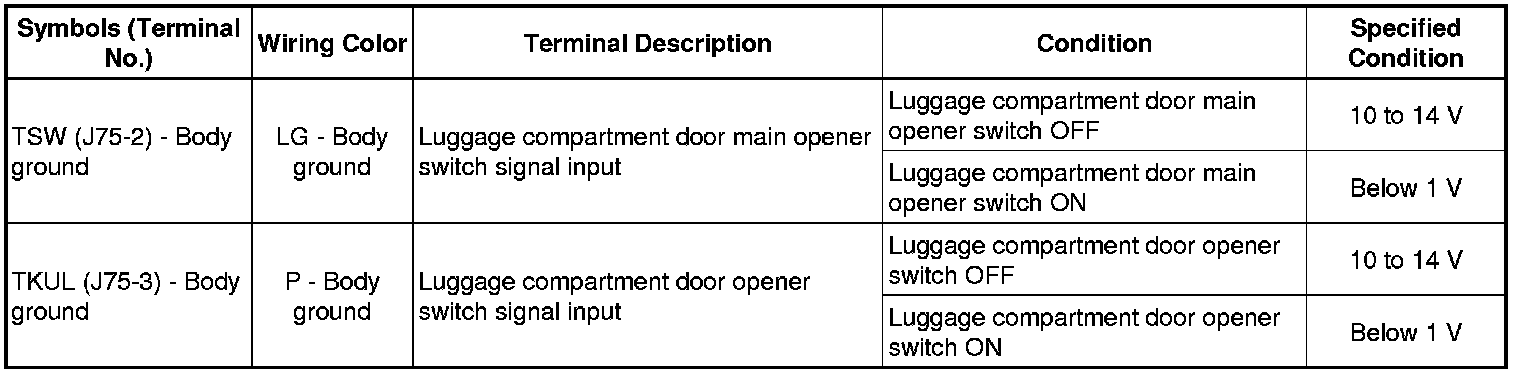

(f) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the ECU may have a malfunction.
