ENGINE HOOD / DOOR: HOOD LOCK CONTROL CABLE ASSEMBLY: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE ENGINE ROOM SIDE COVER Removal

3. REMOVE FRONT UPPER FENDER PROTECTOR Removal

4. REMOVE RADIATOR GRILLE PROTECTOR Removal

5. REMOVE FRONT BUMPER ASSEMBLY Removal

6. REMOVE LOW PITCHED HORN ASSEMBLY Removal

7. REMOVE HOOD LOCK CONTROL CABLE COVER





(a) Remove the 3 screws.

(b) Detach the claw and remove the hood lock control cable cover.

8. REMOVE HOOD LOCK ASSEMBLY

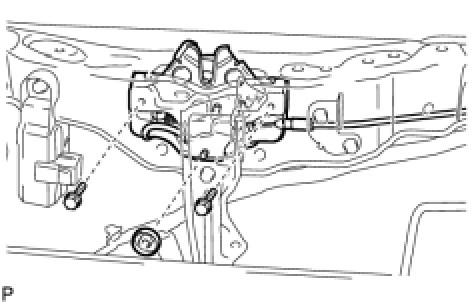

(a) Using a screwdriver, remove the hood lock nut cap as shown in the illustration.





HINT
Tape the screwdriver tip before use.

(b) Remove the 2 bolts and nut.





(c) Disconnect the hood lock control cable and connector.





(d) Remove the hood lock assembly.

9. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

(a) Detach the 3 claws.









(b) Disconnect the hood lock control cable and remove the hood lock control lever.

10. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

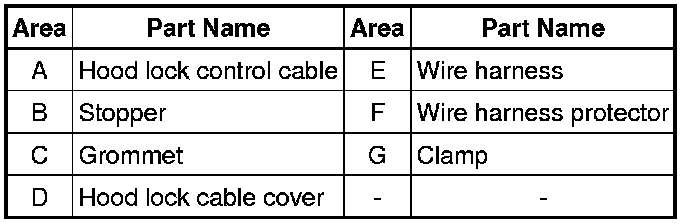

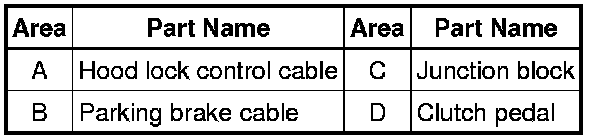

(a) Using a screwdriver, disconnect the clamps shown in the illustration.









HINT
Tape the screwdriver tip before use.

(b) Pull the cable from the engine compartment and remove it.
