Voice is not Recognized

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): Voice is not Recognized
- Voice is not Recognized

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DATA DISC

(a) Check that the data disc is not deformed or cracked.





OK:

No deformations or cracks on the data disc

NG -- REPLACE DATA DISC
OK -- Continue to next step.

2. CHECK DATA DISC

(a) Check for dirt on the data disc surface.





OK:

No dirt is on the data disc surface.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

HINT
If dirt on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NG -- CLEAN DATA DISC
OK -- Continue to next step.

3. CHECK CABIN

(a) Check that condensation is not likely to occur in the cabin, and that the temperature is not high or extremely low in the cabin.

HINT
* A humid cabin and a rapid change in temperature may lead to condensation. Condensation in the cabin may cause a short circuit.
* The audio and visual system may not operate normally when the temperature is -20°C (-4°F) or lower, or 65°C (149°F) or higher.

OK:

Condensation is not likely being produced and the temperature is not high or extremely low.

NG -- SET CABIN TO APPROPRIATE TEMPERATURE
OK -- Continue to next step.

4. CHECK MICROPHONE (OPERATION CHECK)

(a) Enter the "Microphone & Voice Recognition Check" screen. Refer to Check Mic & Voice Recognition in Operation Check Audio And Visual System (w/o Navigation System with Multi-display).





(b) When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.

(c) Push the recording switch and perform voice recording.

HINT
* Select the recording switch with the blower motor of the air conditioning system stopped. If an outlet of the air conditioning system is facing the microphone, noise may be recorded.
* Voice can be recorded up to 5 seconds.

(d) Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.

OK:

All check results are normal.

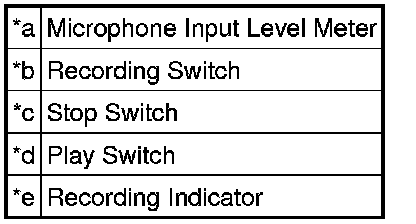

Text in Illustration





NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

OK -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal
