Problem Symptoms Table
AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): PROBLEM SYMPTOMS TABLE
HINT
* Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Inspect the fuses and relays related to this system before inspecting the suspected areas below.

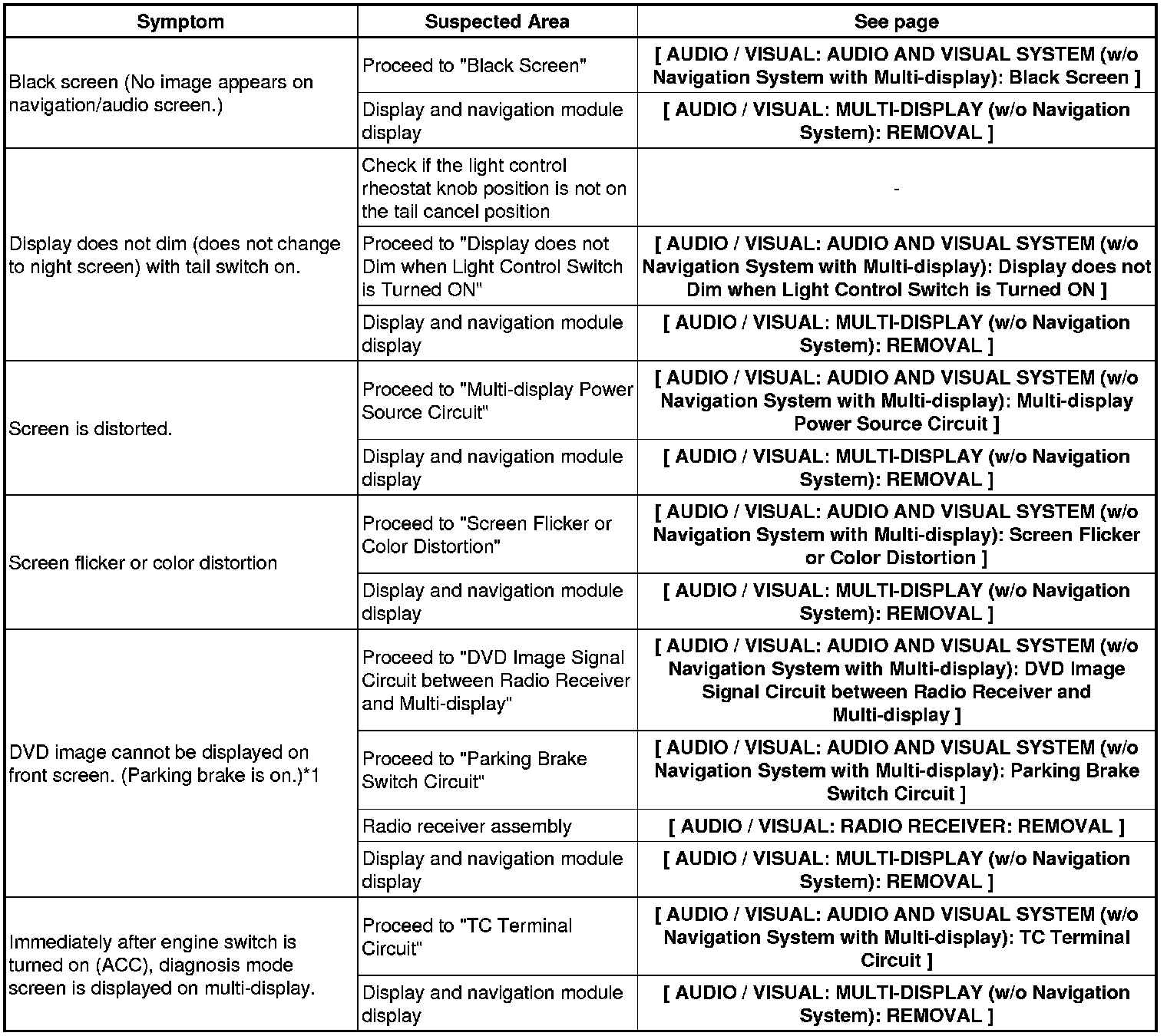

Display Function
* *1: w/ DVD Changer Model

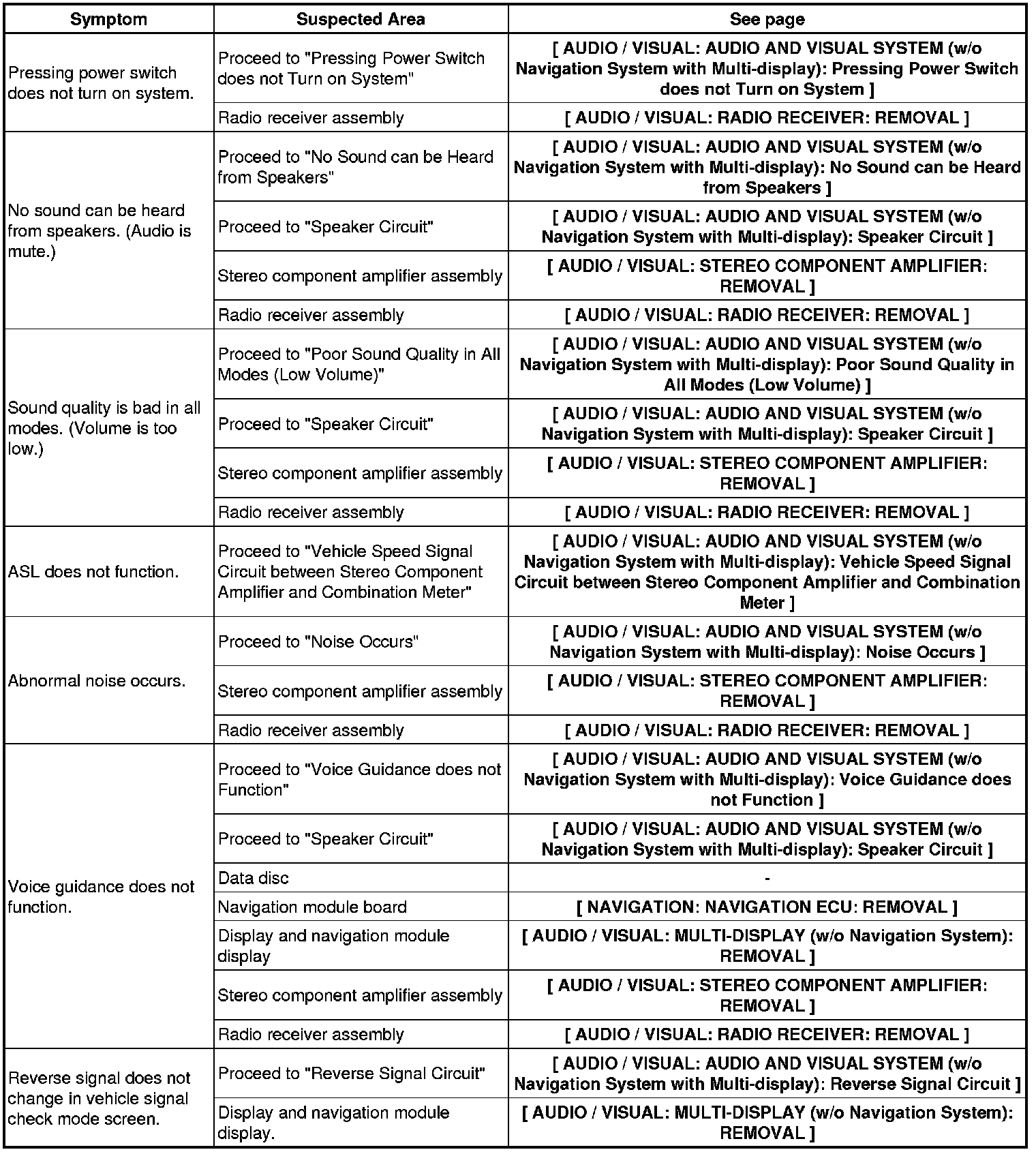

General Audio Function

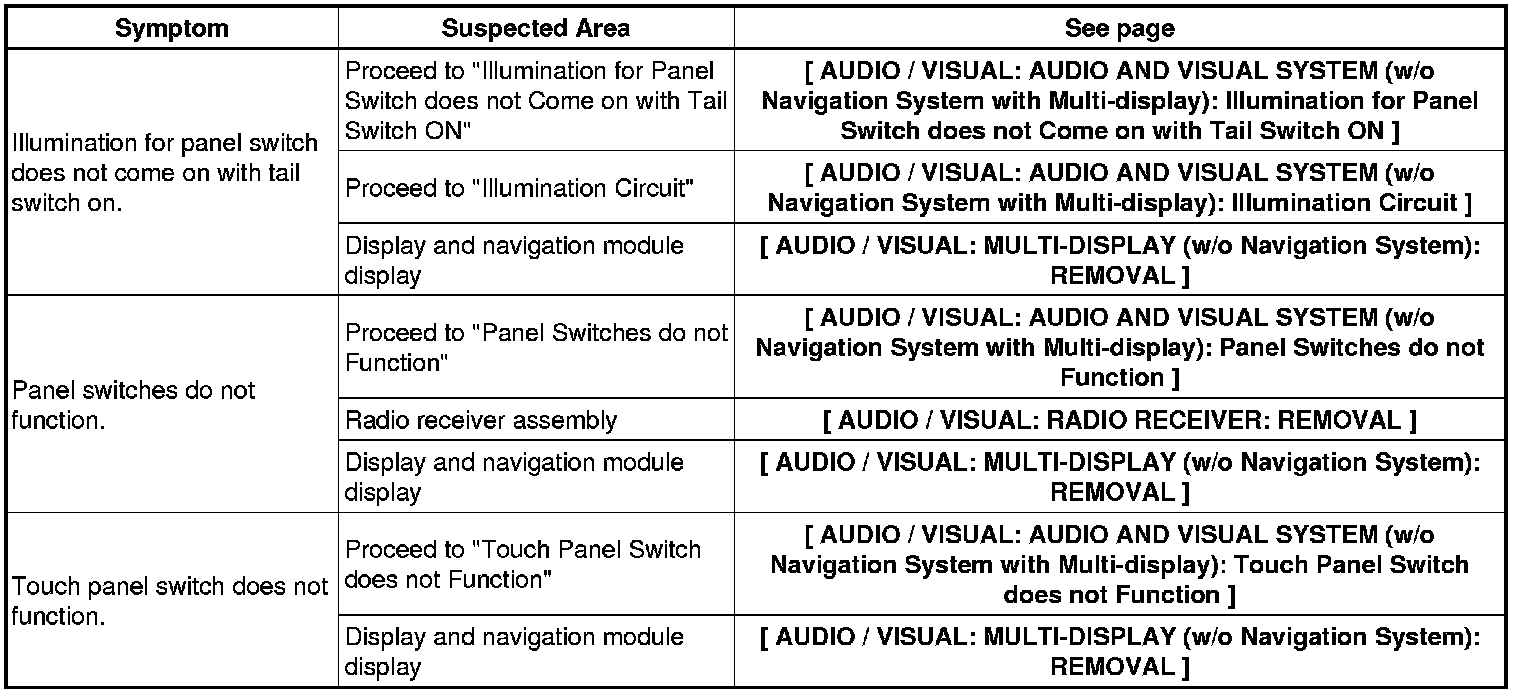

Panel Switch and Touch Switch Function

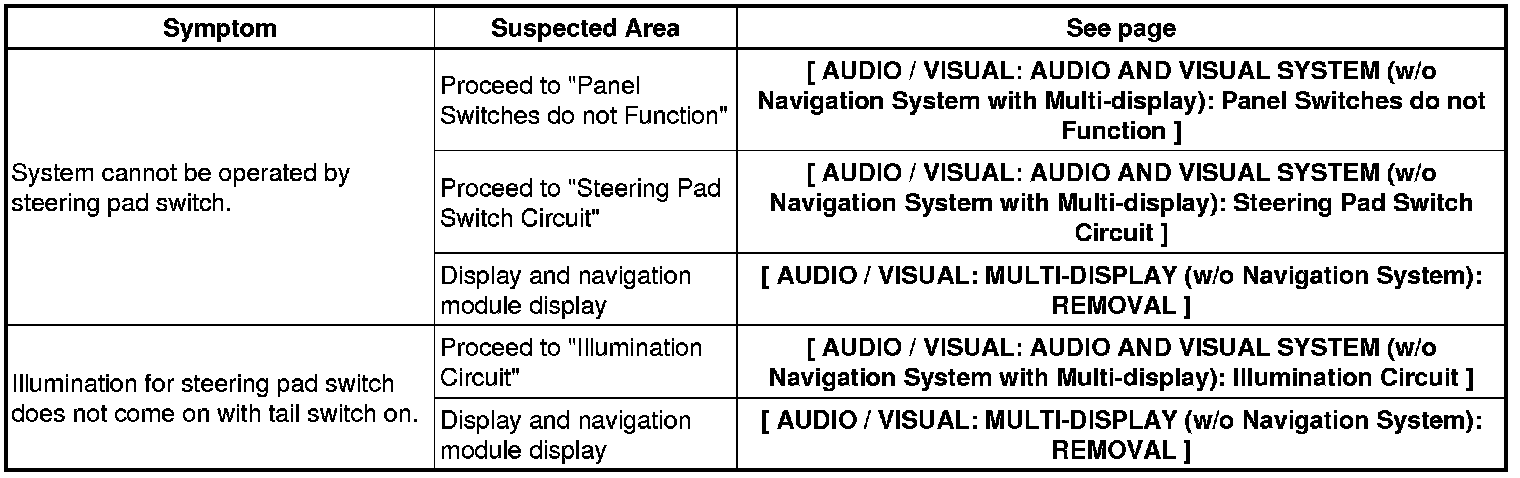

Steering Pad Switch Function

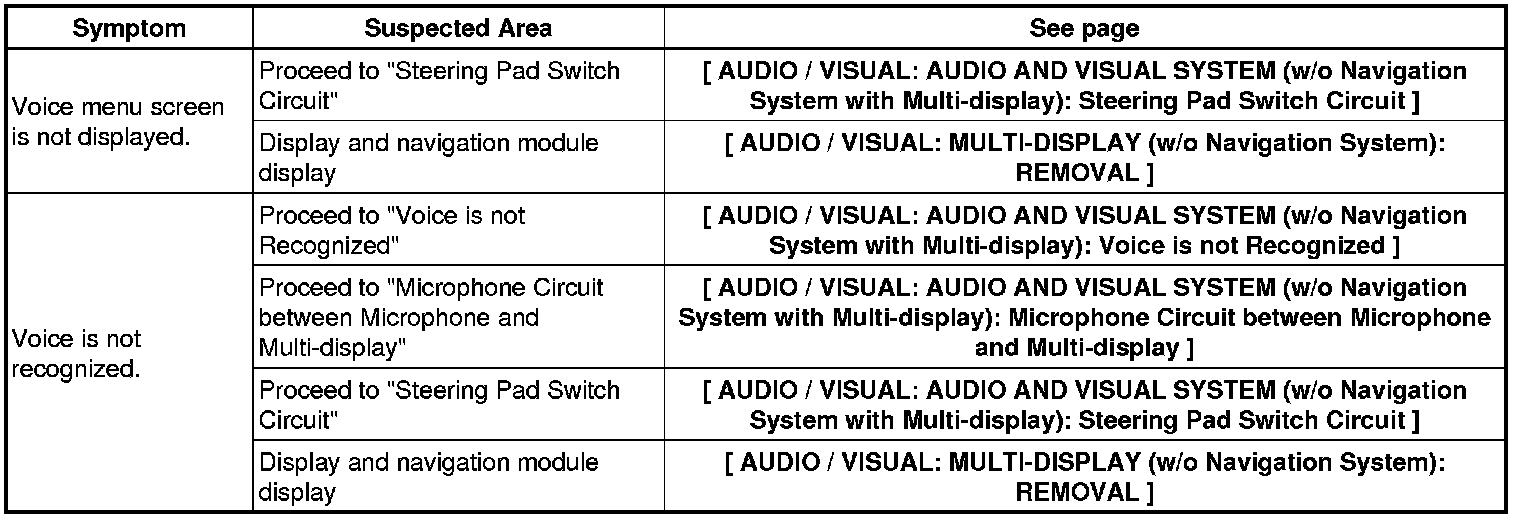

Voice Recognition Function

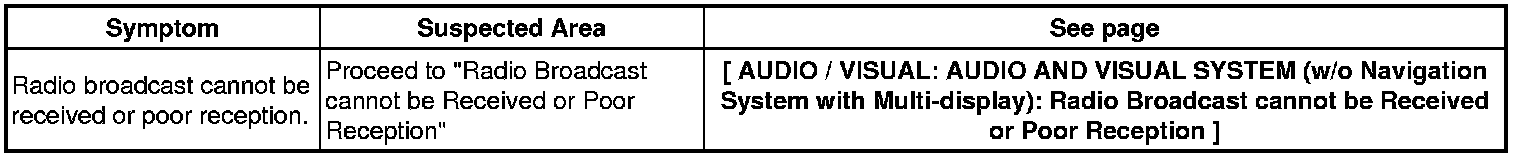

FM or AM Radio Function
CD or DVD Player Function

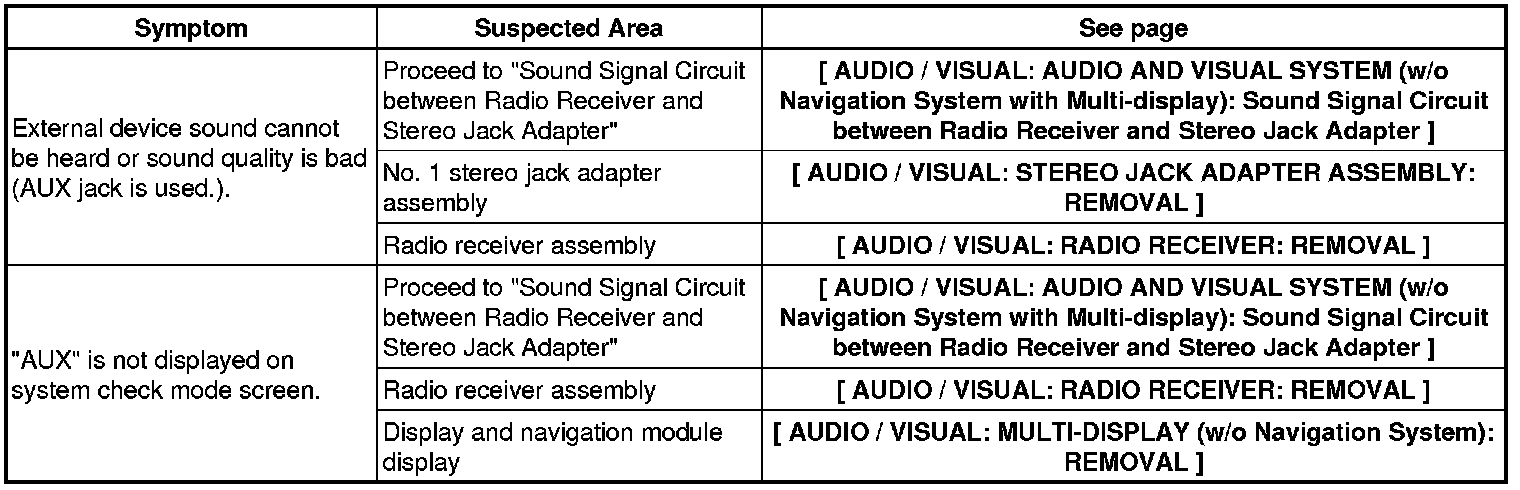

AUX Function
"Bluetooth" Hands-free Function

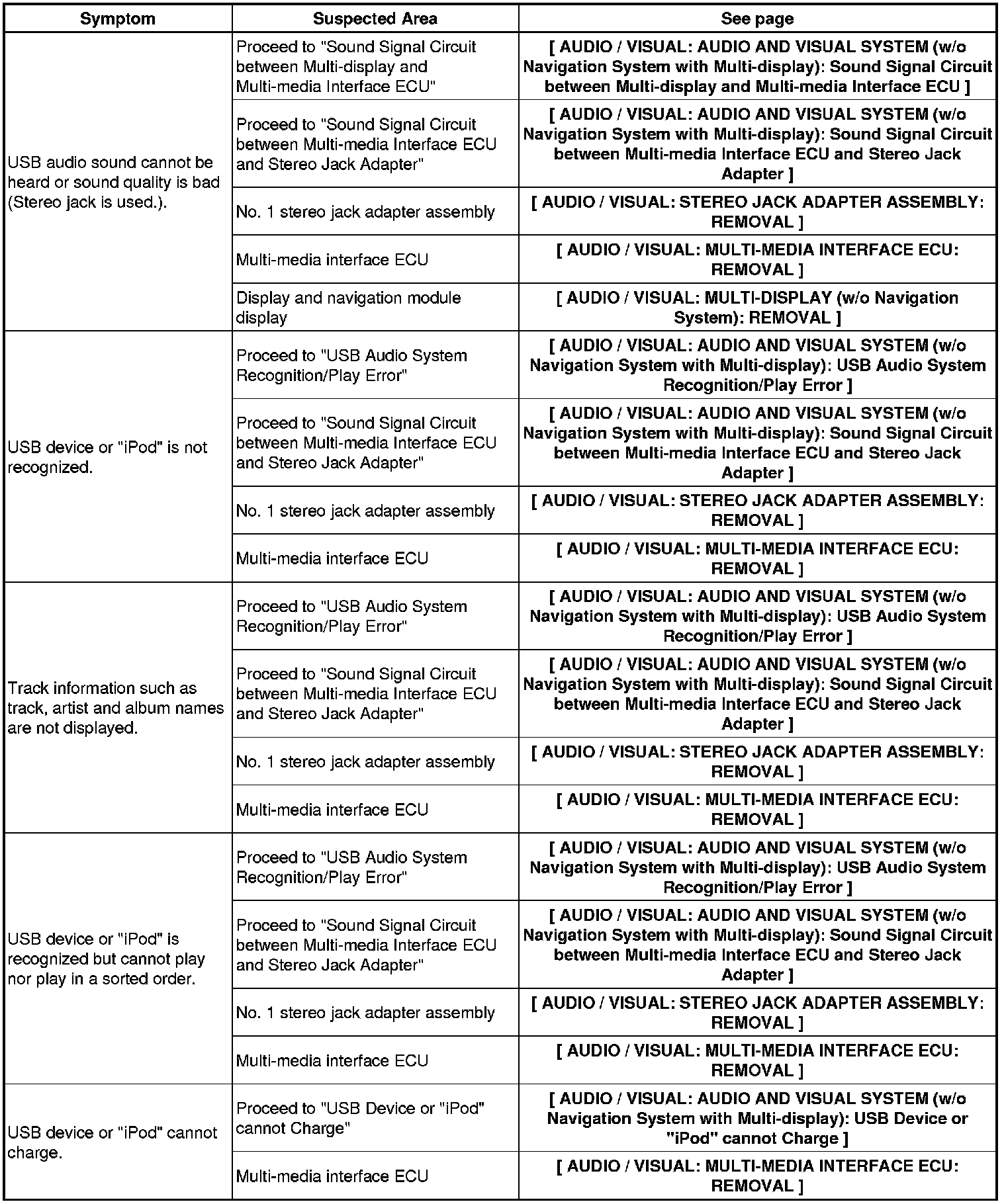

USB Audio System Function
