Illumination for Panel Switch does not Come on with Tail Switch ON

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): Illumination for Panel Switch does not Come on with Tail Switch ON
- Illumination for Panel Switch does not Come on with Tail Switch ON

INSPECTION PROCEDURE

PROCEDURE

1. CHECK VEHICLE SIGNAL (OPERATION CHECK)

(a) Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle Signal in Operation Check Audio And Visual System (w/o Navigation System with Multi-display).





(b) Check that the display changes between ON and OFF according to the light control switch operation.

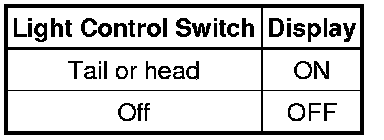

OK:





HINT
This display is updated once per second. As a result, it is normal for the display to lag behind the actual switch operation.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

OK -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal
