Audio And Visual System (w/o Navigation System without Multi-display)

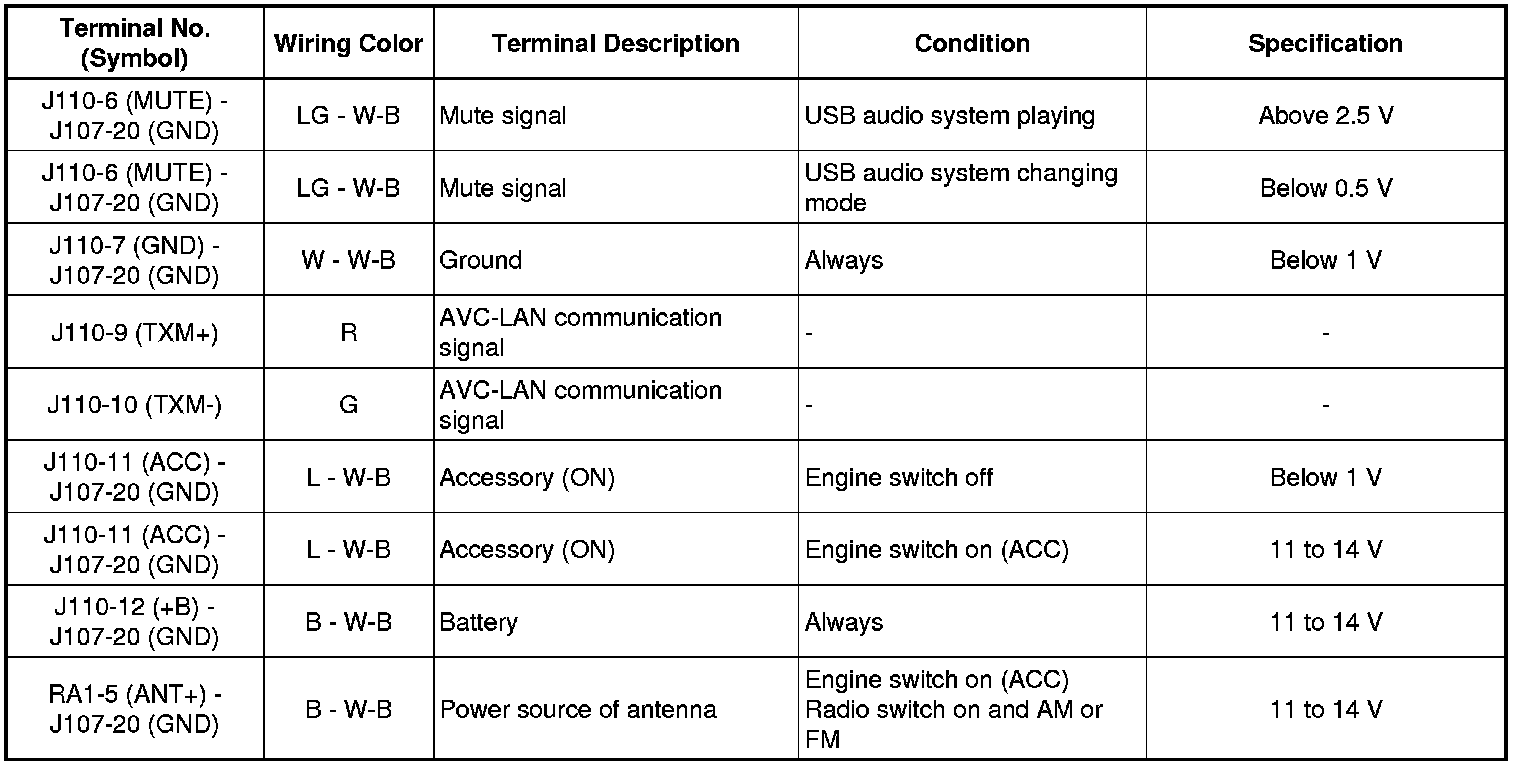

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): TERMINALS OF ECU

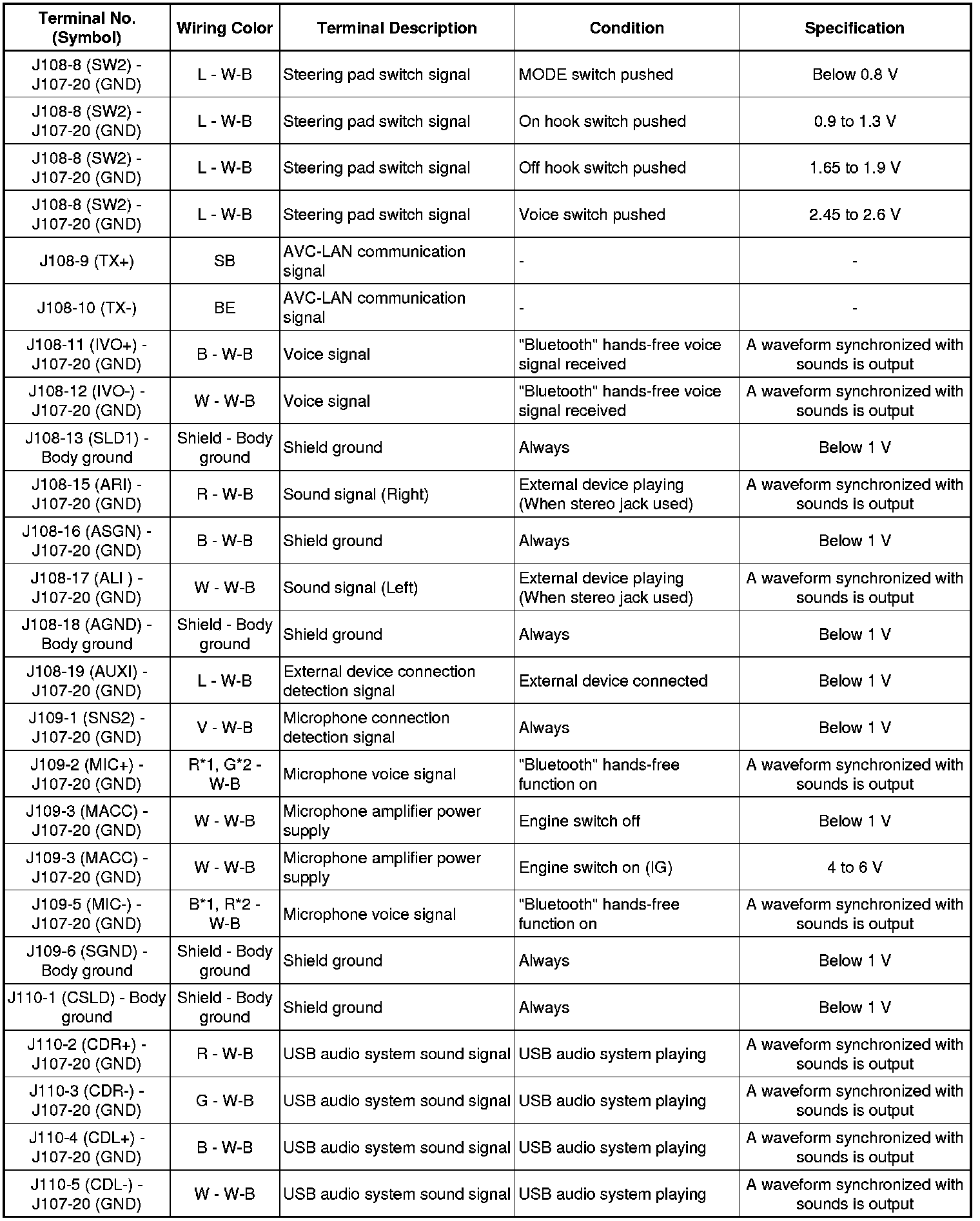

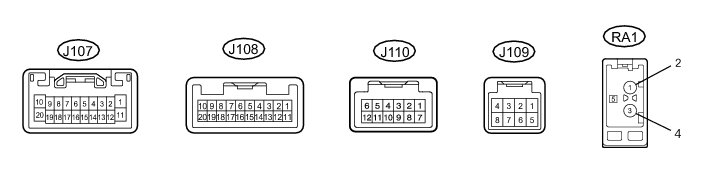

1. RADIO RECEIVER ASSEMBLY

















* *1: w/o Manual (SOS) Switch

* *2: w/ Manual (SOS) Switch

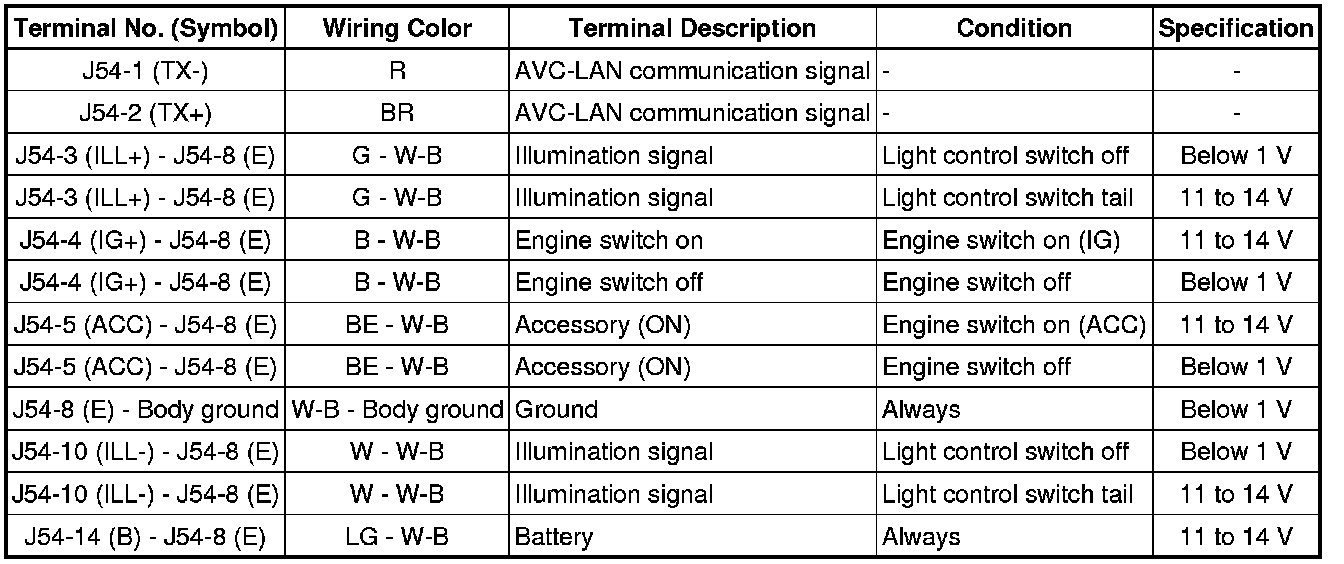

2. INTEGRATION CONTROL AND PANEL ASSEMBLY

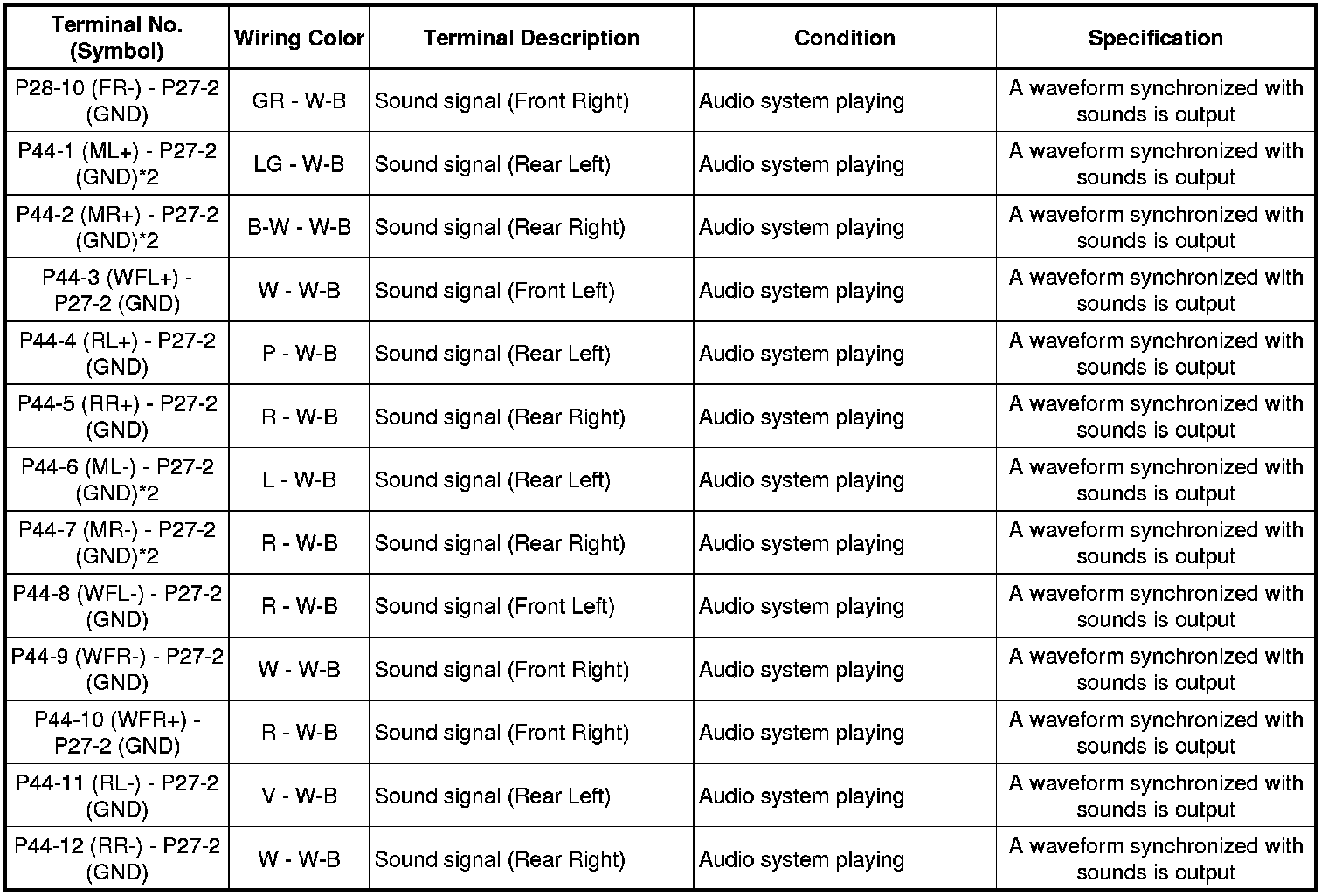

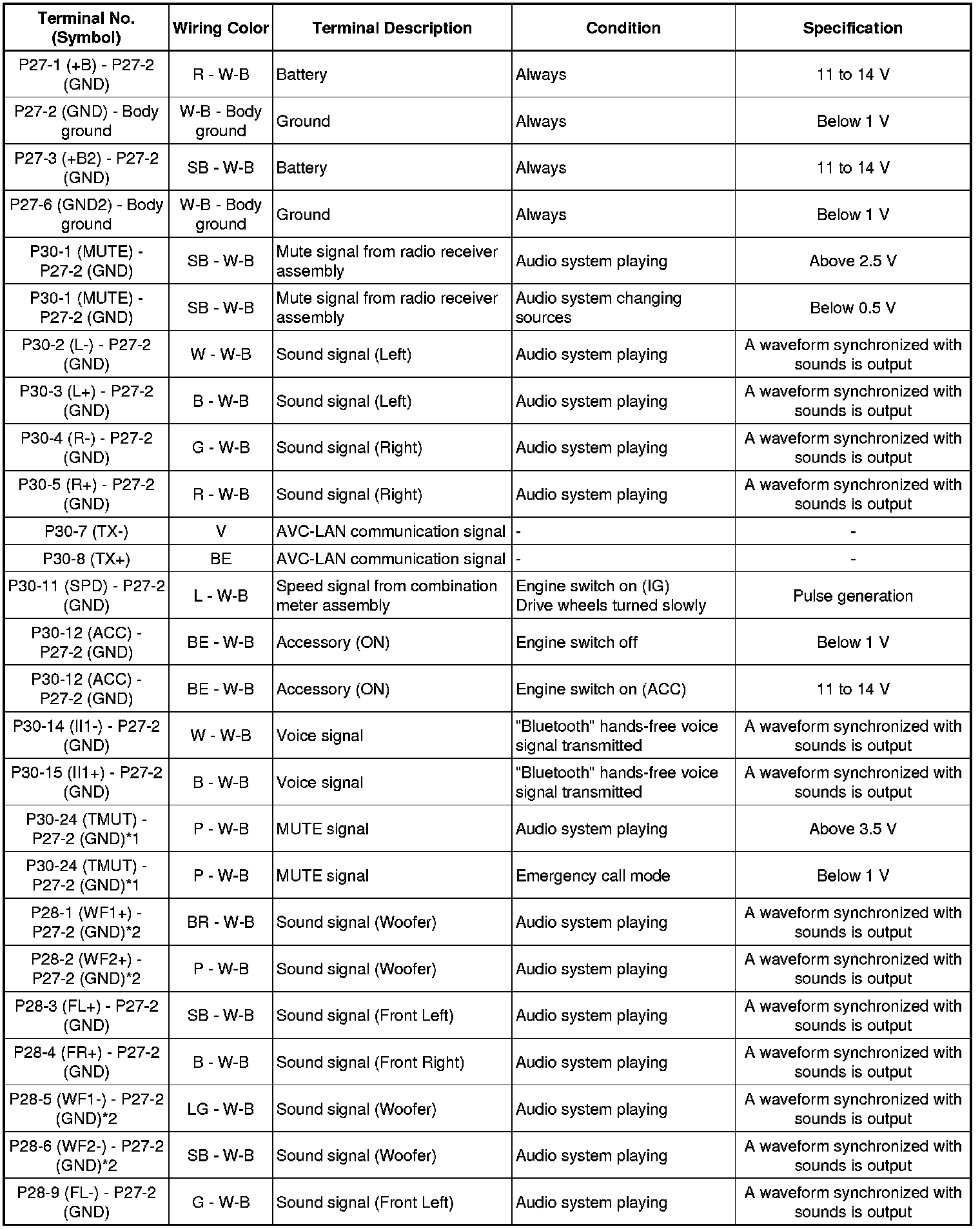

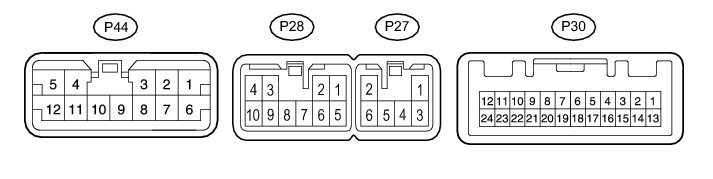

3. STEREO COMPONENT AMPLIFIER ASSEMBLY













* *1: w/ Manual (SOS) Switch

* *2: for 13 Speakers

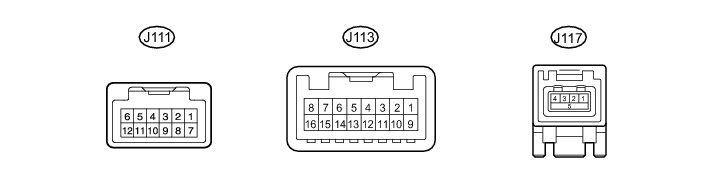

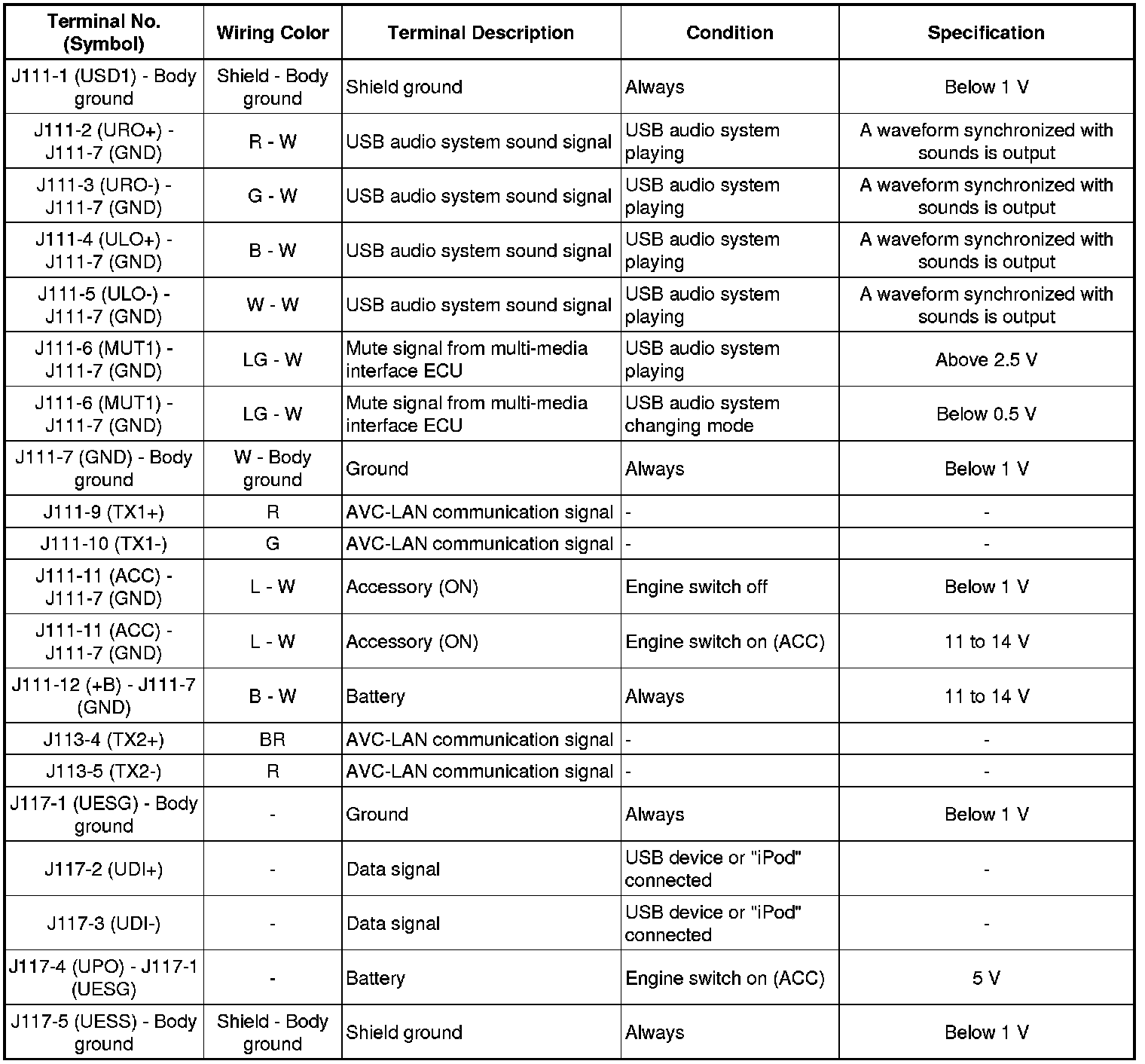

4. MULTI-MEDIA INTERFACE ECU









5. Network Gateway ECU Multiplex Communication System
