Operation Check

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): OPERATION CHECK

1. CHECK PANEL & STEERING SWITCH

HINT
* The display and navigation module display panel switches, radio receiver assembly panel switches and steering switches are checked in the following procedure.
* Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

(a) Enter diagnostic mode Audio And Visual System (w/o Navigation System with Multi-display).

(b) Select "Function Check/Setting" from the "Service Menu" screen.





(c) Select "Panel & Steering Switch" from the "Function Check/Setting" screen.





(d) Panel & Steering Switch Check Mode

(1) Operate each switch and check that the switch names and condition are correctly displayed.

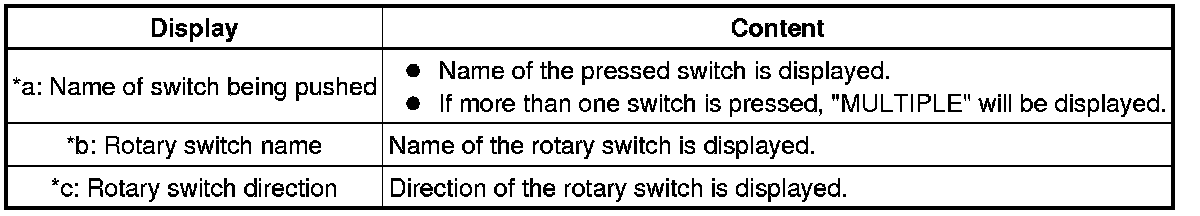

Screen Description





2. CHECK TOUCH SWITCH

HINT
* The touch switches on the screen are checked in the following procedure.
* Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

(a) Enter diagnostic mode Audio And Visual System (w/o Navigation System with Multi-display).

(b) Select "Function Check/Setting" from the "Service Menu" screen.





(c) Select "Touch Switch" from the "Function Check/Setting" screen.





(d) Touch Switch Check





(1) Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

HINT
* A "+" mark is displayed where the display is touched.
* The "+" mark remains on the display even after the finger is removed.

3. CHECK MIC & VOICE RECOGNITION

HINT
* The microphone and microphone input level are checked in the following procedure.
* Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

(a) Enter diagnostic mode Audio And Visual System (w/o Navigation System with Multi-display).

(b) Select "Function Check/Setting" from the "Service Menu" screen.





(c) Select "Mic & Voice Recognition" from the "Function Check/Setting" screen.





(d) Microphone & Voice Recognition Check

(1) When speaking into the microphone, check that the microphone input level meter changes according to the input level.





(2) Push the recording switch and perform voice recording.

(3) Check that the recording indicator remains on while recording and that the recording can be played normally.

HINT
* For details of this function, refer to Diagnosis Display Detailed Description System Description.
* This function is controlled by the display and navigation module display.
* Select the recording switch with the blower motor of the air conditioning system stopped. If an outlet of the air conditioning system is facing the microphone, noise may be recorded.

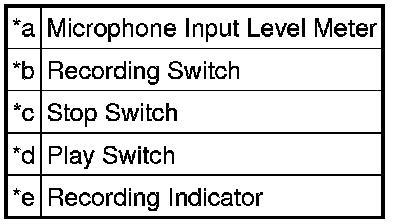

Text in Illustration





4. CHECK COLOR BAR

HINT
* The display color on the screen is checked in the following procedure.
* Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

(a) Enter diagnostic mode Audio And Visual System (w/o Navigation System with Multi-display).

(b) Select "Function Check/Setting" from the "Service Menu" screen.





(c) Select "Color Bar" from the "Function Check/Setting" screen.

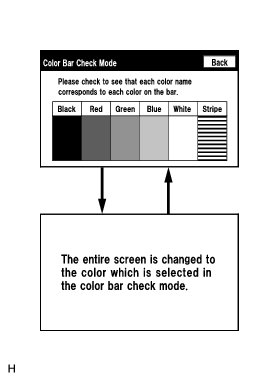

(d) Color Bar Check Mode

(1) Select a color bar from the "Color Bar Check Mode" screen.





(2) Check the display color.

HINT
* The entire screen turns to the color or stripe selected.
* Touching the display will return to the "Color Bar Check" screen.

5. CHECK GPS & VEHICLE SENSORS

HINT
* GPS information, vehicle signals and sensor signals are checked in the following procedure.
* Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

(a) Enter diagnostic mode Audio And Visual System (w/o Navigation System with Multi-display).

(b) Select "Function Check/Setting" from the "Service Menu" screen.





(c) Select "GPS & Vehicle Sensors" from the "Function Check/Setting" screen.





(d) GPS information

(1) When GPS information is displayed, check the GPS conditions.





HINT
* This screen is updated once per second when input signals to the vehicle are changed.
* For details of this function, refer to Diagnosis Display Detailed Description in System Description System Description.

(e) Select "Sensors Check" from the "GPS Information" screen.

(f) Vehicle Sensors

(1) Check all the signals and sensors when vehicle signal information is displayed.





HINT
* This screen is updated once per second when input signals to the vehicle are changed.
* This screen displays vehicle signals input to the display and navigation module display.
* For details of this function, refer to Diagnosis Display Detailed Description in System Description System Description.

6. CHECK VEHICLE SIGNAL

HINT
* Vehicle signals received by the display and navigation module display are checked in the following procedure.
* Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

(a) Enter diagnostic mode Audio And Visual System (w/o Navigation System with Multi-display).

(b) Select "Function Check/Setting" from the "Service Menu" screen.





(c) Select "Vehicle Signal" from the "Function Check/Setting" screen.





(d) Vehicle Signal Check Mode

(1) When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.





HINT
* Only conditions having inputs are displayed.
* This screen displays vehicle signals input to the display and navigation module display.
* For details of this function, refer to Diagnosis Display Detailed Description in System Description System Description.

7. CHECK HANDS-FREE VOLUME SETTING

HINT
* The hands-free volume of a "Bluetooth" compatible phone can be adjusted using the following procedure.
* Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

(a) Enter diagnostic mode Audio And Visual System (w/o Navigation System with Multi-display).

(b) Select "Function Check/Setting" from the "Service Menu" screen.





(c) Select "Hands-free Volume Setting" from the "Function Check/Setting" screen.





(d) Hands-free Volume Setting

(1) Check the hands-free volume level.

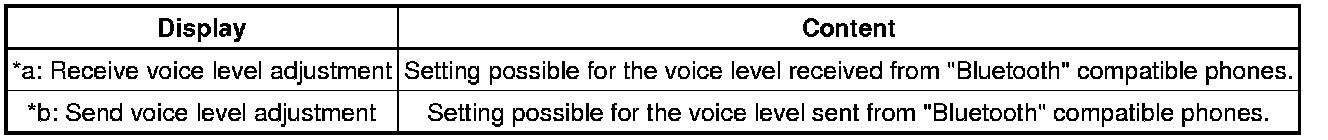

Screen Description





NOTICE:
Sound quality may deteriorate when the receive voice level is changed more than necessary. For this reason, check that the receive voice quality is still acceptable after changing this setting.

HINT
Sound quality of sent voice may deteriorate when the send voice level is adjusted.
