Sound Signal Circuit Between Navigation ECU and Multi-Media Interface ECU

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System): Sound Signal Circuit between Navigation ECU and Multi-media Interface ECU
- Sound Signal Circuit between Navigation ECU and Multi-media Interface ECU

DESCRIPTION

The multi-media interface ECU sends a sound signal to the display and navigation module display through this circuit.

If there is an open or short in the circuit, sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier assembly, radio receiver assembly, display and navigation module display, DCM (telematics transceiver)*1 or speakers.

* *1: w/ Manual (SOS) Switch

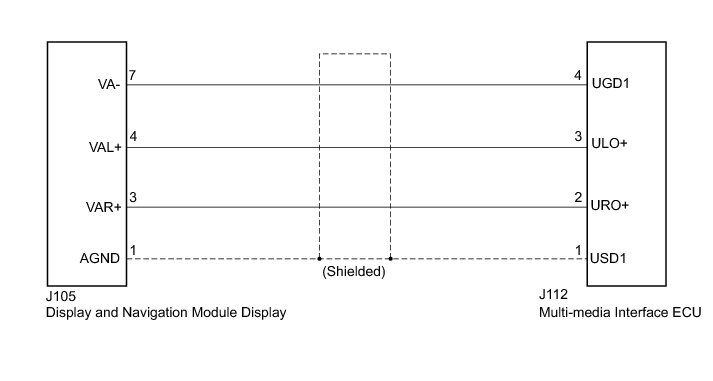

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR

(a) Disconnect the display and navigation module display connector and multi-media interface ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

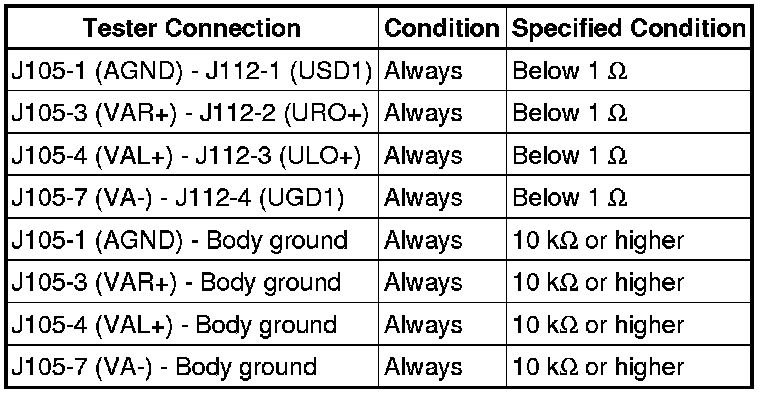

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
