Integration Control and Panel Assembly Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): Integration Control and Panel Assembly Power Source Circuit
- Integration Control and Panel Assembly Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the integration control and panel assembly.

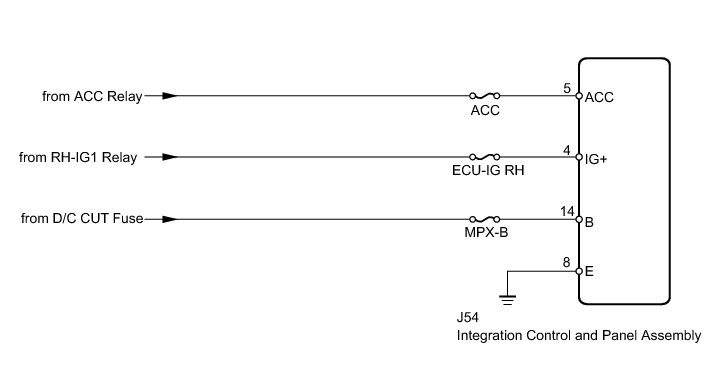

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY

(a) Disconnect the integration control and panel assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Measure the voltage according to the value(s) in the table below.

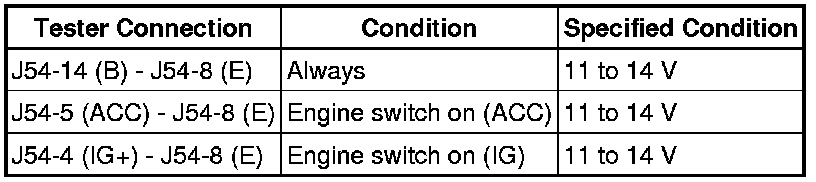

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
