Microphone Circuit between Microphone and Multi-display





AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): Microphone Circuit between Microphone and Multi-display
- Microphone Circuit between Microphone and Multi-display

DESCRIPTION

This circuit sends a microphone signal from the map light assembly (telephone microphone assembly) to the display and navigation module display.

It also supplies power from the display and navigation module display to the map light assembly (telephone microphone assembly).

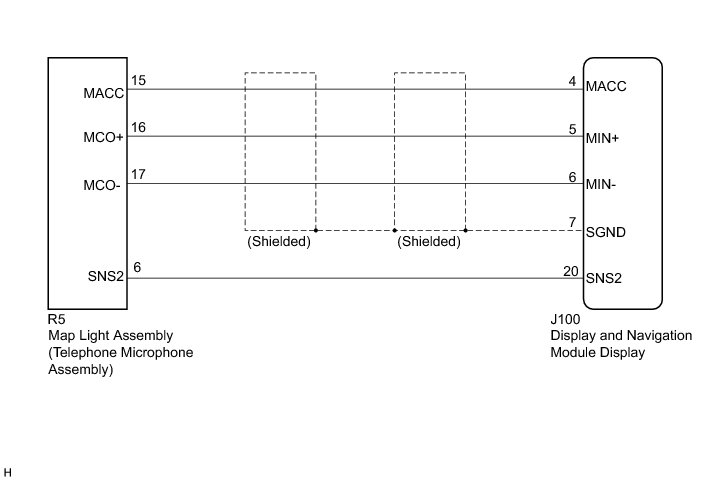

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION MODULE DISPLAY - MAP LIGHT ASSEMBLY)

(a) Disconnect the display and navigation module display connector.

(b) Disconnect the map light assembly connector.

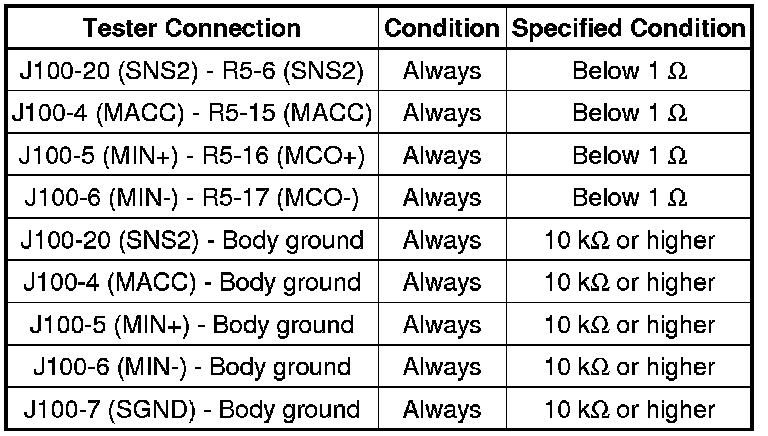

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. INSPECT DISPLAY AND NAVIGATION MODULE DISPLAY

(a) Reconnect the display and navigation module display connector.

(b) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal
OK -- Continue to next step.

3. INSPECT MAP LIGHT ASSEMBLY

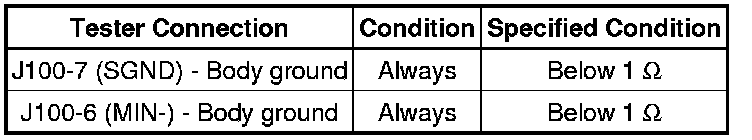

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NG -- REPLACE TELEPHONE MICROPHONE ASSEMBLY

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

4. REPLACE TELEPHONE MICROPHONE ASSEMBLY

(a) Replace the telephone microphone assembly Removal.

NOTICE:
The connector of the telephone microphone assembly is too small to be inspected. Therefore, after replacing the telephone microphone assembly, inspect it using the connector of the map light assembly.

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NG -- REPLACE MAP LIGHT ASSEMBLY Removal

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
